(Seho Kee)
1
(Wonjoong Kim)
1*
(Jaepil Jung)
1
(Minhyung Choi)
2
Copyright © 2018 The Korean Institute of Metals and Materials
Key words(Korean)
extrusion, through-silicon-via, electroplating, finite element method, thermal expansion coefficient
1. INTRODUCTION
The rapid development of microelectronic packaging and mobile device markets has produced
a growing demand for miniaturized, multi-functional and lightweight smartphones, smartwatches,
notebooks and related electronic gadgets [1,2]. Moore’s law states that the amount of data that can be stored in a microchip will
double every 18 months [3,4], and this is reflected in the tremendous efforts being made to increase chip density.
However, there is a practical limit to the data density per chip. To deal with this
limitation, in the last decade TSV technology has been proposed as a potential technology
solution [5-8]. TSV is a next-generation 3D chip packaging technique in which a through-hole structure
called a via is fabricated in the silicon die or chip. In this design, chips are stacked
vertically to several tens of microns in thickness. The through holes are filled with
a conductive material like copper for inter-connection between the stacked chips [9-11]. Products based on TSV technology such as DDR3 stacked memory, logic 3D SiP/SoC,
and MEMS/sensors are currently emerging, and processing technologies to support the
commercialization of TSV-related products are being continuously researched.
However, the TSV technology has some remaining challenges. At higher temperature,
delamination of wafer and the Cu fill in the via are serious reliability issues which
needs to be controlled [12-14]. At wafer thicknesses of less than 100 μm, bending of the Cu conductor and wafer
may occur during 3D stacking. This can result from differences in the coefficient
of thermal expansion (CTE) of the Cu fill and surrounding Si die, which can skew the
entire circuit board. Cu extrusion from the via in TSV also inevitably occurs when
fabrication is performed above 350 °C, such as in the back end of line (BEOL) process
[15-18]. This Cu extrusion can change the wiring of the electronic component or stress the
device.
Accordingly, efforts are being made to suppress such Cu extrusion. Several methods
are being examined to avoid extrusion, like using pre-chemical mechanical polishing
(CMP) during the BEOL process or installing devices in a stress-free location (keep
away zone, KAZ) based on the wafer stress distribution [12]. Tsai et al. added the pre-CMP process at 350 °C and successfully limited Cu extrusion to about
50 nm at 400 °C. However, additional extrusion occurred in a subsequent Cu line capping
layer deposition stage [14]. Other approaches for extrusion minimization include alloying (Cu-Ni, Cu-W) or the
use of nanomaterials like CNT and polymers in Cu [19-22]. However, alloying requires a number of organic additives like complexing agents
that may create an unstable plating bath and induce carbon deposits [23,24]. The dispersion of CNT in the Cu is rather tedious job and great attention is needed
with polymer filling, which may degrade over time. Most of these works have concentrated
on either the Cu fill or study of the extrusion kinetics with temperature [25-28]. At present, there is limited research on the via pitch and its effect on the Cu
extrusion. To address this issue, we have experimentally investigated Cu extrusion
behavior depending on the via pitch interval, and conducted simulation with finite
element analysis(FEA) techniques.
2. EXPERIMENTAL PROCEDURE
2.1 Cu electroplating of TSV

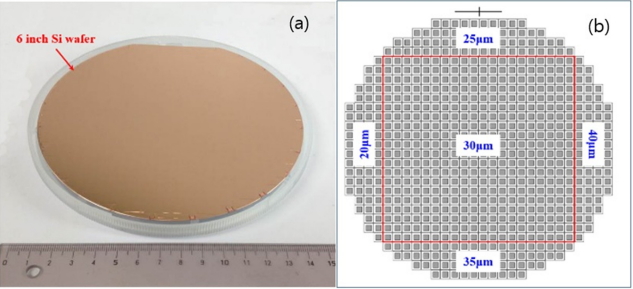

A 6 inch (152.4 mm) wafer containing several vias was cut into a 5× 5 mm2 section using a diamond saw to be filled with Cu by electroplating. A complete wafer
prepared by this process with various via pitches is shown in Fig. 1(a,b). The electrolyte for the TSV Cu fill process was composed of organic addit ives including
an accelerator, inhibitor and leveler. The plating cell was composed of an anode (platinum
sheet, 10 × 10 × 0.3 mm3) and a saturated calomel electrode (SCE) as a reference. The Si wafer was the cathode
substrate in the plating cell. The plating solution was stirred at 200 rpm using a
30 mm long stirrer for proper homogenization of the solution. The temperature of the
plating solution was maintained at room temperature and the distance between the electrodes

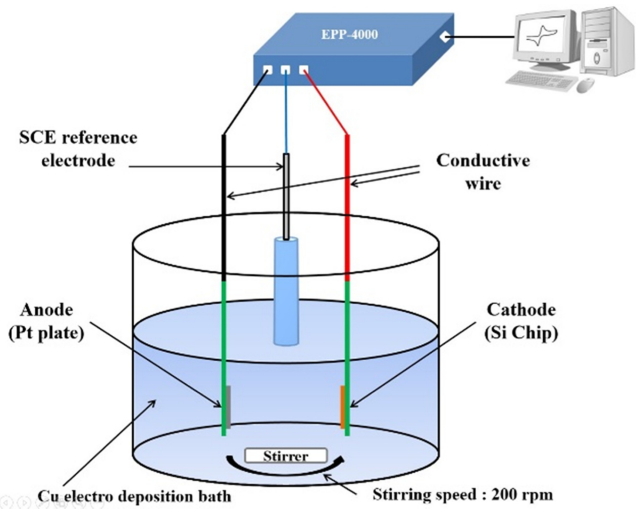

was 30 mm. A three electrode system used for the electroplating process, as shown
in Fig. 2. The plating was carried out using an electrochemical pulse plater (EPP-4000, Biologic
Science Instruments, France) as the current application and control device. In order
to have a defect-free and complete Cu fill in the TSV, the applied current was optimized
by using a periodic pulse-reverse (PPR) type waveform.
TSVs that were 10 μm of diameter and 20 μm of depth with various via pitches from
20 to 40 μm were filled using the PPR current waveform. Jung et al. have proposed the PPR current plating as an alternative for controlling the plating
defects created in the TSVs [19-21]. The PPR current waveform involves a cathodic pulse, anodic pulse and a current-off
time. The plating takes place during the cathodic pulse, and uneven projections due
to over plating at the via corners are minimized in the anodic pulse. The build-up
of a high concentration of copper ions during the anodic pulse at the via corners
vanishes during the current-off period [20].
In this study, the PPR plating waveform was optimized by varying the cathodic current
density (CCD). The anodic current density (ACD) of the PPR current waveform was fixed
at 15 mA/cm2, and then the plating current density was decreased from -20 to -5 mA/cm2.
2.2 Extrusion characterization
To observe the effect of via pitch on Cu extrusion behavior, specimens with pitches
of 20, 25, 30, 35 and 40 μm were filled with Cu using optimum plating conditions (CCD:
-5 mA/cm2, ACD: 15 mA/cm2). After plating, the top surfaces of the vias were mechanically polished and subjected
to annealing in vacuum at 450 °C for 30 min at a heating rate of 5 °C/min. The top-down
and crosssection surfaces of the Cu-filled TSVs were further polished using standard
metallographic techniques and a diamond suspension, to allow the examination of microstructures.
Field emission scanning electron microscopy (FE-SEM, Hitachi-S4300) was used to identify
the top-down surface morphology of the Cu-filled TSVs before and after annealing.
The extrusion heights were also measured from SEM images using ImageJ software. Atomic
force microscopy (AFM, XE-100) was also employed to study how varying pitch affected
extrusion in a more quantitative way. Surface topographies of all the vias were obtained
by AFM investigation and compared. Further, the extrusion heights were measured and
plotted for all via pitches and compared.
2.3 Analysis of Cu extrusion by FEA
FEA was performed using ANSYS 14.5, a commercial analysis program, in order to predict
the stress distribution and extrusion behavior at different via pitches. A blind TSV
with an SiO2 barrier layer thickness of 1 μm and a diameter and depth of 10 and 20 μm, respectively,
was modeled. The analytical modeling was performed using a 3D tetrahedral element.

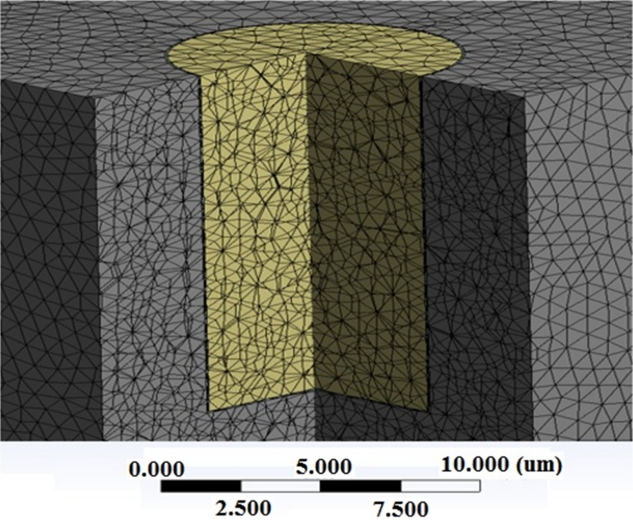

A model of the cross-section of the TSV developed for FEA is given in Fig. 3. The number of total elements and nodes used in the analysis are shown in Table 1. To improve the accuracy of the FEA, the SiO₂ insulating layer and Cu portion were
densely meshed. For boundary conditions, the bottom of the Si-wafer was confined in
the X, Y, and Z directions, while the sidewall was constrained only in the X and Y
directions.
3. RESULTS AND DISCUSSION
3.1 Effect of CCD on Cu filling

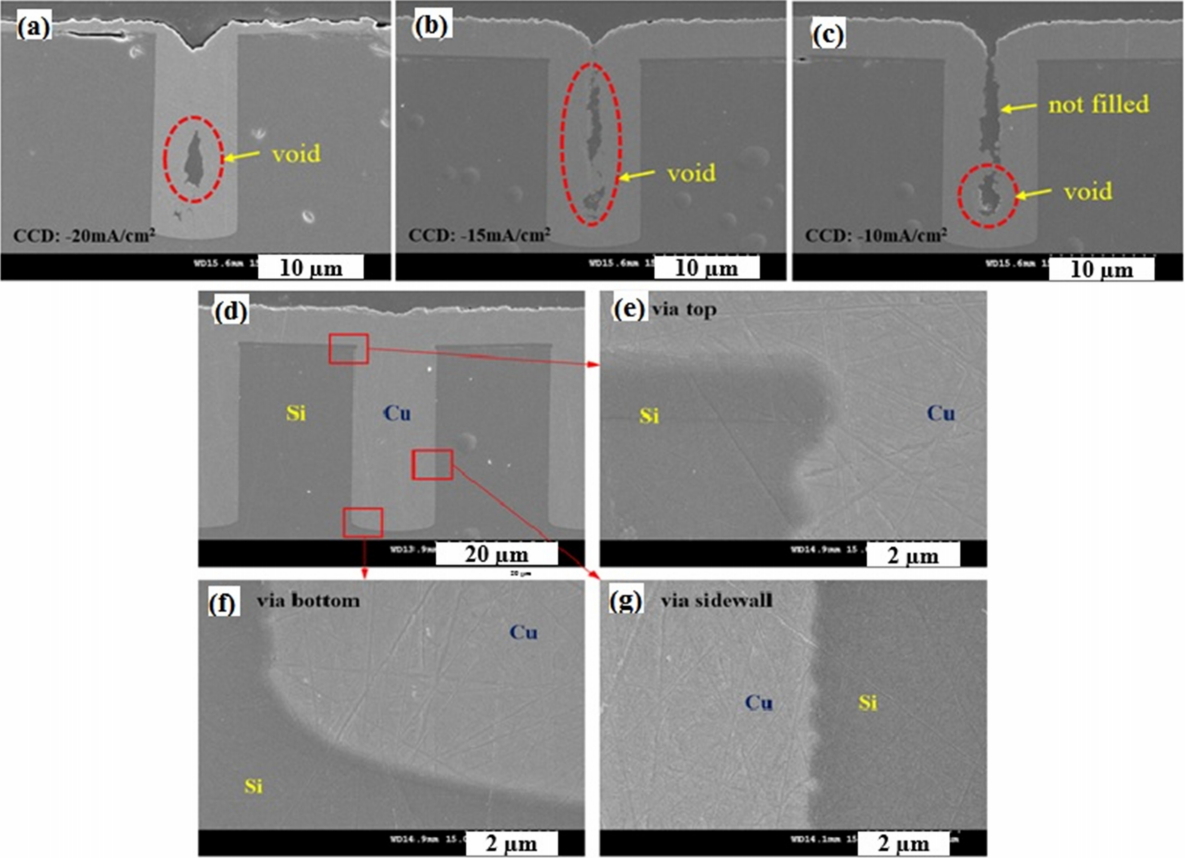

Figure 4 shows the cross-sectional SEM images of the Cu-filled TSVs plated at various CCDs
from -20 to -5 mA/cm2. It is seen that at a CCD of -20 mA/cm2, the inlet portion of the via was over-plated and then clogged quickly, creating
a big pore (Fig. 4(a)). With a further reduction in CCD to -15 and -10 mA/cm2, the pore changed to a seam (Fig. 4(b,c). This may be due to the high value of CCD. At a higher CCD, the population density
of Cu ions is increased, causing an enhanced deposition rate. However, increased CCD
may generate progressive hydrogen evolution resulting in the formation of pores and
voids.
A high flow rate of Cu ions toward the cathode increases the diffusion of Cu ions
drastically and the via entrance becomes clogged down [19,20]. This result is consistent with other studies where a high CCD increases the deposition
rate significantly. A completely filled via without any defects was achieved at a
CCD of -5 mA/cm2 (Fig. 4(d)). In this case no defects were found, such as peeling in the bonding surface between
the via and seed layer on the via top, via sidewall, or via bottom. This can be confirmed
from the top, bottom and sidewall interface images observed at high resolution (Fig. 4(e,g)). Therefore, the CCD of -5 mA/cm2 for 20 s (at constant ACD of 15 mA/cm2 for 2 s, and current off-time of 10 s) was chosen to fill via for further experiments.
The total filling time for all the TSVs was around 2 h.
3.2 Extrusion characterization
3.2.1 Scanning electron microscopy

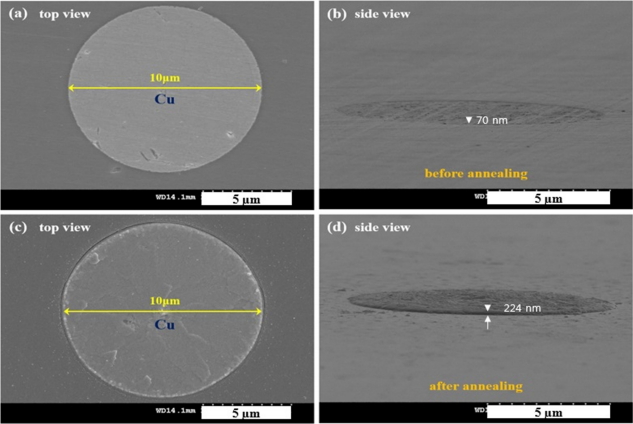

Figure 5(a,b) shows the top down surface images of the Cu-filled TSV before and after annealing.
It can be seen that the top down surface of Cu-filled TSV is irregular before annealing.
As analyzed by the ImageJ software, the top surface image of the Cu-filled TSV lies
70 nm deeper than the surface of the Si wafer (Fig. 5(b)). This phenomenon is thought to be due to the fact that the Si wafer has a higher
hardness, of about 10 GPa, as compared to electrodeposited Cu (≈1.4 GPa). As a consequence,
Cu is easily polished away during mechanical polishing.
Figure 5(c,d) show the top down surface images of Cu-filled TSV after annealing. The Cu-filled
TSV above the Si wafer looks like a step of a definite height, and the slightly extruded
shape over the Si wafer was confirmed after annealing. The Cu extrusion heights were
different for different via pitch. The extrusion height of the Cu-filled TSV above
the Si surface was measured to be ≈200 nm. The height of each extrusion was measured
five times, and the average value was taken. The extrusion heights results are given
in Table 2.
Although all the vias were filled completely before annealing, the extrusion heights
at different via pitches were still different. Table 2 shows the extrusion heights of the Cu-filled TSVs before and after annealing at various
pitches. It can be seen that the extruded heights of the Cu-filled TSVs lie in the
range of 178~200 nm after annealing. It was also observed that the extruded heights
fall gradually with increasing via pitch. The extrusion process becomes slightly slower,
i.e., (≈180 and ≈179 nm at 35 and 40 μm, respectively). This can be attributed to
stress interference between adjacent Si vias when the pitch of the Si vias becomes
narrow [31]. To study them in detail quantitatively, the extrusion heights were measured using
an AFM technique as discussed in the following sections.
3.2.2 Atomic force microscopy

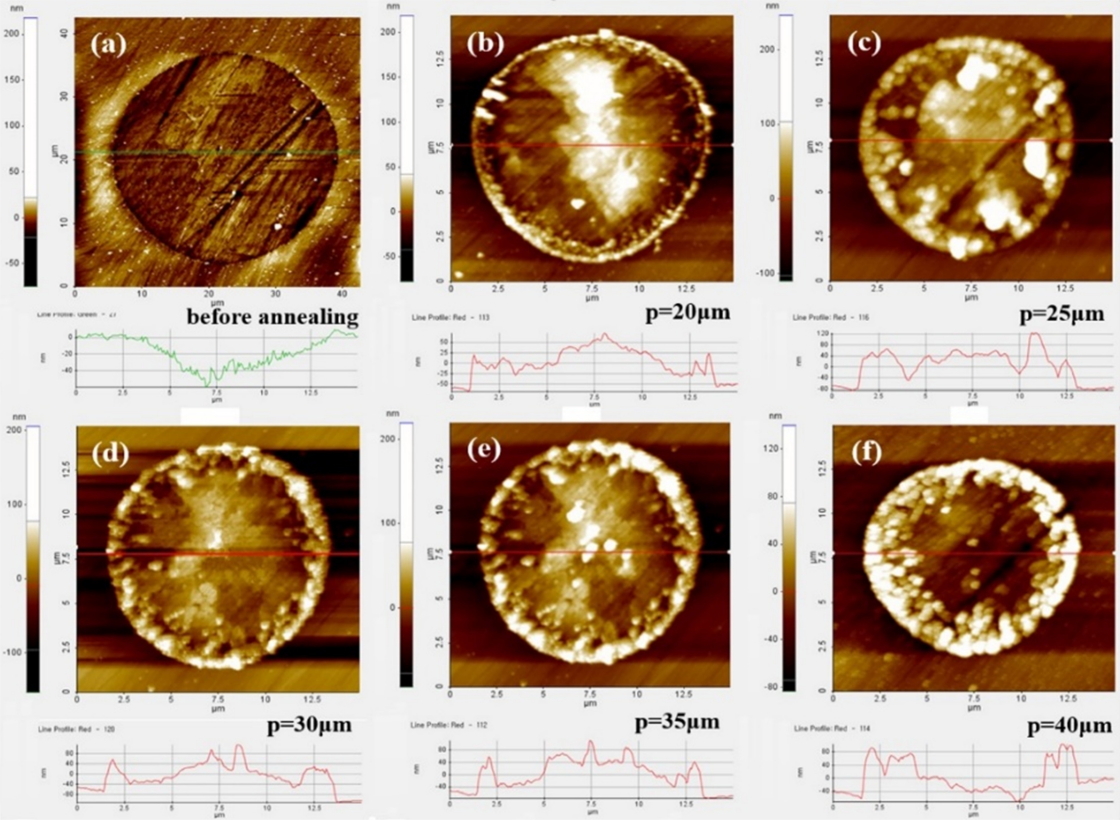

To produce a more accurate picture of the extrusion tendency at different via pitches,
AFM measurements were performed as shown in Fig. 6. It was found that before annealing, the morphology was rather planar, and the features
along the Z-axis increased rapidly after annealing. The final extrusion height (hl) can be defined as Eq. 1,
where, hm is the extrusion height before annealing and ha is the extrusion height after annealing. The AFM images demonstrate that Cu has been
extruded out of the via, and the extrusion heights are different for different via
pitches. It can be seen that the Cu extrusion heights fall gradually with increasing
via pitch up to 35 µm, and the heights become steady thereafter. For example, as the
pitch increased from 25 to 35 μm, the extrusion heights decreased in the order of
193.203, 183.518, and 180.413 nm. The extrusion height for p = 20 µm was a maximum
≈199.524 nm after annealing. As already discussed, this is probably due to the fact
that as the pitch increases, extrusion is less affected by the stress between adjacent
vias. Beyond via pitch p = 35 μm, the extrusion height did not change much (≈178.889
nm at p = 40 μm). This observation confirms that there is a via pitch beyond which
the extrusion becomes minimum.
As reported in a recent study by Roh et al., the Cu filling extrudes in a vertical direction [19]. After annealing of the Cu-filled TSV, thermal stresses build up due to the CTE
mismatch between the Cu filling and Si wafer. When the thermally-induced stress in
the Cu-filled TSV exceeds the elastic range of Cu, the Cu deforms plastically, and
this leads to Cu extrusion. Since the bottom portion of the via is confined by the
Si-wafer filled with Cu, height and stress can be calculated from the partially constrained
thermal deformation. In this study, the calculated height obtained in the absence
of adjacent vias was 144.7 nm. However, in a real silicon chip, there are several
adjacent vias. Therefore, the amount of thermal deformation must be greater than 144.7
nm, as shown in the result given in Table 2. The Cu extrusion heights at different pitch measured by AFM were also compared using
the finite element modeling results in Section 3.3.
3.3 Analysis of Cu extrusion by FEA
The experimentally obtained Cu extrusion heights at various via pitches were modeled
using the FEA technique. The model chosen for the TSV was similar in structure to
the actual TSV shape. The pitches of the Si vias were set to p = 20, 25, 30, 35, and

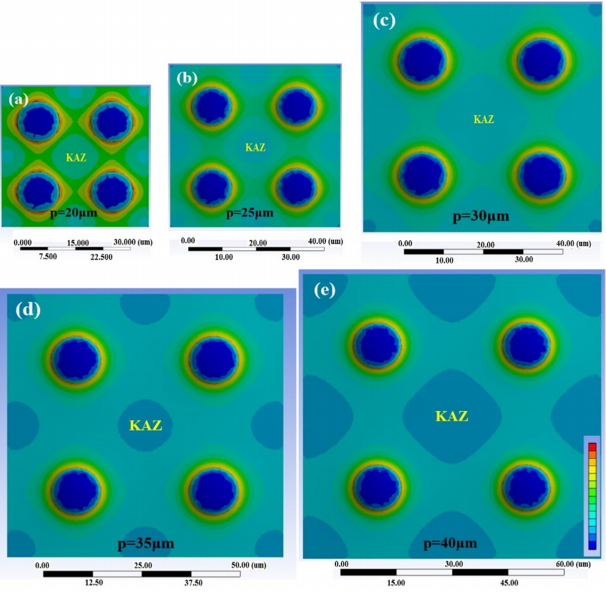

40 μm, respectively. Figure 7 shows the distribution of von-Mises stress seen from the top of the silicon wafer
at various via pitches (20, 25, 30, 35, and 40 μm). For pitch p = 40 μm, the von Mises
stress is at least ≈1407.2 MPa. As the pitch becomes larger, i.e., p = 25, 30, and
35 μm, the von-Mises stress gradually increases to 1428.8, 1466.5, and 1481.9 MPa,
respectively. Beyond p = 35 μm, there is slight change in the stress value, i.e.,
1484.5 MPa (for p = 40 μm). It was also observed that irrespective of via pitch, the
von-Mises stress was mainly concentrated at the interface between the Cu and the SiO2 layer. It should be noted that if the von-Mises stress is greater than the yield
stress of the filling material (Cu), permanent deformation may occur, causing fracture
and delamination of the silicon wafer and Cu.

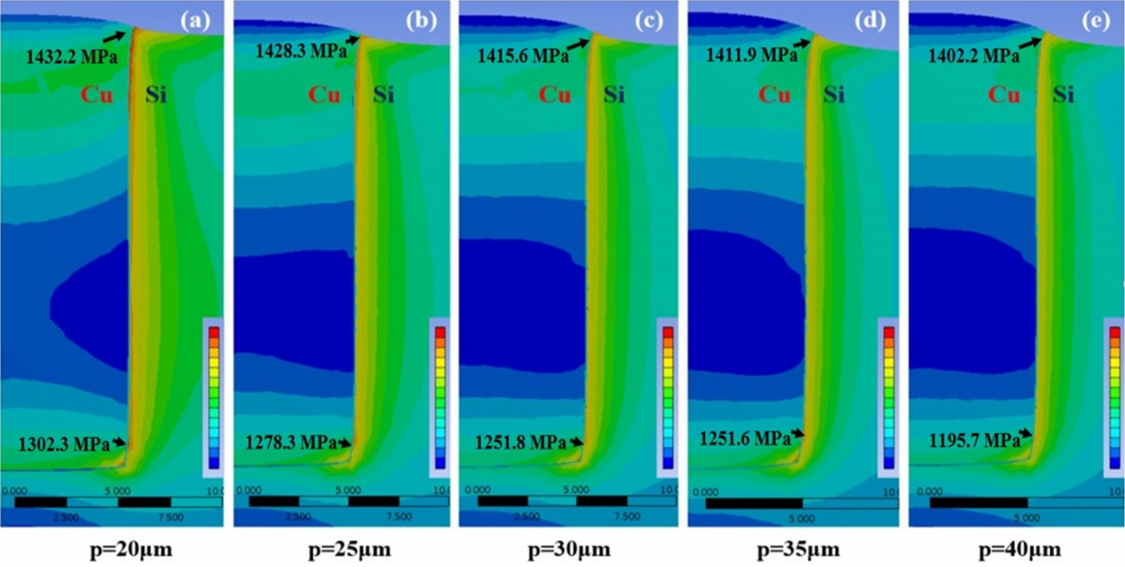

The increase in stress value with decreasing via pitch can be attributed to the reduced
area of the KAZ as shown in Fig. 7. KAZ is a region where stress interference between Si vias does not occur. In other
words, when the pitch increases, the KAZ area increases and stress distribution inside
the via decreases. However, there is a slight effect of stress distribution inside
the via at a pitch p = 40 μm (≈ 1445.8 MPa). This means a minimum pitch of 35 μm or
more is promising for minimizing thermal deformation due to annealing. Athikulwongse
et al. reported that to reduce the stress interference between TSVs, the KAZ region should
be as large as possible when designing the structure of the TSV [32].
From the preceding sections, it is clear that the von-Mises stresses are higher (≈1400
MPa) compared to the calculated stress (≈939.25 MPa) for a single via (without adjacent
vias), with the thermal deformation being 144.7 nm (Table 2). It can be inferred that the stress increases from 939 to 1484 MPa, a 58% increase,
when adjacent vias are present. Similarly, the thermal deformation increases from
144.7 to 199.79 nm, showing an increment of 28% in extrusion height. The resultant
stress field at a single TSV is the superposition of all the stress fields exerted
by the adjacent individual TSVs [31]. Therefore, the stress increases drastically due to the stress interference between
adjacent vias when the via pitch is reduced [31].
Figure 8 shows cross-sectional views of the simulated Cu deformations at various pitches.
As seen, the von-Mises stress distribution is highly concentrated near the via entrance
as well as at the bottom edge near the SiO2 layer. When the via pitch was increased from 20 to 40 μm, the stress decreased from
1432.2 to 1402.2 MPa near the entrance and from 1302.3 to 1195.7 MPa at the bottom
edge, respectively. In is inferred that the stress produced in the Cu-filled TSVs
is relaxed when there are fewer vias, meaning there is less probability of Cu extrusion.
The CTE of Cu is about 17 × 10-6 /°C which is 6 times greater than that of Si (2.8 × 10-6 /°C) and about 28 times greater than that of the SiO2 insulating layer (0.6 × 10-6 /°C). Therefore, the thermal stresses are high enough to deform Cu permanently in
the form of an extrusion and leave it deformed even after cooling. The stresses developed
in these two regions (the top and bottom corners) were four times greater than the
average stresses in the other regions. Moreover, the copper filling is confined in
the surrounding of silicon wafer, which has a very high yield stress of 7 GPa. The
yield stress of the electroplated Cu varies from 200 to 600 MPa, and is known to be
influenced by grain size, temperature as well as the thickness of the plated layer.
When the temperature rises during annealing, compressive stresses build up in the
radial direction and tensile stress is generated in the axial direction. It is clear
that the Cu is constrained along the radial and axial direction of the via as well
as at the bottom. Therefore, the plastic deformation of Cu occurs in the vertical
direction, causing Cu extrusion on the Si wafer surface [19,22].
Figure 9 shows both the experimental and simulation results for the Cu extrusion heights.
It can be observed that the extrusion height at 40 μm pitch is lowest ≈181.7 nm. As
the pitch increases, p = 20, 25, 30 and 35 μm, the extrusion height decreases to 199.79,
189.97, 185.13, and 182.87 nm, respectively. The extrusion height becomes steady at
and beyond p = 35 μm. In other words, the effect of via pitch becomes insignificant
when via pitch becomes double the original size. Therefore, a minimum pitch, p = 35
μm or more is recommended for the extrusion minimization. The results of Cu extrusion
by FEA differs slightly, there is a slight variation in extrusion height as compared
to experimental measurements. However, the general trend appears the same, suggesting
that the Cu extrusion height increases with decreasing TSV pitch.
4. CONCLUSIONS
In this study, changes in stress and the height of Cu extrusions in vias depending
on TSV pitch were examined, and the experimental results were compared with the results
of finite element analysis. The results are summarized as follows.
1. The electroplated Cu-filled TSVs were defect-free and filled with 100% efficiency
when the cathodic current density of the pulse periodic reverse current waveform was
lowered from -20 to -5 mA/cm2.
2. The extrusion heights of the Cu-filled TSVs decreased rapidly after annealing,
(i.e., 199.524, 193.203, 188.518, and 180.413 nm) when the via pitch was increased
from 20 to 35 μm, and became stable (≈178.889 nm) after further increase in pitch
to 40 μm.
The stress and thermal deformation experienced by a Cu-filled TSV (for a single via
when there are no adjacent vias) as calculated by numerical methods were 939.25 MPa
and 144.5 nm, respectively. However, when adjacent vias were present, the stress and
amount of thermal deformation increased due to stress interference from other vias.
The von Mises stress determined in the finite element analysis was in the order of
1484.5, 1481.9, 1466.5, 1428.7 and 1407.2 MPa as the via pitch increased to 20, 25,
30, 35, and 40 μm, respectively. The extrusion height in the finite element analysis
was 199.79 nm at a via pitch of 20 μm, which decreased to 189.97, 185.13, 182.87,
and 181.69 nm, respectively as the pitch increased to 25, 30, 35, and 40 μm due to
the stress relaxation at higher via pitches.
Acknowledgements
This work were supported by the National Research Foundation of Korea (NRF) grant
funded by the Korea government (MOE) (No. 2017R1D1A1B03030034) and the 2014 Research
Fund of the University of Seoul.
REFERENCES
Motoyoshi M., Proc. IEEE,97, 43 (2009)
Ko Y. K., Ko Y. H., Bang J. H., Lee C. W., J. Weld. Join,32, 19 (2014)
Kim D. G., Kim J. W., Ha S. S., Jung J. P., Shin Y. E., Moon J. H., Jung S. B., J.
Weld. Join,24, 172 (2006)
Lee S. M., Korean J. Met. Mater,54, 204 (2016)
Tummala R., Rymasewski J. E. J., Klopfenstein A. G., Microelectronics Packaging Handbook,284-286,
Chapman & Hall (1997)
Calata J. N., Bai J. G., Liu X., Wen S., Lu G. Q., IEEE Trans. Adv. Packag,28, 404
(2005)
Robert S. P., Proceedings of the IEEE,94, 1214 (2006)
Davis W. R., Wilson J., Mick S., Xu J., Hua H., Mineo C., Sule A. M., steer M., Franzon
P. D., Design & Test of Computers, IEEE,22, 498 (2005)
Zhang X., Chai T. C., Lau J. H., Selvanayagam C. S., Biswas K., Liu S., Pinjala D.,
Vath C. J., 59th Electronic Components and Technology Conference, 305-312, IEEE (2009)
Norman J. A. T., Perez M., Schulz S. E., Waechtler T., Microelectron. Eng,85, 2159
(2008)
Kee S. H., Kim W. J., Jung J. P., Surf. Coat. Tech,235, 778 (2013)
Tsai T. C., Tsao W. C., Lin W., Hsu C. L., Lin C. L., Hsu C. M., Lin J. F., Huang
C. C., Wu J. Y., Microelectron. Eng,92, 29 (2012)
Wolf I. E., Croes K., Pedreira O. V., Labie R., Redolfi A., Peer M. V. D., Nanstreels
K., Okoro C., Vandevelde B., Beyne E., Microelectron. Reliab,51, 1856 (2011)
Jung H. S., Lee M. K., Choa S. H., J. Microelectron. Packag. Soc,20, 65 (2013)
Frank T., Moreau S., Chappaz C., Leduc P., Arnaud L., Thuaire A., Chery E., Lorut
F., Anghel L., Poupon G., Microelectron. Reliab,53, 17 (2013)
Ko C. T., Chen K. N., Microelectron. Reliab,53, 7 (2013)
Cheng E. J., Shen Y. L., Microelectron. Reliab,52, 34 (2012)
Civale Y., Croes K., Miyanori Y., Velenis D., redolfi A., thangaraju S., ammel A.
V., Cherman V., Plas G. V. D., Cockburn A., Gravey V., Kumar N., Cao Z., Travaly Y.,
Tokei Z., Beyne E., Swinnen B., Microelectron. Eng,106, 155 (2013)
Roh M. H., Sharma A., Lee J. H., Jung J. P., Metall. Mater. Trans. A,46A, 2051 (2015)
Pradhan A. K., Das S., J. Alloy. Compd,590, 294 (2014)
Kee S. K., Oh T. S., Trans. Nonferrous Met. Soc,21, s68 (2011)
Jung H. S., Jang Y. J., Choa S. H., Jung J. P., Mater. Trans,56, 2034 (2015)
Asnavandi M., Ghorbani M., Kahram M., Surf. Coat. Tech,216, 207 (2013)
Lee S. M., Korean J. Met. Mater,54, 204 (2016)
Wang T., Chen S., Jiang D., Fu Y., Jeppson K., IEEE Electr. Device. L,33, 420 (2012)
Muhsan A. S., Ahmad F., Mohamed N. M., Raza M. R., J. Nanoeng. Nanomanuf,3, 248 (2013)
Horvath B., Kawakita J., Chikyow T., Jpn. J. Appl. Phys,53, 06JH01 (2014)
Ding Y. T., Yan Y. Y., Chen Q. W., Wang S. W., Chen X., Chen Y. Y., Sci. China Technol.
Sci,57, 1616 (2014)
Jung I. H., Kee S. H., Jung J. P., J. Microelectro. Packag. Soc,21, 23 (2014)
Kee S. H., Shin J. O., Jung I. H., Kim W. J., Jung J. P., J. Weld. Join,32, 37 (2014)
Che F. X., Putra W. N., Heryanto A., Trigg A., Zhang X., Gan C. L., IEEE Trans. Comp.
Packag. Manuf. Tech,3, 732 (2013)
Athikulwongse K., Chakraborty A., Yang J. S., Pan D. Z., Lim S. K., 25th IEEE/ACM
International Conference, 669-674, IEEE Computer Society (2010)
Figures and Tables
Fig. 1.
(a) Fabricated 6 inch Si wafer and (b) pitch difference.
Fig. 2.
The three electrode system plating cell.
Fig. 3.
Quarter symmetric FEM model used for the analysis of the Cu-filled TSV structure.
Fig. 4.
Cu filling tendency as a function of CCD: (a) -20, (b) -15, (c) -10, and (d) -5 mA/cm2 (ACD: 15 mA/cm2 for 2 s, current off-time of 10 s); Defect free Cu-filled TSV showing good bonding
to the surrounding substrate on (e) top, (f) bottom, and (g) sidewall.
Fig. 5.
Top-down and side view surface images of Cu-filled TSVs: (a) top view before annealing,
(b) side view before annealing, (c) top view after annealing, and (d) side view after
annealing (annealing condition: 30 min at 450 °C).
Fig. 6.
Cu extrusion height of the vias at different pitch after annealing: (a) as polished,
(b) 20, (c) 25, (d) 30, (e) 35, and (f) 40 μm.
Fig. 7.
Von-Mises stress distribution (top view) according to Si via pitch: (a) 20, (b) 25,
(c) 30, (d) 35, and (e) 40 μm.
Fig. 8.
Von-Mises stress distribution (cross-section view) according to Si via pitch: (a)
20, (b) 25, (c) 30, (d) 35, and (e) 40 μm.
Fig. 9.
Extrusion height at different via pitch.
Table 1.
Number of element and node used in modeling.
|
|
Via pitch (μm)
|
|
20
|
25
|
30
|
35
|
40
|
|
Node
|
1014610
|
1549232
|
2202994
|
2725972
|
3538362
|
|
Element
|
722356
|
1117131
|
1599782
|
1987337
|
2587974
|
Table 2.
Average Cu extrusion heights at various via pitches
|
Via pitch (µm)
|
Extrusion height (nm)
|
|
20
|
199.524
|
|
25
|
193.203
|
|
30
|
183.518
|
|
35
|
180.413
|
|
40
|
178.889
|
