(Chieon Park)
12
(Bongyoung Yoo)
2
(Joonkyun Lee)
*1
Copyright © 2018 The Korean Institute of Metals and Materials
Key words
ionic liquid, Sn plating, electroless plating, choline chloride, deep eutectic
1. INTRODUCTION
The presence of lead both in electronic components and in automotive electronics not
only induces skin disease and various types of cancer, but can also cause serious
global environmental pollution. Indeed, the Restriction of Hazardous Substances Directive
RoHS(Restriction of Hazardous Substances) originating from the European Union (EU)
prohibits the use of six harmful substances in electronic components, of which lead
is given as one example. As such, to replace lead in such components, the development
of environmentally friendly tin plating techniques is required. To date, electroless
tin plating technology has been applied to many industrial fields, including in the
production of semiconductor packaging, printed circuit boards, and other electrical
components. Thus, the development of this technique has received growing interest
in recent years.
Printed circuit boards (PCBs) and package substrates have become increasingly smaller
and denser. Accordingly, substitution plating such as electroless tin which can be
finely treated is widely used in the precision industry. Despite the many advantages
of displacement plating, low plating thicknesses (0.7-1.0 microns) were a problem.
Therefore, this study was studied to solve this problem.
Electroless plating refers to a reaction in which the oxidation of a reducing agent
and the reduction of metal ions occur simultaneously on the surface. In this process,
the electrolyte tends to contain a reducing agent, a complexing agent, a surfactant,
a pH adjuster, and a stabilizer [1,2]. Electroless tin plating can be carried out under either or acidic or alkaline conditions.
The use of alkaline conditions results in the formation of a Sn layer by disproportionation,
while under acidic conditions, the Sn is deposited by a displacement reaction that
forms a Cu-thiourea complex. Currently, the most well-known electroless tin plating
technique involves the displacement of Cu by Sn in a Snthiourea acidic bath. Indeed,
this technique has received significant attention due to its ability to form uniform
surfaces, and to achieve successful plating even at low temperatures [3,4].
Furthermore, thickening of the Sn plating has been proposed to improve solderability,
surface flatness, and pitch compatibility, while suppressing the growth of Sn whiskers.
In this context, the reliability of the whole product, uniform, dense, thick plating
is required, and the plating rate is increased, studies based on increasing the thickness
of the Sn plate during the immersion plating process are of particular importance
[6].
Indeed, to overcome the issues outlined above, particular attention has also been
directed to the use of ionic liquids, which are considered environmentally friendly
materials for next-generation electrolytes [7]. When compared with other organic solutions, ILs exhibit low toxicity and high dissolvability
for both organic and inorganic substances due to their high polarity. In addition,
ILs are non-volatile due to their essential lack of steam pressure. Furthermore, ILs
demonstrate high ion conductivities, broad electrochemical ranges, and high thermal
and chemical stabilities at high temperatures, thereby resulting in increased attention
for their application as green solvents [8,9].
The properties of ILs depend mainly on the size and structure of the anions and cations
composing the IL. Indeed, ILs are known as “Designer Solvents,” as their design can
be altered depending on the intended purpose, and so significant research into ILs
as replacement solvents and electrolytes for electrochemical processes is being carried
out actively in both research laboratories and in industry [10,11]. Due to their highly hydrophilic nature, ILs tend to absorb moisture readily from
their surroundings. This absorption of water thereby leads of a decrease in viscosity
and an increase in electrical conductivity, although the absorption of excess water
considerably reduces the electrochemical window [12]. In addition, the absorbed water molecules also induce the decomposition of ILs,
thereby leading to unwanted side reactions and corrosion of the connecting metal [13]. However, recent reports have suggested that the use of an electrolyte prepared
with the addition of a small amount of water to the IL has a beneficial effect on
the morphology of the plate [14]. Indeed, the corresponding reduction in viscosity of the IL and increase in both
electrical conductivity and current efficiency at relatively low temperatures through
the promotion of ionic dissociation are beneficial in the context of IL applicability
[15].
According to a recent review, when water was added to an IL prepared using ChCl-2Urea,
water bonded with the urea molecules rather than with ChCl. In addition, the dissociation
of water was suppressed by the strong hydrogen bonds present in this system, thereby
maintaining a wide electrochemical window. As reported, upon the addition of water
molecules to the ChCl-2Urea-based IL, urea is replaced with water molecules, which
in turn produces additional free Ch+ ions, thereby increasing the extent of ionic dissociation [15].
Thus, we herein investigated the applicability of an IL, synthesized using ChCl, urea,
and thiourea, as an environmentally friendly electrolyte for use in a tin plating
technique, as this IL is expected to exhibit a high ion conductivity and stable electrochemical
properties.
2. EXPEIMENTIAL
Materials
2.1
To suppress the hygroscopic properties of Choline chloride(Sigma-Aldrich, 98% pure),
a desiccator was employed for storage. Urea(Daejung, 98% pure), thiourea (Daejung,
96% pure), and dimethylthiourea (Sigma-Aldrich, 99% pure) were used without additional
pretreatment, where thiourea and dimethylthiourea were employed as a complexing agent
and a complexing agent derivative, respectively. In addition, malonic acid(Acros,
99% pure), oxalic acid(Acros, 99% pure), succinic acid(Acros, 99% pure), ethylene
glycol(Shinyo, 99% pure), ethylene alcohol(Duksan, 99.9% pure), propylene glycol (Sigma-Aldrich,
99.5% pure) and propyl alcohol (Sigma-Aldrich, 99.5% pure) were employed as additives.
Furthermore, tin chloride(Sigma-Aldrich, 96% pure), sodium phosphate (Sigma-Aldrich,
96% pure), and titanium chloride(Sigma-Aldrich, 12% pure TiCl3 basis) were also used as obtained, with the latter two reagents being employed as
reducing agents.
Preparation of deep eutectic-based IL
2.2
ChCl and urea (U) were mixed in a 1:2 molar ratio, then stirred at 200 rpm at 80°C
until the formation of the deep eutectic IL ChCl-U was complete. Using the same method,
ChCl and thiourea (TU) were employed in a 1:1 molar ratio to produce an additional
deep eutectic IL, i.e., ChCl-TU.
Characterization of the electrolyte
2.3
To measure the crystallization temperatures of these prepared ILs, they were each
placed in a beaker, heated to 80°C, then mixed by stirring at 200 rpm. Following the
complete dissolution of each powder, a chiller was used to gradually lower the temperature,
and the temperature at which crystals began to form was recorded. The Freezing point
is the average results of 5 points.
Viscosity was measured using a digital viscometer (Brookfield DV2T, U.S.A) equipped
with RV spindle no. 2, and the speed was regulated to ensure that the torque was maintained
between 90 and 100%. For ionic conductivity measurements, a Multi-Range Conductivity
Meter (Hanna HI8633, U.S.A) was employed. The open circuit potential (OCP) was measured
using an electrochemical impedance spectroscopy (EIS) Potentiostat (EG CS310, S. Korea),
with copper and platinum working electrodes, a Ag/AgCl reference electrode, and a
platinum wire counter electrode.
Characterization of the immersion Sn coatings
2.4
The electrolyte was prepared using the 1:1 ChCl-TU solution, tin chloride (12 g/L,
metal salt), thiourea(40 g/L, complexing agent), dimethylthiourea (40 g/L, complexing
agent derivative), sodium phosphate, and titanium chloride (reducing agents). Electroless
tin plating was then conducted at 70°C over 30 mins using a Hull Cell and a Cu cathode
was used pretreatment through degreasing, etching, and washing, and the effects of
plating time and the contents of water and the reducing agent on the final plating
thickness were examined.
The thickness of Sn coatings was measured by Energy dispersive X-ray spectroscopy
(XRF) (ISP 150WT, S. Korea)
Structure and morphology of Sn coatings were investigated by scanning electron microscope
(SEM) (SEC SNE4500M, S. Korea) respectively.
3. RESULT AND DISCUSSION
Freezing point of the ILs
3.1
The freezing points of the ILs prepared by mixing ChCl, urea, and thiourea at two
different molar ratios (i.e., 1:1 and 1:2) are outlined in Fig. 1. As indicated, the lowest freezing point of ChCl-U was recorded at 12°C for a 1:2
molar ratio, while that of ChCl-TU was 25°C for a 1:1 molar ratio, thereby suggesting
that these ILs are suitable for use as ambient temperature solvents. When considering
lowering the freezing point of these ILs, interactions between the urea molecules
and the Cl ions should be considered. Indeed, this coincides with the crystallographic
data obtained for the solid adduct [(CH3)3N+CH2CH2OH−] 2C2O42−·2(NH2)2CS, which indicates the presence of an extensive hydrogen bonding network between
the thiourea molecules and the oxalate anions [16].

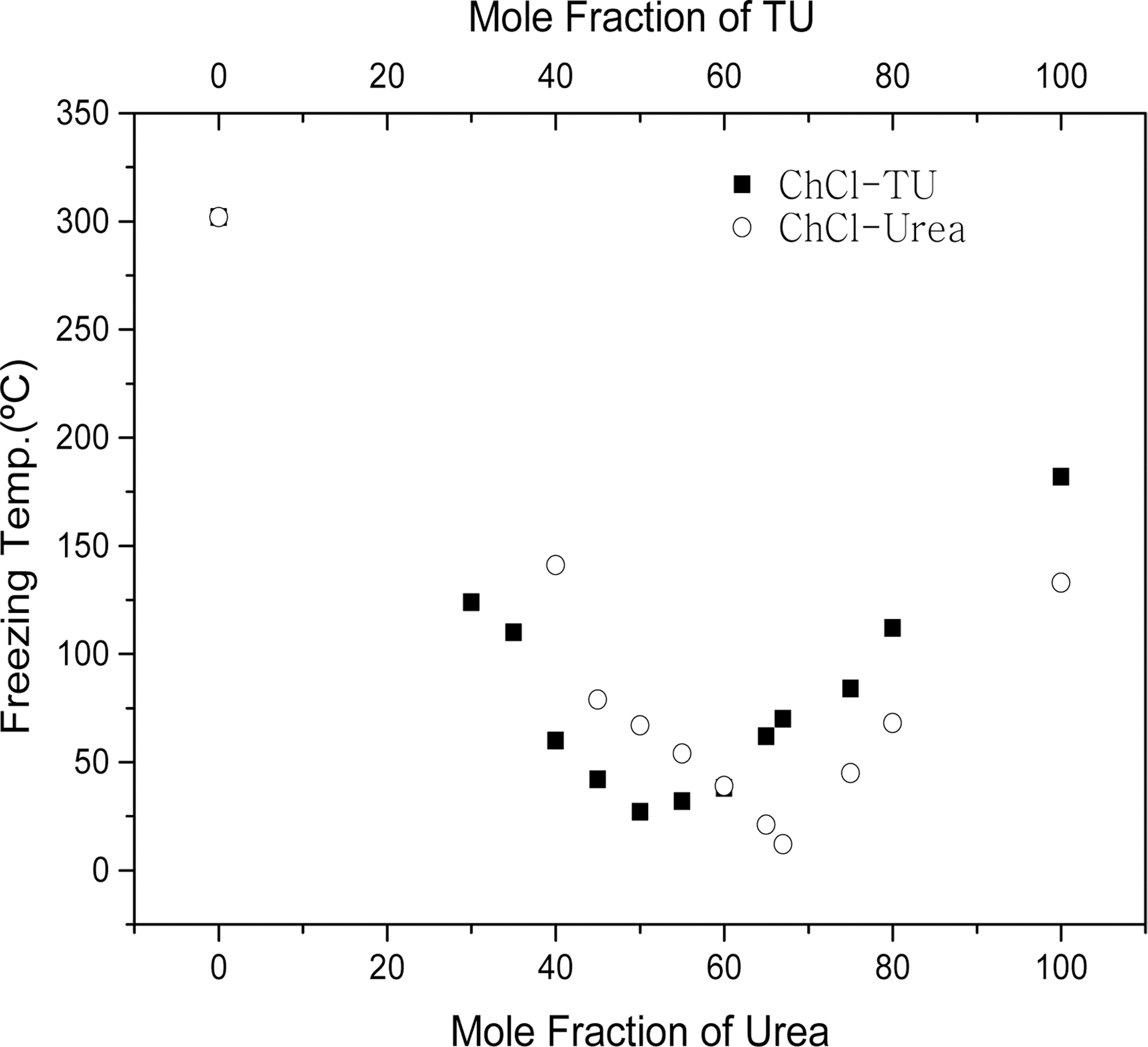

Fig. 1.
Freezing point of IL(ChCl-U) or IL(ChCl-TU) as a function of composition.
To determine the effect of additives on the freezing points of these ILs, ethylene
glycol, ethylene alcohol, propylene glycol, propyl alcohol, malonic acid, succinic
acid, or oxalic acid (0.5 mol in each case) was added to the IL, and the resulting
freezing points were measured and the results listed in Table 1.
Table 1.
Determination of the freezing point with 1: 2 ratio of choline chloride / urea and
1: 1 choline chloride / thiourea according to additives.
|
Additives
|
Freezing point Tf / °C
|
|
|
None additives
|
ChCl-U 12
|
ChCl-TU 25
|
|
Ethylene glycol, C2H6O2 |
5
|
10
|
|
Ethylene alcohol, C2H6O
|
10
|
22
|
|
Propylene glycol, C3H8C2 |
9
|
23
|
|
Propyl alcohol, C3H8O
|
11
|
25
|
|
Malonic acid, C3H4O4 |
5
|
12
|
|
Succinic acid, C4H6O4 |
9
|
20
|
|
Oxalic acid, C2H2O4 |
8
|
13
|
Characterization of the electrolyte
3.2
The conductivities and viscosities of the ILs containing 0.5 mol malonic acid, ethylene
glycol, or oxalic acid were also measured, and the results are shown in Fig. 2. Interestingly, the lowest viscosity (254 cP) and highest conductivity (2080 mS/cm)
were achieved in the presence of malonic acid. In addition, as shown in Fig. 2, when ionic bonds are formed, the correlation between viscosity (η) and conductivity
(σ) can be explained using the Stokes-Einstein equation and the Nernst-Einstein equation
as follows:
where D is the self-diffusion coefficient of the ion, k is the Boltzmann constant,
T is the temperature, c is a coefficient determined by the boundary conditions, r
is the Stokes radius of the ion, N is the Avogadro constant, and e is the charge of
an electron. In addition, α indicates the degree of dissociation, and the conductivity,
σ, is determined from the degree of dissociation and viscosity.

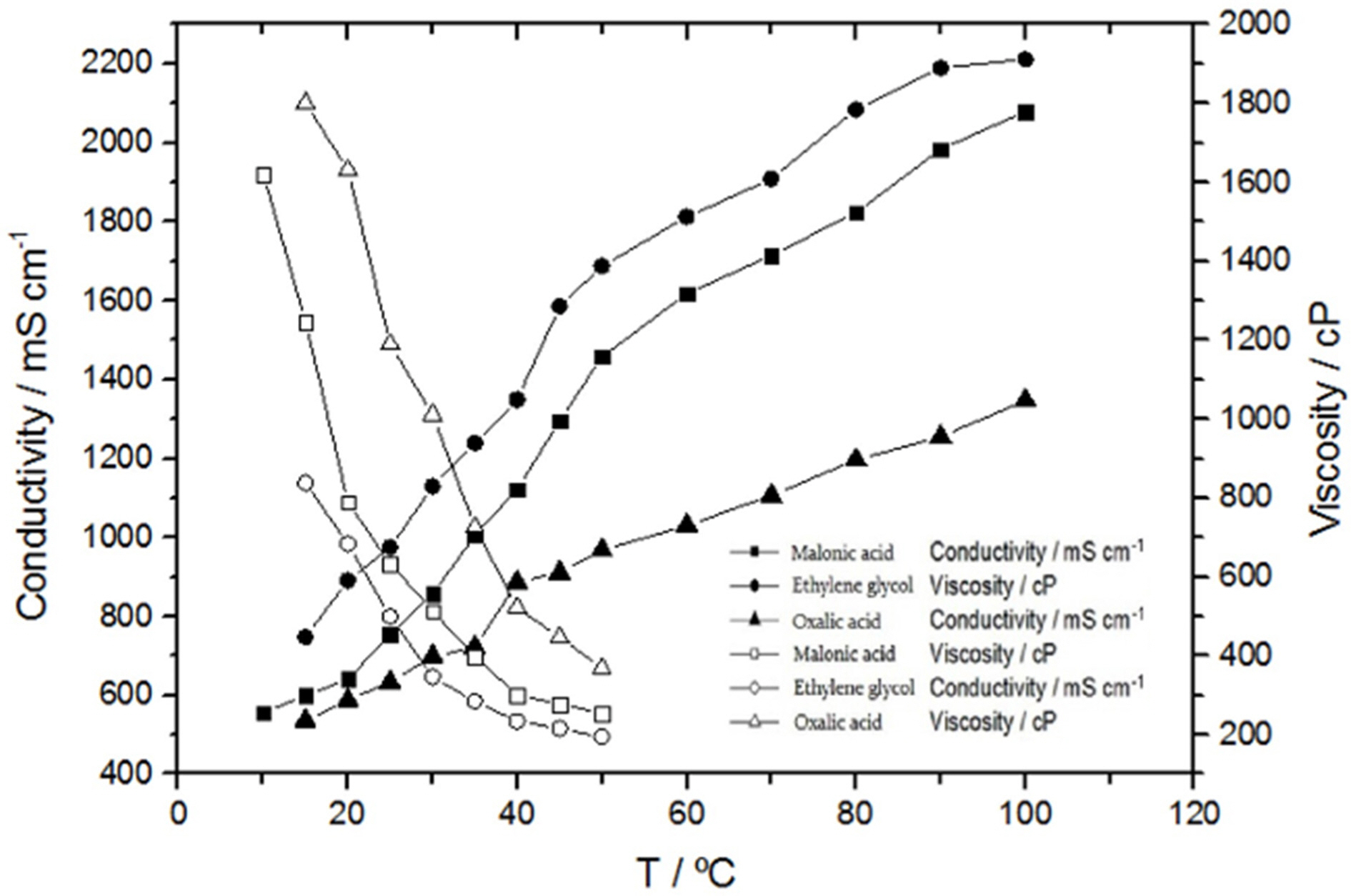

Fig. 2.
Conductivity and viscosity of additives in a IL(ChCl-TU) as a function of temperature.
Based on thermodynamic principles, no reaction occurs between Cu and Sn2+, and so the addition of complexing agents, such as thiourea, is necessary to decrease
the equilibrium electrode potential of Cu to a level lower than that of Sn. More specifically,
the presence of thiourea induces the formation of a Cu(Tu)4+ complex that has a low electrode potential, thereby allowing for a displacement reaction
to occur [6]. Following completion of the displacement reaction, Sn ions are reduced by reducing
agents, thereby allowing the electroless tin plating process to take place.
To analyze the feasibility of this technique, the OCP was measured to determine changes
in the electrode potential of Cu upon the addition of thiourea and ChCl. As indicated
in Fig. 3, an increase in the concentration of either thiourea or ChCl was effective in decreasing
the OCP of Cu. Similarly, the OCP changed upon the addition of dimethylthiourea as
a complexing agent derivative. Furthermore, an increase in the concentrations of thiourea
and dimethylthiourea resulted in decreased electrolyte OCP values. More specifically,
as indicated in Fig. 4, upon the addition of >40 g/L thiourea and dimethylthiourea, the OCP decreased significantly
after a period of relative stability.

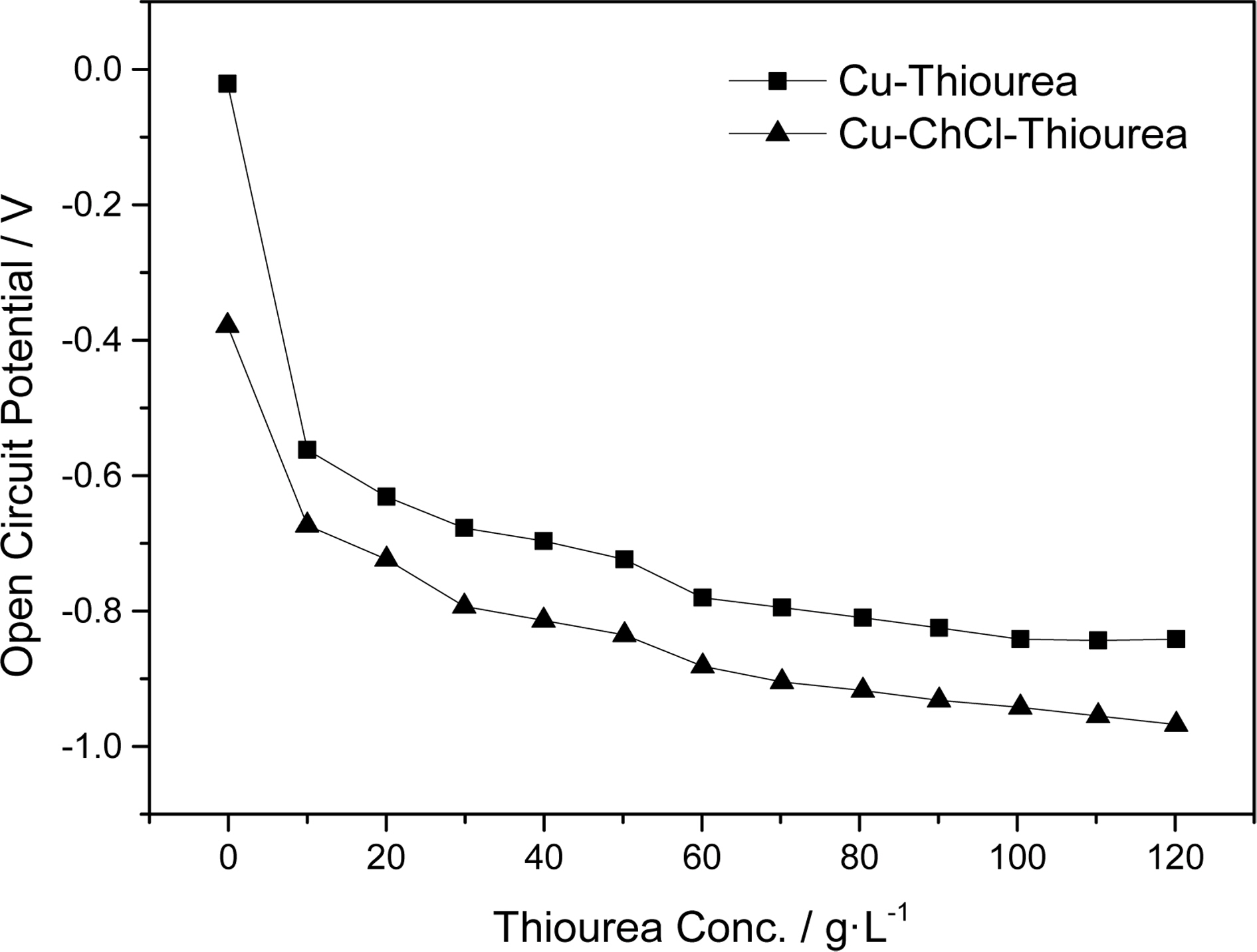

Fig. 3.
Effect of Thiourea concentration on OCP of Cu working electrode (square) and Thiourea
in ChCl solution (triangle), respectively, at room temperature.

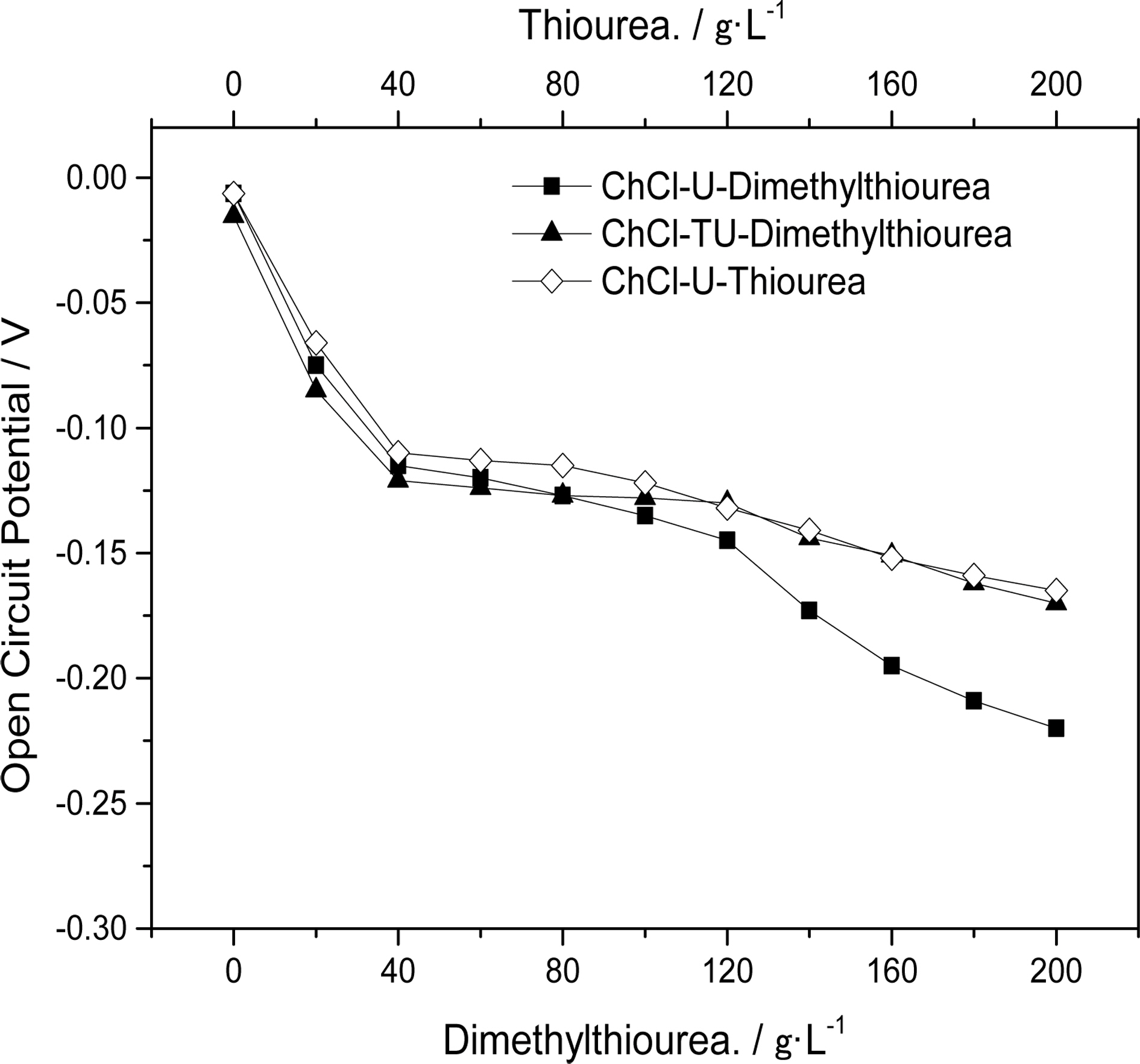

Fig. 4.
Effect of Dimethylthiourea and thiourea concentration on OCP of Dimethylthiourea in
ChCl-U solution (solid), Dimethylthiourea in ChCl-TU solution (triangle), Thiourea
in ChCl-U solution (diamond) respectively, at room temperature.
Characterization of the immersion Sn plating
3.3
Electroless tin plating was then performed using an electrolyte prepared using the
ChCl-TU IL, dimethylthiourea and thiourea as complexing agents, tin chloride as the
metallic salt, the desired reducing agents, and water, and the variations in plating
thickness were observed with respect to the plating time and the quantity of added
reducing agents and water.
As shown in Fig. 5, the plating thickness increased when both sodium phosphate and titanium chloride
were added, with the optimal thickness being observed with reducing agent concentrations
of 0.2 mol/dm3. However, at concentrations >0.3 mol/dm3, a significant reduction in the plating efficiency was observed. In addition, sodium
phosphate was found to be more effective than titanium chloride in increasing the
plating efficiency.

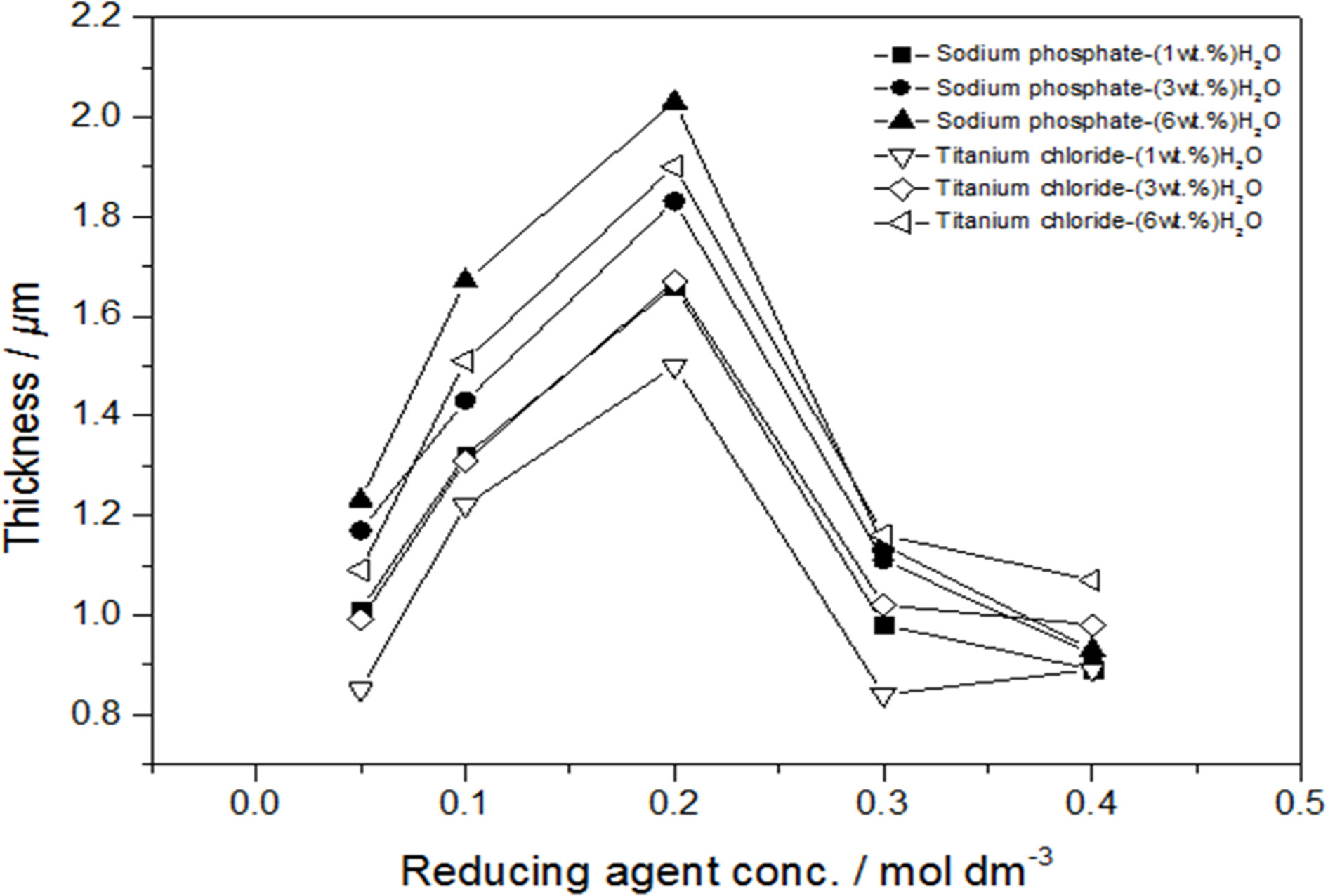

Fig. 5.
Effect of reducing agent concentration on the thickness of immersion Sn coatings at
water systems.
The addition of water was also found to have a positive influence on the plating efficiency,
with the addition of 6 wt% water giving a maximum plating thickness of 2.03 μm. This may be explained by the decreased viscosity and increased conductivity resulting
from the addition of water, which led to increased ionic dissociation [15]. In addition, as illustrated in Fig. 6, the thickness of the Sn coating generally exhibited a positive correlation with
increasing immersion time, with a gradual increase being observed after 30 min. As
such, the decrease in deposition rate after 30 min was attributed to reduced reactivity,
as with longer immersion times, there is a higher possibility that Sn2+ comes into contact with the Cu surface [17].
Fig. 6.
Effect of dipping times on the thickness of immersion Sn coatings.
The microscopic morphology of an Sn coating that had been plated using the IL electrolyte
at 70°C over 30 min is shown in Fig. 7. Interestingly, the surface morphology largely depended on the presence of both water
and reducing agents during the plating process. In addition, as shown in Figs. 7a, 7c, and 7e, the surface of the Sn coating was relatively uniform and non-porous when reducing
agents were employed.
Fig. 7.
Micrographs of the Sn coatings electroless plating from the ILs electrolytes containing
(a) IL(ChCl-TU), (b) IL(ChCl-TU)-water 6 wt%, (c) IL(ChCl-TU)-titanium chloride 0.2
mol/dm3, (d) IL(ChCl-TU)-titanium chloride 0.2 mol/dm3-water 6 wt%, (e) IL(ChCl-TU)-sodium phosphate 0.2 mol/dm3, (f) IL(ChCl-TU)-sodium phosphate 0.2 mol/dm3-water 6 wt% at 70°C, 30 min.
Furthermore, the presence of water resulted in increased plating thicknesses and enhanced
crystallinity in Sn, which could be attributed to the reduced viscosity of the IL
and the greater extent of ionic dissociation.
4. CONCLUSIONS
Following the formation of the deep eutectic IL using ChCl and thiourea, charge transport
in the IL was investigated, and this was also found to be affected by both the ionic
dissociation and viscosity. Finally, investigation of the freezing point of the malonic
acid-containing IL confirmed that the IL could exist as liquid at room temperature
due to hydrogen bonding between ChCl and thiourea.
It therefore appears that the presence of thiourea in the IL electrolyte results in
the equilibrium electrode potential of Cu becoming lower than that of Sn, consequently
enabling the desired electroless tin plating reaction to proceed. Further promotion
of the reaction was also observed upon the addition of dimethylthiourea. Our results
therefore indicated that a ChCl-urea/thiourea IL-based electrolyte containing malonic
acid, dimethylthiourea, sodium phosphate, and water can be employed as an environmentally
friendly electrolyte for the electroless tin plating process with a rapid plating
rate. Although further improvements are required to produce a reliable, high quality
plating layer, our results demonstrate the feasibility of using ILs in rapid electroless
tin plating to create thick and compact Sn layers.
ACKNOWLEDGEMENT
Part of the work was principally supported by the technology Innovation new development
program (S2311612) funded by the Ministry of SMEs and Startups.
REFERENCES
Lee C. H., Lee S. C., Kim J. J., Electrochem. Solid-State Lett.,8, C110 (2005)
Lee C. H., Kim A. R., Kim S. K., Koo H. C., Cho S. K., Kim J. J., Electrochem. Solid-State
Lett.,11, D18 (2008)
Lowenheim F. A., Macintosh R. M., Editors, Modern Electro plating,242John Wiley &
Sons Inc. (2000)
Arra M., Shangguan D., Xie D., Sundelio J., J. Electron. Mater.,33, 977 (2004)
Leidecker H., p., Electrical Failure of an Accelerator Pedal Position Sensor Caused
by a Tin Whisker and Discussion of Investigative Techniques Used for Whisker Detection,
Proc. 5th International Symposium on Tin Whisker, Maryland, University of Maryland,14
(2011)
Zhao J., Li N., Cui G., Zhao J., J. Electrochem. Soc.,153, C848 (2006)
Wasserscheid P., Keim W., Angew. Chem. Int. Ed.,39, 3772 (2000)
Dyson P. J., Transition Met. Chem.,27, 353 (2002)
Ispas A., Bund A., Electrochem. Soc. Inter. Spring.,23, 47 (2014)
Khupse N. D., Kumar A., Indian J. Chem.,49, 635 (2010)
Sun J., MacFarlane D. R., Forsyth M., Electrochim. Acta.,48, 1707 (2003)
Li W., Zhang Z., Han B., Hu S., Xie Y., Yang G., J. Phys. Chem. B.,111, 6452 (2007)
Endres F., Abedin S. Z. E., Phys. Chem. Chem. Phys.,8, 2101 (2006)
Abbott A. P., McKenzie K. J., Phys. Chem. Chem. Phys.,8, 4265 (2006)
Du C., Zhao B., Chen X. B., Birbilis N., Yang H., Sci. Rep.,6, 29225 (2016)
Saito S., Lee M., Wen W. Y., J. Am. Chem. Soc.,88, 5107 (1966)
Wang Y., He J., Wang W., Naotoshi M., Chen Z., J. Electrochem. Soc.,160, D295 (2013)
