(Rajesh Kumar Jyothi)
1
(Hae-Rim Kim)
3
(Joon Soo Kim)
2
(Kyeong-Woo Chung)
1
(Jin-Young Lee)
1*
Copyright © 2018 The Korean Institute of Metals and Materials
Key words(Korean)
light rare earth elements, chloride solutions, extraction, separation, Cyanex® 272
1. INTRODUCTION
Rare earth (RE) elements have similar chemical properties, making them difficult to
separate from each other. REs are utilized in clean energy, advanced electronics [1,2] and environmental technology applications [3]. REs such as dysprosium, neodymium, terbium and yttrium are the most important elements
for clean energy technologies (including wind turbines, electric vehicles, fluorescent
lighting, and photovoltaic cells). The global reserves of REs are in China (38%, 36
Mt), the Former Soviet Union (19%, 19 Mt), the USA (22%, 22 Mt), Australia (5%, 5.4
Mt), India (3%, 3 Mt), and other countries worldwide (22%, 22 Mt). China produced
97% of the world's rare earth oxides (REOs) in 2009, followed by India (2.1%), Brazil
(0.5%), and Malaysia (0.3%) [4]
The literature reports that few attempts have been made to develop light rare earth
(LRE) processing and separation. Mainly phosphorus-based extractants, 2-ethylhexyl
phosphonic acid mono-2-ethyl hexyl ester (HEHEHP, Daihachi Chemical), di-2-ethylhexyl
phosphoric acid (D2EHPA) and bis(2,4,4-trimethylpentyl)phosphinic acid Cyanex® 272 (from Solvay) have been utilized for LRE processing. Recently studies have been
reported of LRE separation using continuous liquid-liquid extraction (CLLE) with HEHEHP)
extractants, and lactic acid added to the feed aqueous. Adding lactic acid increased
Pr and Nd extraction efficiencies from 22% to 92% and 30% to 96% respectively [5]. Another study determined the separation possibilities of heavy metals and LRE’s
from phosphoric acid solutions using an acidic organophosphorus reagent, Talcher organo
phosphorus solvent (TOPS 99) which is more effective at low acidities [6].
A work has been done on saponification of Cyanex® 272 to minimize lanthanum co-extraction and it was found that 50% saponification
(replacing the H+ on the organic with Na+) could suppress La extraction. A McCabe–Thiele
diagram was generated with 2 mol/L Cyanex® 272 in Escaid® 110 (Exxon) diluent. It predicted that at an A/O ratio of 2, three extraction stages
are required for the maximum Pr and Nd extraction. A counter-current extraction (CCE)
study using 2 mol/L Cyanex® 272 (50% saponified) gave results of 77 mg/L La, 230 mg/L Pr and 657 mg/L Nd in the
loaded organic. The co-extracted lanthanum was scrubbed off the loaded organic using
a Nd solution (780 mg/L Nd, pH 0.5) The scrubbed organic, now holding only Pr and
Nd, was stripped with 1 mol/L HCl [8].
In another study, a 10% saponified Cyanex® 272 (1 mol/L) in Escaid® 110 single system as well as a mixed system, were tested with the addition of either
Versatic-10 or tri-n-butyl phosphate (TBP). Best results were obtained using 1 mol/L
Cyanex® 272 (10% saponified) mixed with 0.5 mol/L TBP. With this mixture, the produced loaded
organic contained 300.5 mg/L Nd, 95.3 mg/L Pr but only 16.2 mg/L La. The organic was
well stripped by 1 mol/L HCl [9].
The diluent effect on rare earths extraction was studied a long time ago (1976), using
methyl-n-diheptyl amine dissolved in various diluents such as mesitylene, p-xylene,
toluene, benzene and nitro-benzene [10]. The highest separation coefficient 84 calculated in benzene diluent in between
cerium and lutetium; whereas, cerium between praseodymium, separation coefficient
was 2.3 and cerium and neodymium, separation coefficient was 4.6 reported in benzene
diluent. This old report disclosed that solvation energy plays a key role in rare
earths extraction and separation [10]. Another more recent attempt (2012) of rare earths extraction, from the behavior
of chloride solutions in various diluents, was reported using N,N,N′,N′-tetrabutyl-3-oxy-glutaramide
(TBDGA) as an extractant system [11]. The extraction efficiency of rare earths followed the order: toluene < n-octane
< CCl4< CHCl3. All the extraction reactions were exothermic by nature. Solvent extraction of RARE
EARTHS (Pr & Na) from chloride solutions was developed by L1 × 63 of an extractant
system [12].
The literature survey led to the further investigation of a viable extractant system
for LRE processing. The present study focuses on the effect of the nature of the diluent
on extraction, as well as on the separation of lanthanum, cerium, praseodymium and
neodymium from each other.
2. EXPERIMENTAL
2.1 Apparatus and reagents
A master synthetic leach liquor was used here, prepared by dissolving LRE oxides in
hydrochloric acid solutions. In every experiment, after pH adjustment with NaOH solution,
the adjusted feed solution was separately analyzed. The LRE concentrations on the
loaded organic were calculated by mass balance using feed and raffinate assays. The
average of all the feed assays was: La-125 ± 5; Ce-21 ± 2; Pr-27 ± 2, and Nd-72 ±
2 mg/L.
For the LRE analysis, an inductively coupled plasma optimal emission spectrometer
(ICP-OES, Thermo Scientific, USA, model iCAP 6000 Series) was used. An Orion Star
A215 pH/conductivity meter was used for the pH measurements. A shaking incubator (model:
SI-300/300R/600/600R) was used for the liquid-liquid extractions. The commercial-grade
Cyanex® 272 was supplied by Cytec, Canada and used as received. It was diluted to the desired
concentration in the three aromatic diluents (GR Grade), benzene, toluene and xylene
that were investigated. The diluents were obtained from Aldrich Chemicals. All other
reagents used were of analytical reagent grade.
2.2 Liquid-Liquid-Extraction procedure
Equal volumes of the organic mixture being tested and a chloride aqueous phase containing
four LRE’s (La, Ce, Pr, and Nd) were shaken in a separatory funnel mounted in a shaking
incubator. The set-point temperature was 25 ± 1 ℃ and the shaking speed was 250 rpm.
Except for the extraction kinetics experiment, the extraction time was set to 10 min.
Separation time after shaking was 30 sec. The feed and raffinate solutions were analysed
for LRE content by ICP-OES. The loaded organic LRE concentration was calculated by
mass balance.
2.3 Formulas
where D = Distribution ratio (concentration of the metal in organic phase / concentration
in aqueous phase)
where, DM1 = Distribution ratio of metal 1 and DM2 = Distribution ratio of metal 2
3. RESULTS AND DISCUSSION
3.1 Kinetic studies
Kinetic studies are needed to determine the test conditions for equilibrium studies.
Metal extraction processes are governed by the mass transfer and diffusion rates.
The very fast kinetics of extraction allows the use of contactors which have retention
times on the order of seconds. A series of kinetics tests were conducted under standard
conditions (A/O = 1, 25℃) and the initial pH condition of the aqueous feed solutions,

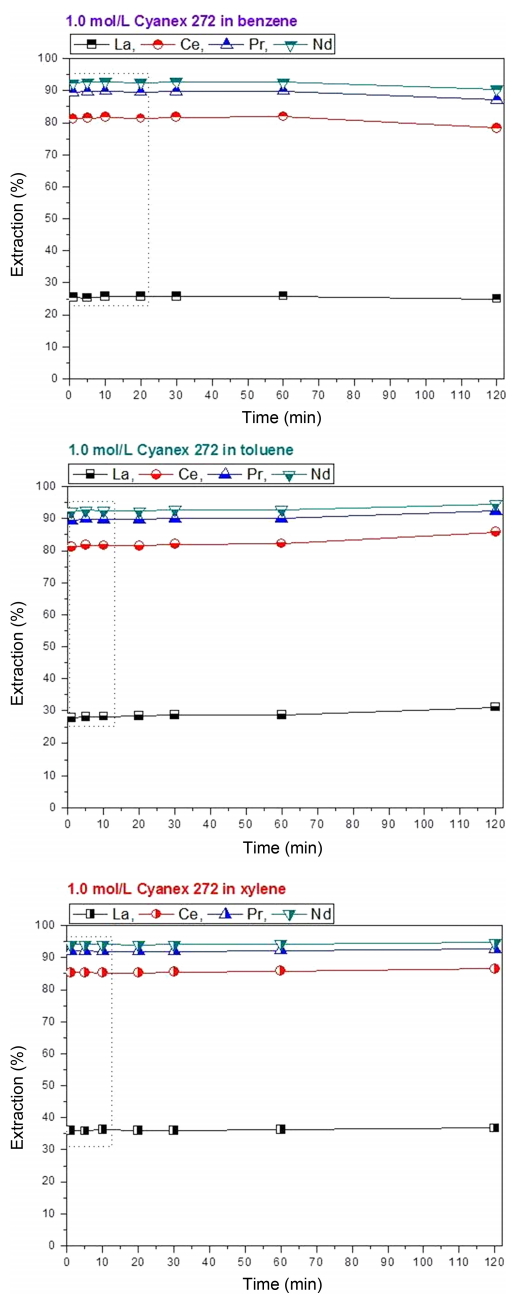

5.6 ± 0.1. Samples were taken at different contact times. The obtained experimental
data are presented in Figure 1. From the figure, it is clear that the extraction of all four LRE’s reached equilibrium
quickly in all three diluent systems. Therefore, in all of the subsequent experiments,
extraction time was set to 10 min.
3.2 The Influence of pH
The effect of pH in the range from 1 to 5.6 ± 0.1 was studied in tests using 0.7 mol/L
Cyanex® 272 dissolved in the three diluents, benzene, toluene or xylene. All contacts were
at a phase ratio (O/A) of 1 at 25 oC. The LRE synthetic solution feed analysis was
(in mg/L): Ce = 26, La = 126, Pr = 27, and Nd = 66.
The obtained results are presented in Figure 2. The four LRE’s are adjacent in the lanthanide series in terms of atomic numbers
from 57 for La to 58 for Ce, 59 for Pr and 60 for Nd. The extraction efficiency of
the four LRE’s followed the order from heaviest (Nd) to lightest (La). Extraction
was unsatisfactory at pH’s below 2.0 and it was concluded that mid-range pH values
from 3 to 5.6 (equilibrium pH 2.6 ± 0.2) gave the best extractions of the LRE’s in
all three diluent systems.
3.3 Effect of the extractant concentration

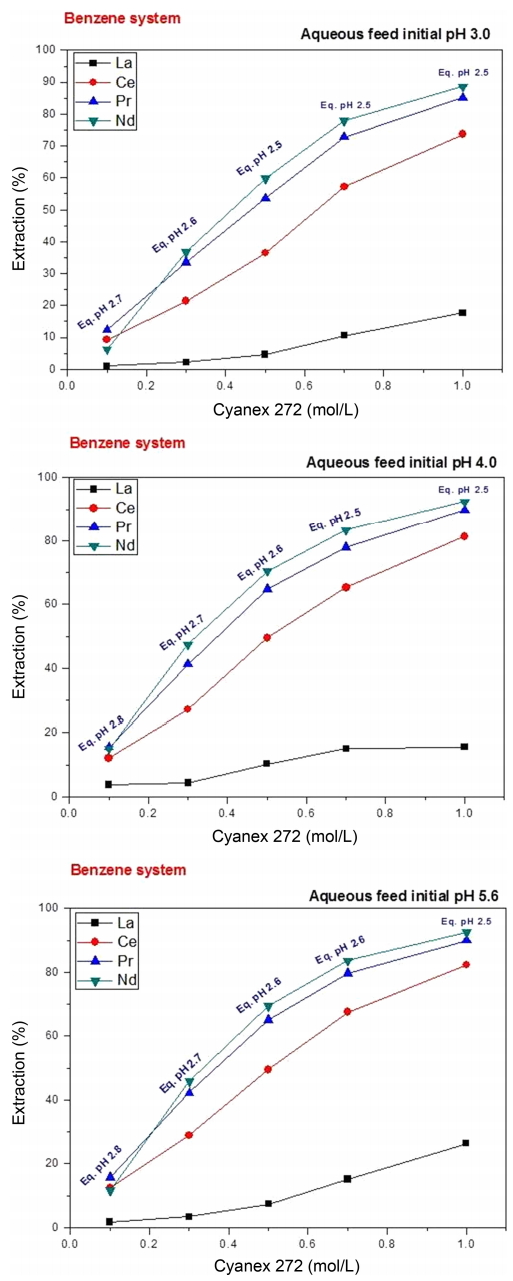

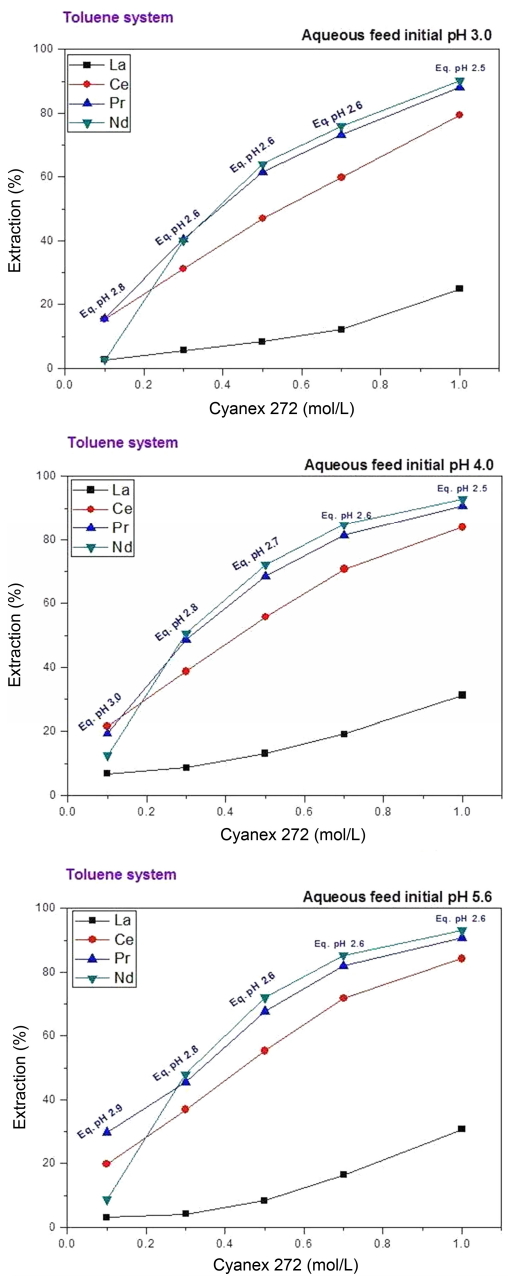

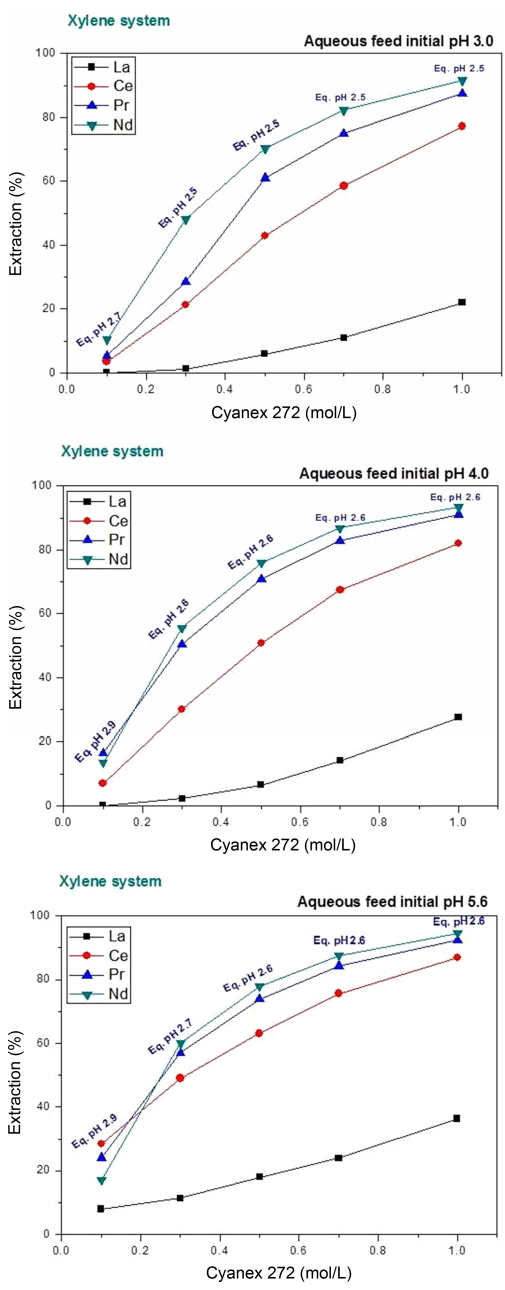

The extractant concentration was varied in the range between 0.01 and 1.0 mol/L (Cyanex® 272) while other parameters were kept the same, as in the work at 0.7 mol/L extractant.
The feed pH range studied was 3 to 5.6. The percent extracted increased with increasing
extractant concentration. In the case of lanthanum, even 1.0 mol/L of the extractant
was not able to extract more than 30% (Figure 2 to 4).
3.4 Studies of separation factors (SFs)
The potential for separation of the LRE’s is presented in Tables 1 to Table 2.3. As noted, extraction of LRE’s was generally poor below pH 2. Table 1 presents the benzene diluent system. Separation of Nd from La showed the highest
calculated SF of 65.7 at an initial pH of 4 (Eq. pH 2.5) with 1.0 mol/L Cyanex® 272. This is expected because Nd is the most strongly extracted and La is the most
weakly extracted. Separation factors for Nd/ Pr and Nd/Ce were around 2.6-2.8 and
1.3-1.4 respectively, again following the order of elements preferred by the extractant.
In the toluene system, the separation factors were about the same as in the benzene
system. The xylene system produced the highest Nd/La separations, but in a pH range
where overall extraction was not as good. It was also found that the highest SFs were
those of the xylene system (up to SF with a DNd / DLa ratio of 192 at lower pH conditions (not shown here)), followed by benzene (SF with
a DNd / DLa ratio of 65.6) and toluene (SF with a DNd / DLa ratio of 30.3). The SF data indicate that the studied benzene and xylene systems
are feasible in the pH range of 3 to 5.6; whereas the toluene system at pH 2 is feasible,
but under this condition the extraction efficiencies were very low.
3.5 Possible extraction mechanism
Based on the influence of pH and extractant concentration on LRE extraction the processing
mechanism can be predicted. The reported literature indicates that the ionexchange
mechanism was observed in many cases [13,14]. Similar extraction behavior was observed in the present study and the following
extraction reaction is proposed:
Here, LRE = Light rare earths such as Lanthanum, Cerium, Praseodymium and Neodymium,
H2A2 = Cyanex 272, n (or) m = Numerical numbers such as 1, 2, 3….
3.6 Loading capacity of the extractant (Cyanex® 272)
The loading capacity of the extractant is significant from industrial and commercial
standpoints. In the present study, 0.7 mol/L of Cyanex® 272 was dissolved in different diluents, in this case benzene, toluene and xylene.
They were tested to assess the maximum loading capacity by adding them simultaneously
in an aqueous feed to an identical organic phase, up to the metal saturation point.

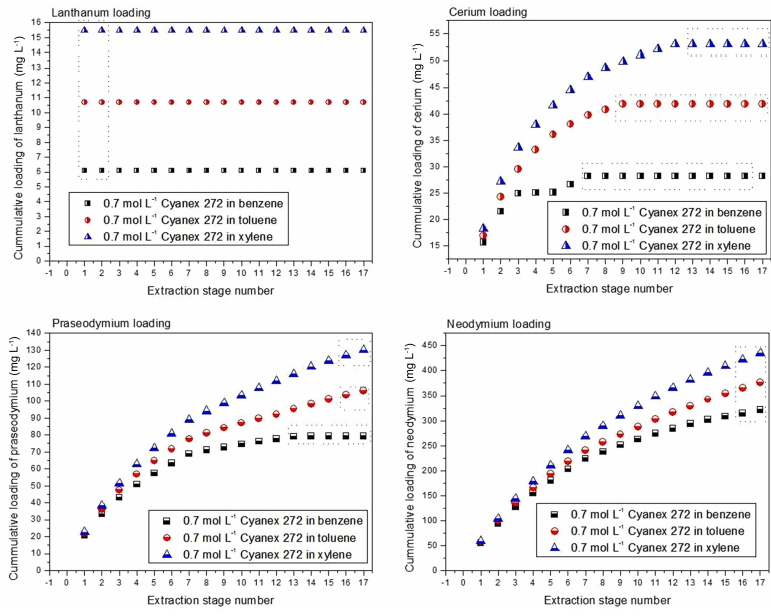

All three systems, up to fifteen extraction stages (one-by-one), were not saturated
by the maximum loading of the LRE’s. The total extraction stages tested individually
for up to seventeen stages (Fig. 5). Overall, the order of loading capacity extraction efficiency was as follows: toluene
> xylene > benzene.
3.7 Effect of the phase ratio on the extraction process for light rare earth elements

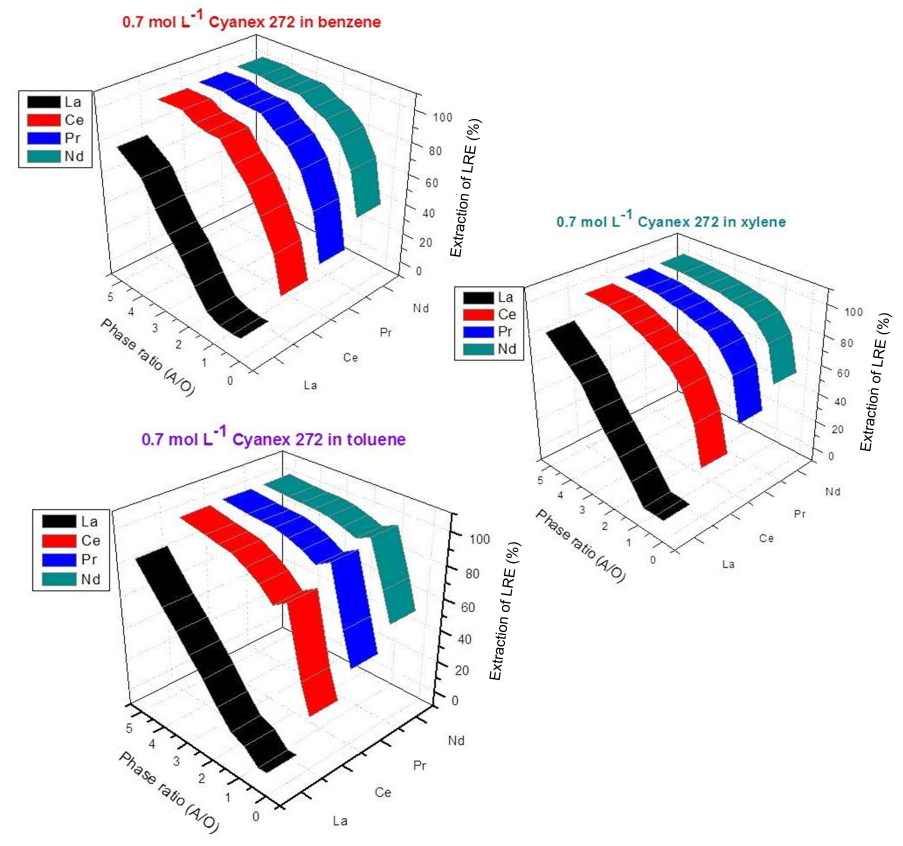

Various phase ratios were changed and tested to assess the LRE extraction and potential
for separation using Cyanex® 272 as an extractant system, and the three different diluents of benzene, toluene
and xylene were utilized to determine the best organic phase media. The aqueous versus
organic phases were varied from 0.2 to 5.0 at a temperature of 25 ℃, and the initial
pH condition was 5.6 ± 0.1 (the equilibrium pH was 2.5 ± 0.1), with 0.7mol/L of Cyanex® 272 dissolved individually in the three different diluents of benzene, toluene and
xylene to determine the phase ratio effect. For all three diluents, the percentage
of extraction of the LRE’s increased with an increase in the phase ratio (Figure 6). Except for lanthanum, the remaining three LRE’s reached 97%, whereas for lanthanum
the highest extraction observed was between 78% and 83%. It started to saturate at
the maximum loading of the metal from a phase ratio of A/O 3 onwards. Even for metals
such as Pr and Nd, A/O 2 is enough of a load to reach the maximum capability of the
metal.
3.8 Extraction isotherms for LRE’s using Cyanex® 272 as an extractant

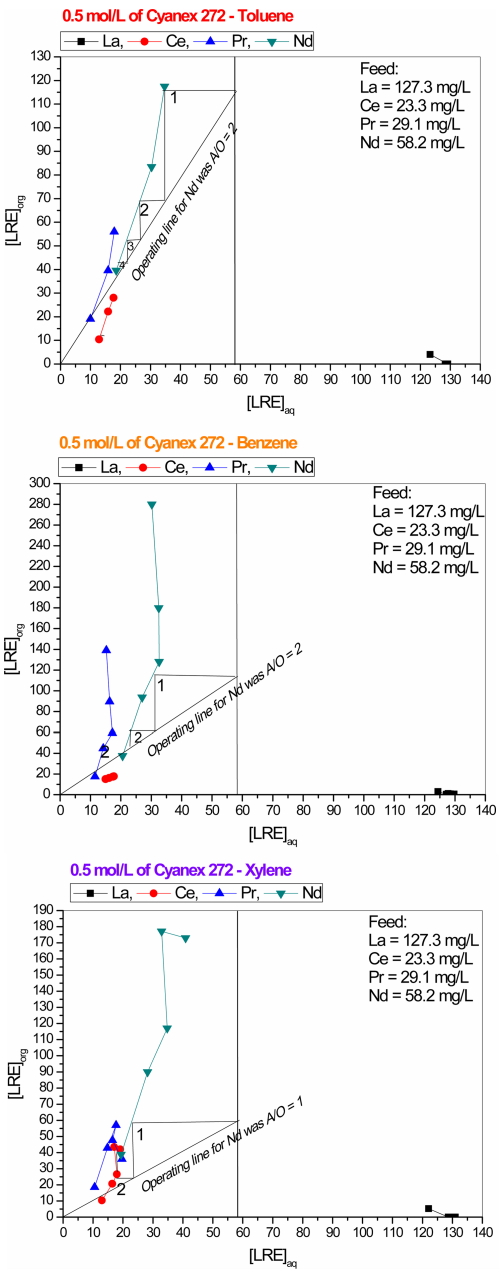

The extraction isotherm will give information about the required phase ratio and the
number of extraction stages to reach the maximum metal extraction rate from an aqueous
to an organic phase. In the present study, the A/O was varied from 1 to 10. The obtained
data are presented in Fig. 7. The data indicate that lanthanum was extracted at a negligible rate (and sometimes
nil); the present experiment determined the number of extraction stages for Nd, Pr,
and Ce. With the Cyanex® 272-benzene system, two extraction stages are required for Nd and Pr when the A/O
ratio is 2 for Nd and 2.9 for Pr, whereas the toluene system requires four extraction
stages for Nd, three for Pr and two for Ce with corresponding phase ratios of 2, 1.8,
and 1. The other system, xylene, requires three extraction stages for Nd with a phase
ratio of three and two for Pr or Ce with a phase ratio of 2 (Fig. 7).
4. CONCLUSIONS
Three different types of aromatic diluents were tested in the present study. These
were benzene, toluene and xylene, and the difference between each diluent was the
addition of one methyl group. A kinetic study concluded that the three diluents could
rapidly reach equilibrium within one minute. The influence of the initial pH study
concluded that 3 to 5.64 is the better range when compared to a lower range (1 to
2). The extractant concentration was varied from 0.1 to 1.0 mol/L of Cyanex® 272, and the percentage of extraction increased with an increase in the extractant
concentration. The maximum loading capacity test found the following order of preference
(Nd loading): toluene > xylene > benzene. Overall separation factors were calculated,
finding a diluent order as follows: xylene > benzene > toluene. Extraction isotherm
studies concluded that two extraction stages with A/O equal to 2 are required in the
Cyanex® 272-benzene system for Nd, whereas a phase ratio of 2.9 for Pr was observed in the
same system. In the toluene system, four extraction stages are required for Nd with
an A/O ratio of 2 and three stages are required for Pr with, an A/O ratio of 1.8.
For the Cyanex® 272-xylene system, three extraction stages for an A/O ratio of 3 for Nd and two stages
for an A/O ratio of 2 for Pr or Ce are needed. This study indicates that the benzene
system is more suitable for good extraction and possible separation. Future studies
will concentrate on the development of counter-current and stripping processes. Future
studies will also focus on metal extraction enrichment and possible separation of
adjacent rare earths.
Acknowledgements
The authors Dr. Jin-Young Lee and Dr. Rajesh Kumar Jyothi express their sincere gratitude
to the Convergence Research Project (CRC-15-06-KIGAM), funded by the National Research
Council of Science and Technology (NST) as well as the authorities of the Korea Institute
of Geoscience and Mineral Resources (KIGAM) funded by the Ministry of Science, ICT,
and Future Planning of Korea. The author Professor Joon Soo Kim expresses his deep
thanks to the authorities of Chonnam National University, Korea, and the author Ms.
Hey-Rim Kim expresses her sincere thanks to the Korea Resources Corporation (KORES)
and the authorities there.
REFERENCES
Critical Materials Strategy, US Department of Energy (2010)
Valerie Bailey Grasso, Rare Earth Elements in National Defense: Background, Oversight
Issues, and Options for Congress,Congressional Research Service (2013)
Alami D., Environ. Eng. Res,18, 211 (2013)
Schüler D., (https://www.oeko.de/fileadmin/pdfs/oekodoc/1111/2011-002-en.pdf, “Rare
Earths–Facts and Figures”, (2011)
Gomes R. D., Seruff L. A., Scal M. L. W., Vera Y. M., Metall. Mater. Trans. B,49B,
460 (2018)
Radhikaa S., Kumara B. N., Kantama M. L., Reddya B. R., Sep. Purif. Technol,75, 295
(2010)
Kim J. S., Kumar B. N., Lee J. Y., Kantam M. L., Reddy B. R., Sep. Sci. Technol,47,
1644 (2012)
Banda R., Jeon H. S., Lee M. S., Hydrometallurgy 121-,124, 74 (2012)
Banda R., Jeon H. S., Lee M. S., Sep. Purif. Technol,98, 481 (2012)
Shvedov V. P., Kopyrin A. A., Titov V. S., J. Radioanal. Chem,33, 223 (1976)
Cui Y., Yang J., Yang G., Xia Y., Nie Y., Sun G., Hydrometallurgy,16, 121-124, (2012)
Liu Y., Jeon H. S., Lee M. S., Korean J. Met. Mater,54, 592 (2016)
Kim J. S., Kumar B. N., Lee J. Y., Kantam M. L., Reddy B. R., Sep. Sci. Technol,47,
1644 (2012)
Quinn J. E., Soldenhoff K. H., Stevens G. W., Lengkeek N. A., Hydrometallurgy,157,
298 (2015)
Figures and Table
Fig. 1.
Kinetics of LRE extraction using 1 mol/L Cyanex® 272 in the three diluents tested
Fig. 2.
Influence of the pH on the extraction and possible separation of LRE’s using Cyanex® 272 as an extractant diluted in benzene.
Fig. 3.
Influence of the pH on the extraction and possible separation of LRE’s using Cyanex® 272 as an extractant diluted in toluene.
Fig. 4.
Influence of the pH on the extraction and possible separation of LRE’s using Cyanex® 272 as an extractant diluted in xylene.
Fig. 5.
Loading capacity of extractant (Cyanex® 272) of light rare earth elements extraction from chloride solutions.
Fig. 6.
Effect of the phase ratio (aqueous / organic) on light rare earth extraction rate
from chloride solutions using Cyanex® 272 as an extractant system with the diluents of benzene, toluene, and xylene.
Fig. 7.
Extraction isotherm for LRE’s using Cyanex® 272 as an extractant system with diluents of benzene, toluene, and xylene.
Table 1.
Separation factor data for Cyanex® 272-benzene system.
Separation of Nd from La, βNd/La = DNd / DLa
|
Separation of Nd from Ce, βNd/Ce = DNd / DCe
|
Separation of Nd from Pr, βNd/Pr = DNd / DPr
|
|
0.5 mol/L Ex
|
0.7 mol/L Ex
|
1.0 mol/L Ex
|
0.5 mol/L Ex
|
0.7 mol/L Ex
|
1.0 mol/L Ex
|
0.5 mol/L Ex
|
0.7 mol/L Ex
|
1.0 mol/L Ex
|
|
30.8
|
29.7
|
36.0
|
2.6
|
2.6
|
2.7
|
1.2
|
1.3
|
1.3
|
|
20.7
|
28.3
|
65.7
|
2.6
|
2.6
|
2.7
|
1.2
|
1.4
|
1.3
|
|
28.9
|
28.7
|
34.2
|
2.4
|
2.4
|
2.6
|
1.2
|
1.3
|
1.3
|
Table 2.
Separation factor data for Cyanex® 272-toluene system.
Separation of Nd from La, βNd/La = DNd / DLa
|
Separation of Nd from Ce, βNd/Ce = DNd / DCe
|
Separation of Nd from Pr, βNd/Pr = DNd / DPr
|
|
0.5 mol/L Ex
|
0.7 mol/L Ex
|
1.0 mol/L Ex
|
0.5 mol/L Ex
|
0.7 mol/L Ex
|
1.0 mol/L Ex
|
0.5 mol/L Ex
|
0.7 mol/L Ex
|
1.0 mol/L Ex
|
|
19.4
|
22.8
|
27.6
|
2.0
|
2.1
|
2.3
|
1.1
|
1.1
|
1.2
|
|
17.1
|
23.5
|
28.5
|
2.0
|
2.3
|
2.4
|
1.1
|
1.2
|
1.3
|
|
28.1
|
29.7
|
30.2
|
2.0
|
2.2
|
2.5
|
1.2
|
1.2
|
1.3
|
Table 3.
Separation factor data for Cyanex® 272-xylene system.
Separation of Nd from La, βNd/La = DNd / DLa
|
Separation of Nd from Ce, βNd/Ce = DNd / DCe
|
Separation of Nd from Pr, βNd/Pr = DNd / DPr
|
|
0.5 mol/L Ex
|
0.7 mol/L Ex
|
1.0 mol/L Ex
|
0.5 mol/L Ex
|
0.7 mol/L Ex
|
1.0 mol/L Ex
|
0.5 mol/L Ex
|
0.7 mol/L Ex
|
1.0 mol/L Ex
|
|
37.6
|
37.8
|
39.0
|
3.1
|
3.2
|
3.2
|
1.5
|
1.5
|
1.5
|
|
45.5
|
40.3
|
37.1
|
3.0
|
3.1
|
3.0
|
1.3
|
1.3
|
1.3
|
|
16.2
|
22.5
|
30.6
|
2.0
|
2.2
|
2.6
|
1.2
|
1.3
|
1.4
|
