(Tae Chang Park)
(Beom Seok Kim)
(Tae Young Kim)
(Il Bong Jin)
(Yeong Koo Yeo)
*
Copyright © 2018 The Korean Institute of Metals and Materials
Key words(Korean)
steelmaking process, artificial neural network, least squares support vector machine, endpoint temperature
1. INTRODUCTION
In integrated steel plants, the hot metal produced in the blast furnace is transferred
to a steelmaking process to yield steel product. One of the most important and efficient
steelmaking methods used to produce molten steel from hot metal is the basic oxygen
furnace (BOF) process [1]. In the BOF process, hot metal is converted to steel by exothermic oxidation. Due
to its high productivity and relatively low operating cost, the BOF process is used
to produce almost 65% of the total crude steel in the world. In general, two objectives
should be achieved in the BOF process: 1) decrease the carbon content in the hot molten
steel from approximately 4% to less than 0.08%, and 2) increase the temperature from
about 1,250 ℃ to more than 1,650 ℃ [2]. However, many input variables affect the endpoint carbon content and temperature.
The steelmaking process involves many complex chemical reactions, and the relations
between input and output variables exhibit strong nonlinearities. This makes the development
of a model to estimate the BOF endpoint very difficult and complicated. But if the
endpoint parameters of the molten steel can be estimated accurately, it may be possible
to optimally adjust the addition of the raw materials, blowing oxygen and coolant.
Various models have been proposed to estimate the endpoint temperature of the molten
steel in efforts to improve the quality of the product steel and to lower manufacturing
costs. One of the most widely used is the artificial neural network (ANN) model which
is suitable for both modeling and control purposes in the steelmaking process. ANNs
have been successfully used to estimate the endpoint temperature and the carbon content
of molten steel [3]. ANNs are also used to estimate the amount of oxygen and coolant required in the
end-blow period [3-7]. In recent years, the support vector machine (SVM) model has also been employed
to accurately estimate the endpoint parameter [8-11]. The computational capability of the SVM model is enhanced by incorporating kernel
functions and mapping data into higher dimensional space. Various intelligent models
have more recently been proposed in addition to ANN and SVM models. The extreme learning
machine (ELM) model, which is adjusted by an evolutionary membrane algorithm, was
proposed to accurately estimate the endpoint parameter of molten steel [12,13]. Estimation models based on case-based reasoning (CBR) and the adaptive-network-based
fuzzy inference system (ANFIS) have also been proposed [2,14-17].
In this study, the endpoint temperatures were estimated using the ANN, LSSVM and PLS
models, and the estimation results were compared with operating data. The RMSE values
for each model were calculated to identify the most effective model for use in actual
operation. In general, the performance of the estimation model depends on the choice
of input parameters used. The estimation performance can be improved when inputs that
have a strong influence on the endpoint parameters are selected and used. Input parameters
which significantly affect the endpoint conditions can be selected using sequential
sensitivity analyses.
The remainder of this paper is composed as follows. In Section 2, the BOF steelmaking
process is briefly described, and the PLS, ANN and LSSVM algorithms used in this study
are introduced. Section 3 presents the input parameter selection process used to estimate
endpoint temperatures. The results of the estimations and a comparative analysis of
the estimation performance of each model are presented in Section 4. In Section 5,
the conclusions are summarized.
2. THEORY
2.1. Process Description

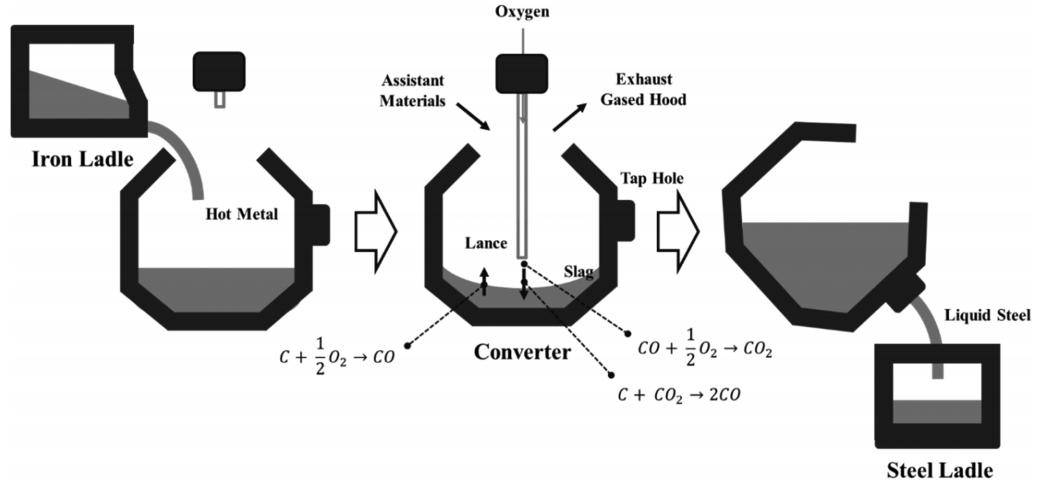

The hot transported metal contains significant amounts of impurities and cannot be
used directly in the steelmaking process. To oxidize the carbon and other impurities
and to adjust the metal’s composition, a converter is used in the BOF steelmaking
process, as shown in Figure 1. The converter is a cylindrical steel shell lined with some refractory materials.
In the BOF process, the converter is tilted forward so that hot metal is charged.
Relatively pure oxygen (more than 99.5%) is blown into the furnace through the vertical
watercooled oxygen lance [18]. During this step, raw materials such as burnt-lime and iron ore are added into
the furnace. The exothermic reactions of oxygen the elements such as Si, Mn and P
remove the impurities, followed by the oxidation and elimination of carbon. During
this step, oxygen is blown for about 20 min. The endpoint temperature, the carbon
content and the compositions of other species are measured after blowing. If the measurements
of the composition of C, P and Si or the endpoint temperature are not acceptable,
additional oxygen is blown until the compositions of each species and the endpoint
temperature satisfy the technical operation standards. If the compositions and the
endpoint temperature meet the requirements, the liquid steel is tapped into the steel
ladle. At that time, ferroalloys and the deoxidizers are thrown in the liquid steel
to control the compositions.
The chemical reactions occurring in the furnace are exothermic reactions driven by
high speed oxygen blowing with intense agitation. The main chemical reactions involved
are as follows [19]:
The heat generated by the oxidation reaction of Si becomes the main source of temperature
increase. In the carbon eliminating reactions, Fe reacts predominantly with oxygen
to yield FeO which in turn is reacted with carbon. The temperature in the converter
can be represented as [10]
where T0 is the temperature measured by the lance, Tr is the temperature raised by oxygen blowing, and Tc is the temperature decreased by the addition of the coolant.
2.2. Partial Least-Squares (PLS)
Partial least-squares (PLS) tries to identify so-called latent variables that capture
the variance in the original data, and determines the maximum correlation between
response variables Y and process variances X. PLS maximizes the covariance between the matrix of process variances X and the matrix of response variables Y. In PLS, the scaled matrices X and Y are decomposed into score vectors (t and u), loading vectors(p and q) and residual error matrices (E and F) as follows [20]:
where a is the number of latent variables. In the inner relation, the score vector t is regressed linearly according to the score vector u:
where b is the regression coefficient determined by the minimization of the residual h.
2.3. Artificial Neural Network (ANN)
ANN, one of the most commonly used techniques in machine learning, consists of many
simple neurons interconnected through a complex network. In a neuron, all signals
from previous neurons are collected by weighted summation added by a bias. The output
from the neuron is passed to the next neuron through an activation function [21].
The activation function used in the neuron can be represented as
where X denotes the summation of inputs fed into the neuron, xi is the value of the input i, wi is the weight on the input i, n is the number of input signals, and Y is the output from the neuron. Step, sign, sigmoid, and tanh functions are commonly
used as the activation function. The basic activation functions such as step and sign
functions generate 0, 1, or -1 as outputs. In general, sigmoid and tanh functions
are most widely used. These functions convert input values ranging from –∞ to +∞ into
the value lying between 0 and 1 or -1 and 1. These two functions can be readily adjusted
to approximate a wide range of functions, including step and linear functions [22]. Figure 2 shows the prediction model based on ANN.

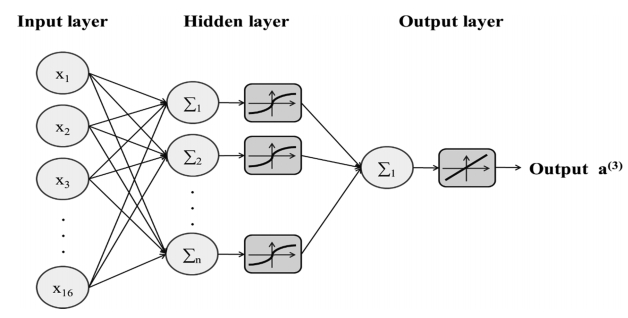

Typical multilayer neural networks consist of one input layer, multiple hidden layers
and one output layer. In the learning process, the errors between the target values

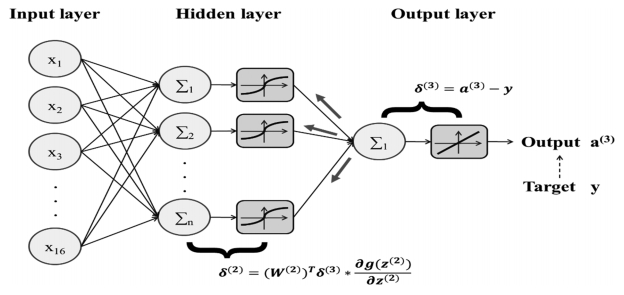

and the output values from the output layer are calculated. As shown in Figure 3, these errors are propagated in reverse to the input layer followed by the adjustment
of weighting parameters. This kind of learning method is called a backpropagation
learning algorithm.
The Backpropagation learning algorithm consists of the following two steps.
Step 1): perform the forward propagation operation by using the training data as in
input to ANN. Calculate the differences between the predicted values and target values.
These differences are regarded as errors which can be represented as
Step 2): Backpropagate these errors to the nodes within the ANN. Most machine learning
algorithms employthe gradient descent method in which the objective function J(W) is continuously minimized. In the gradient descent method, the update procedure can
be represented by
where the parameter α denotes the learning rate. The backpropagation learning algorithm is used to compute
the value of the derivative of the objective function,
∂
∂
W
j
J
(
W
)
, in Eq. (15) [23].
2.4. Least-Squares Support Vector Machine (LSSVM)
The support vector machine (SVM) can be considered a linear classifier which learns
to minimize generalization errors. In SVM, the objective function for learning is
defined using a margin to determine the optimal boundary among many linear decision
boundaries [21]. The support vector is defined as data located at the nearest position to the decision
boundary when the decision boundary classifying the learning data consisting of two
classes is identified.
The Least-Squares Support Vector Machine (LSSVM) was proposed to replace SVM, which
suffers from difficulty in solving Quadratic Programming (QP) problems. LSSVM is based
on statistical learning using the least-squares scheme, and may be regarded as an
alternative form of the SVM regression method [24]. The LSSVM optimization problem to estimate functions can be represented as Eq.
(16) and (17):
Subject to
where ek denotes the error variable and φ is a normalized parameter representing the trade-off between the minimization of
errors and the smoothness. The Lagrangian for the optimization problem can be defined
as
where αk is the Lagrangian multiplier. The solution of the optimization problem yields the
LSSVM model expressed by Eq. (19):
where K(x,xk) is the Kernel function [25].
3. ESTIMATION OF THE ENDPOINT TEMPERATURE
In the steelmaking process, accurate estimation of the endpoint temperature is very
difficult because of the nonlinear relationships among the process parameters [9]. Various models have been proposed to predict the endpoint variable of molten steel
for the purpose of reducing manufacturing cost and improving the quality of the steelmaking.
If an accurate estimation of the endpoint temperature of the molten steel can be established,
the amount of oxygen and coolant required to meet the target temperature (usually
between 1,670 ℃ and 1,690 ℃) during the end-blow period in the steelmaking process
can be accurately calculated prior to the operation.
The main chemical reactions that have significant effects on the endpoint temperature
can be divided into heating and cooling reactions, as shown in Table 1.
Based on these chemical reactions, 16 input data to be used in the models were selected
from the process data set, as shown in Table 2.
In this work, both the ANN and the LSSVM models were employed to estimate the endpoint
temperature in the underlying steelmaking process. To obtain reliable estimation results
it is imperative to select the appropriate choice of input variables that affect the
endpoint temperature.
The input variables shown in Table 2 were used in the ANN and the LSSVM models to estimate the endpoint temperature. The
results of the estimations were compared with those obtained from the PLS model, which
is the classical estimation scheme, to evaluate the estimation performance.
4. RESULTS AND DISCUSSION
In this work, a total of 855 operational data sets were selected for training and
model validation: 743 data sets were used to train the models and the remaining 112
data sets were used to validate the models. Table 3 shows the range of input conditions used for training in the models.
The estimation performance was evaluated using RMSE (Root Mean Square Error) defined
as follows:
where ypred denotes predicted values, yactual are the actual values, and N is the number of data points used in the prediction.

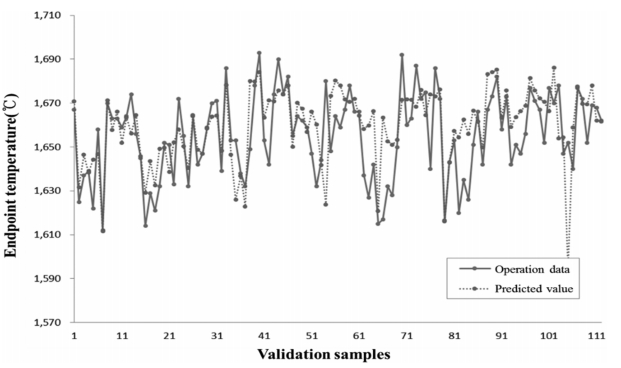

Figure 4 exhibits the results of the comparison between the operation data and the values
predicted using the ANN model. The validation samples used on the x-axis mean the
number of samples to validate the model.
The value of RMSE for the ANN model was 16.45. Figure 5 shows the results of the comparison between the actual values and the values predicted
using the LSSVM model.
The value of RMSE for the LSSVM model was 14.29, which is a significant improvement
over the estimation based on the ANN model. For additional model comparison, the classical

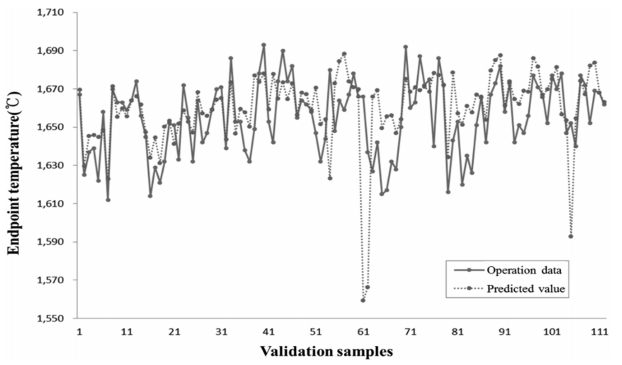

PLS model was employed as the base case. The prediction results of the PLS model are
displayed in Figure 6.
The value of RMSE for the PLS model was 21.24, which is much larger than those for

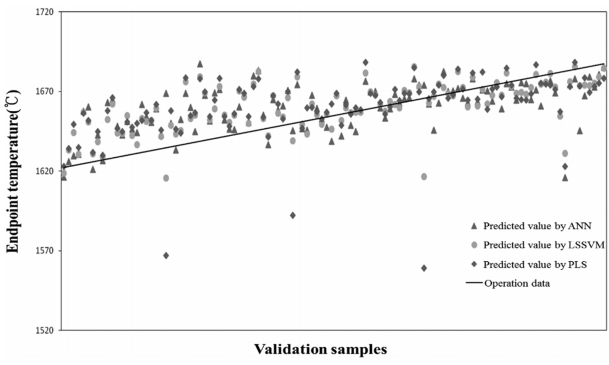

the ANN and the LSSVM models. The values predicted by the three models with the trend
line of the operation data are displayed in Figure 7.
The maximum deviation was utilized to carry out a comparative analysis of the estimation
performance [3]. The maximum deviation is defined as the percent of the predicted values that lie
within a range of ±15 ℃ of the measured endpoint temperatures. Table 4 shows the maximum deviations of the three estimation models.
As can be seen in Table 4, the LSSVM model shows the best estimation performance compared with the remaining
models, followed by the ANN model.

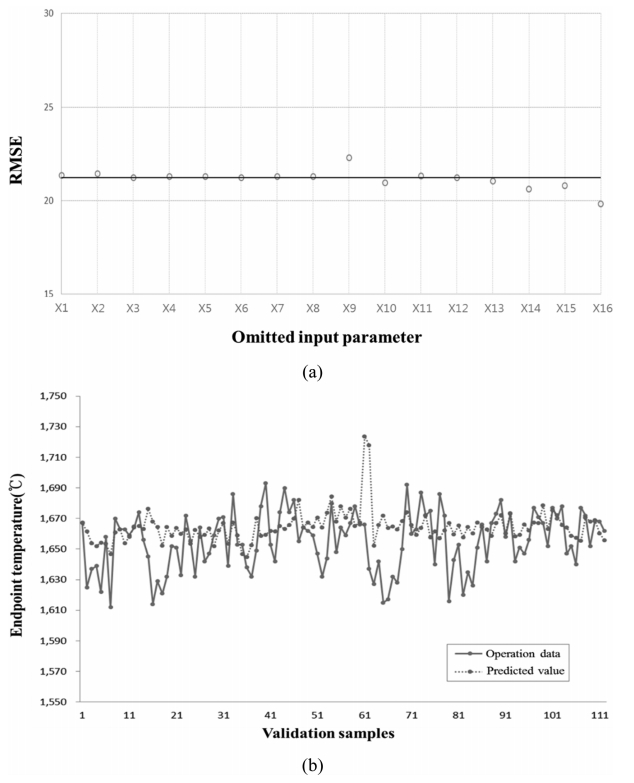

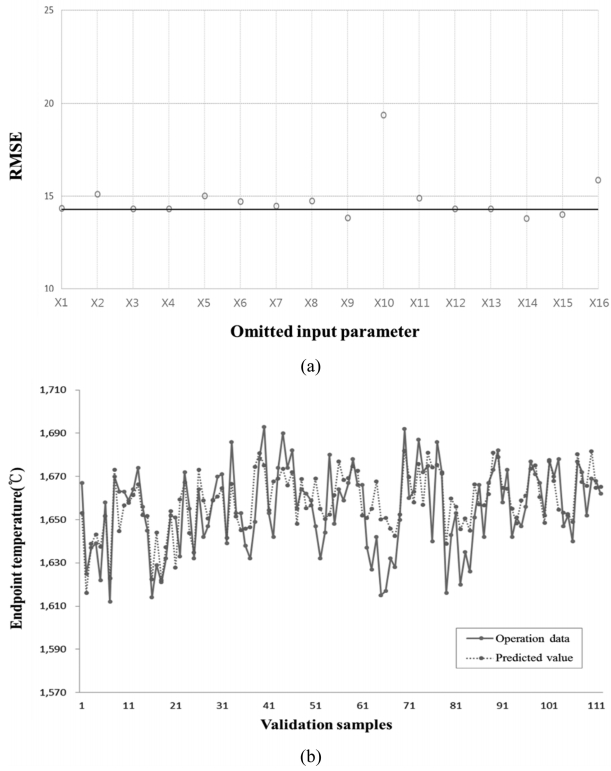

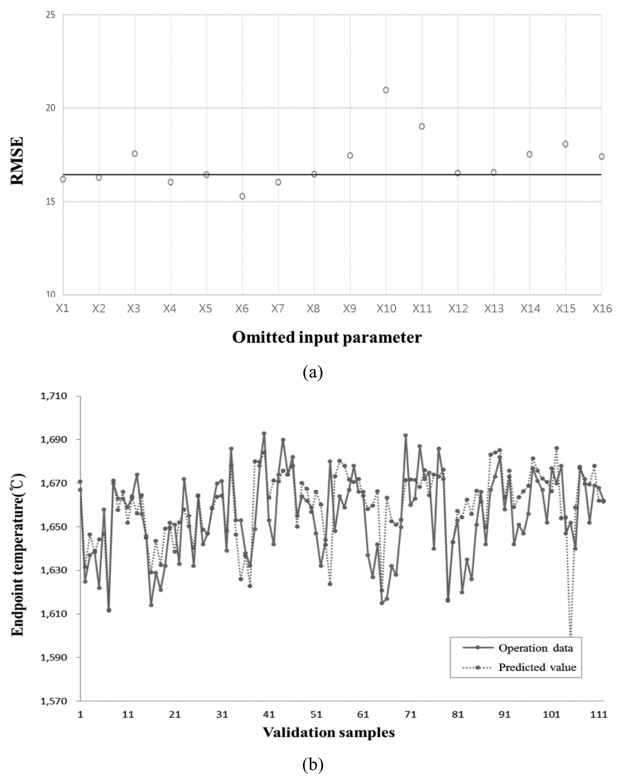

In the analyses so far, all 16 initial input parameters have been used to calculate
the value of RMSE for each model. However, some of the input parameters had negligible
or little effect on the endpoint temperature estimation performance. To investigate
which they were, the value of RMSE was sequentially calculated with one input parameter
omitted, using the remaining input parameters. If the calculated RMSE was larger than
the previous value, the omitted input parameter was considered to be an essential
parameter with a significant contribution to the endpoint temperature. On the other
hand, if the calculated RMSE turned out to be smaller than previous value, the omitted
input parameter was considered to have a negligible effect on the endpoint temperature,
and was excluded to improve the estimation performance. Using this sequential selection
process, finally only the essential input parameters remained, after excluding parameters
that had negligible effect on estimation performance. Then the value of RMSE was calculated
for each model using the new selected input data sets.
In the ANN model, each input parameter was sequentially omitted from the 16 input
parameters, and the RMSE was then recalculated for the estimation based on the remaining
input parameters. As shown in Figure 8(a), some RMSEs with one input parameter omitted were lower than previous result obtained
using all 16 input parameters. Accordingly, X1, X2, X4, X5, X6 and X7 were considered
to be negligible input parameters that had little effect on the estimation performance.
The ANN model was constructed again after these input parameters were excluded, and
the RMSE was recalculated again using the remaining 10 input parameters. Figure 8(b) shows the results of the comparison between the operation data and the predicted
values for the ANN model. The recalculated RMSE is 16.36, which is less than the 16.45
obtained using all 16 input parameters.
As shown previously, the initial RMSE for the LSSVM model using all 16 input parameters
was 14.29. As was done with the ANN model, the RMSE was recalculated after one input
parameter was sequentially omitted and the estimation was based on the remaining input
parameters. As shown in Figure 9(a), some RMSEs with one input parameter omitted sequentially were lower than the base
value, 14.29. X9, X14 and X15 were accordingly considered to be negligible input parameters
which had a negative effect on the estimation performance. The LSSVM model was then
recalculated using the remaining 13 input parameters. Figure 9(b) shows the results of the comparison between the operation data and predicted values
using the LSSVM model. The recalculated RMSE was 13.21, which is less than the base
case, 14.29. This confirms that the RMSE for the LSSVM model is reduced through the
sequential input selection process.
Finally, the sequential input selection process was also applied to the PLS model,
and RMSE was recalculated for the estimation. As shown in Figure 10(a), the RMSEs with omitted input parameters X10, X13, X14, X15 and X16 were lower than
the base value, which was 21.24. The PLS model was constructed again after these parameters
were excluded, and RMSE was recalculated using the remaining 11 input parameters.
Figure 10(b) shows the results of the comparison between the operation data and the predicted
values using the PLS model. The recalculated RMSE was 22.14, which is larger than
base value of 21.24. We can see that the sequential input selection process has no
positive effect on the estimation performance of the PLS model.
Table 5 shows the input parameters obtained from the sequential input selection process,
and Table 6 shows the resultant RMSEs using all 16 input parameters and the resultant RMSEs using
remaining input parameters after the sequential input selection process for the three
models.
As demonstrated in Table 5, the selected input parameters obtained by the sequential input selection processes
are different for each model. This is due to the different effects of various data
on each model, based on statistical learning. The RMSE values used in the sequential
input selection process are different for each model. Therefore, as shown in Figs 8-Fig. 9.10, some input parameters were discarded due to their small effect on the RMSE values,
and the remaining input parameters are therefore different in each model. It is difficult
to identify interactions among input parameters in the sequential analysis method.
In order to take interactions among input variables into account, the correlation
analysis method or variable selection method widely used in big data mining schemes
should be applied. But the primary purpose of this study was to improve estimation
accuracy, and it was found that the sequential analysis method is very efficient for
that purpose. As can be seen in Table 6, it is confirmed that the LSSVM model with 13 input parameters obtained from the
sequential input selection process exhibited the best estimation performance among
the three estimation models considered in this study.
5. CONCLUSIONS
The ANN model and the LSSVM model were used to predict the endpoint temperature of
molten steel produced in the steel making process. The classical PLS model was used
as a base case for model comparison. The estimation performance was evaluated using
RMSE values and when all 16 input parameters were used, the RMSE value of the LSSVM
model was 14.29 and that of the ANN as 16.45. The RMSE of the PLS model was 21.24,
the poorest estimation performance of the three models. The RMSE values of the three
models were then recalculated using input parameters obtained from the sequential
input selection process. As a result, the RMSE value of the LSSVM model was 13.21
and ANN was 16.36. From the model comparison, the LSSVM model with the 13 input parameters
obtained from the sequential selection process had the best estimation performance,
compared to the ANN and PLS models. The LSSVM model is expected to be used to accurately
calculate the amounts of oxygen and coolant required to achieve the target temperature
during the end-blow period in the steel making process.
