(Jong Won Baek)
1
(Joo Won Oh)
1
(Jae-Sook Chung)
2
(Yong-Seok Cho)
2
(Seong Jin Park)
1*
Copyright © 2019 The Korean Institute of Metals and Materials
Key words(Korean)
compact endless cast and rolling mill (CEM), FEM simulation, sensitivity analysis
1. INTRODUCTION
Steel is one of the most important materials for engineering and manufacturing. Generally,
the following four processes are required to fabricate a steel product: smelting,
steel making, continuous casting, and hot rolling. Continuous casting and hot rolling
processes are the most widely used. Both have the advantages of shape complexity,
mass production, and cost effectiveness [1,2].
However, there are some discontinuities between the conventional continuous casting
and the hot rolling processes. The discontinuities may decrease product quality such
as, surface roughness, and homogeneity. When using a hot rolling mill, producing thin
steel plates is very difficult and results in low surface quality and low strength,
because of surface oxidation due to the temperature drop.
Therefore, a new process, called the Compact Endless cast and rolling Mill (CEM) was
developed by Pohang Iron & Steel Company (POSCO) [3]. CEM is an advanced process technology that combines continuous casting and the
hot rolling process, and it has many advantages. CEM processes can make mass production
with high quality slabs. Additionally, thin products which are very difficult to produce
by hot-rolling can now be easily manufactured. With the proposed method, it is possible
to maintain the uniform high quality of hot-rolled products, which were once difficult

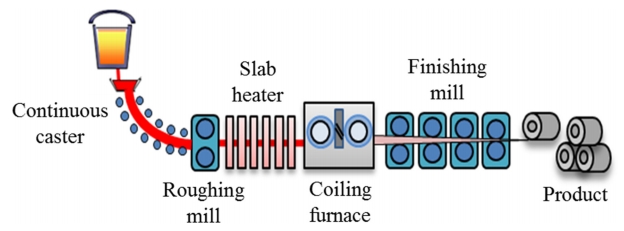

to fabricate using conventional hot-rolling or casting. Figure 1 shows the layout of the CEM process.
First, the hot slab is moved from the continuous caster and passed through the slab
heater to reheat for temperature recovery and homogenization. Next, the slab is moved
into the coiling furnace and finishing mill to conduct coiling and adjust sizing.
However, the coiling furnace is a very expensive device and has high maintenance costs.

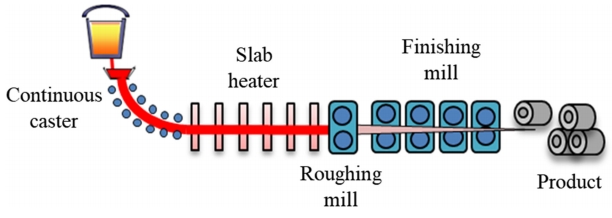

Therefore, the new proposed layout as shown in Fig 2 can overcome this drawback.
In the new layout, the slab passes through the slab heaters and is shaped in the finishing
mill. The gap between the slab heaters was increased and not covered, so the slab
temperature rapidly dropped when the slab was passed through the slab heater. In the
steel-fabrication process, the temperature distribution is the most important parameter
determining slab quality [4-11]. Temperature distribution also affects the kinetic and kinematic parameters, such
as stress, strain, and deformation, which are directly related to quality [12,13]. Moreover, these effects impact the hardness or ductility of a slab [14,15]. Variation of temperature can be decreased by using a slab heater cover between
slab heaters.
In this study, thermal and structural analysis in the slab with slab heater covers
were conducted for new the layout CEM process. Simulation results were verified by
comparing them the experimental results. A sensitivity analysis of the slab heater
cover was carried out to determine the greatest influence on the slab temperature
and deformation.
2. THEORY
In the CEM process, heat transfer from the heater to the slab depends mainly on radiation,
because of the high temperature difference. Heat conduction is the dominant heat transfer
inside the slab and the slab heater. The heat transfer by the radiation can be determined
using equation (1): [16]
where N is the number of radiating surfaces, δji is the Kronecker delta, εi is the effective emissivity of the surface i, Ai is the area of surface i, Qi is the energy loss of surface i, σ is the Stefan-Boltzmann constant, and Ti is the absolute temperature of surface i. Fji contains the radiation view factors, which are defined as the blocked fraction of

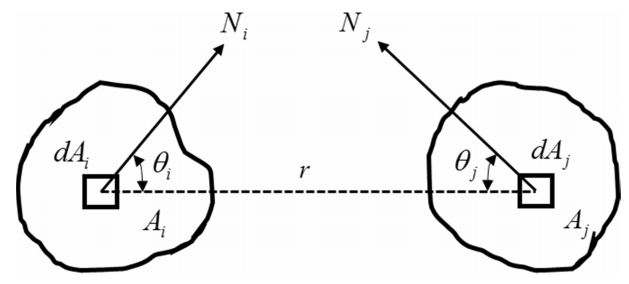

total radiant energy by the surface i, as shown in Fig 3 and expressed by equation (2):
where Ai and Aj are the areas of surfaces i and j respectively, r is the distance between differential surfaces i and j, θi and θj are the angles between normal vectors, Ni and Nj, and the radius line to surface d(Ai) and d(Aj), respectively.
Heat transfer by conduction can be described as equation (3) [17]:
where ρ is the material density, c is the specific heat, k is the thermal conductivity, and Ew is the energy input due to mechanical work. Ew is zero because CEM process receives no external energy input.
Using the temperature distribution obtained from equations (1) to (3), the thermal stress can be calculated by equation (4): [18]
where E is Young’s modulus, α is the thermal expansion coefficient, T is the current temperature, and T0 is the initial temperature.
3. GEOMETRY AND MATERIAL PROPERTIES

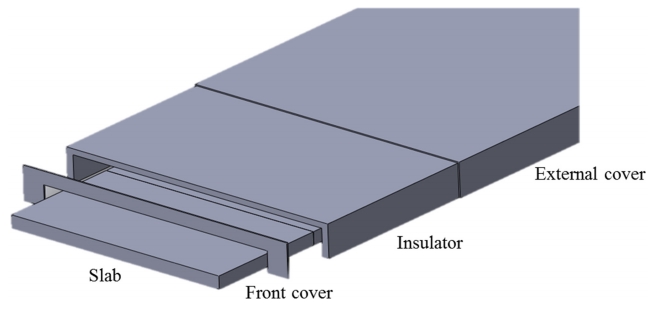

Figure 4 shows the slab heater cover design for the CEM process. The slab heater cover consists
of three parts: the front cover, the insulator and the external cover. The slab passes
through the slab heater cover. SS400 was used for the front and external covers, and
Ceramol#150 was used as an insulator. The slab was provided by POSCO. The mechanical
and thermal properties of the slab, cover and insulator are summarized in Table 1.
4. RESULTS AND DISCUSSION
4.1. Simulation verification

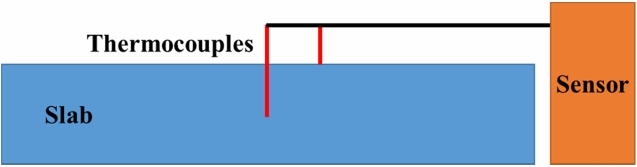

A cooling experiment was conducted to verify the simulation. A schematic diagram of
the experiment is shown in Fig 5. The cooling time was 30 seconds, and the temperatures at the surface, and the center
of the slab were measured by thermocouples. The average temperature was obtained by
calculating the temperature of each thermocouple. The results of the cooling experiment
are shown in Table 2.

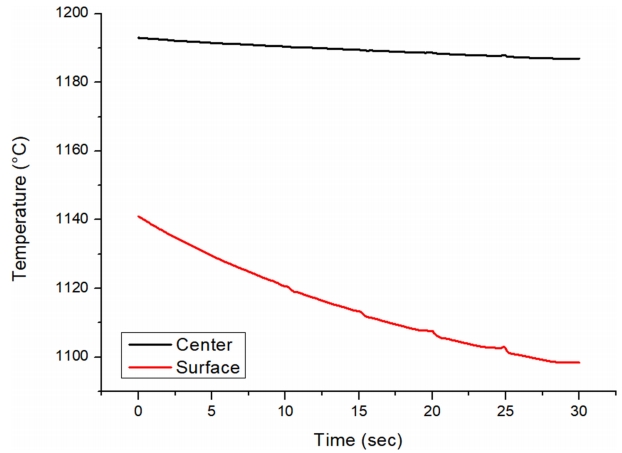

Comparing the experimental and simulation results (Table 2, 3 and Fig 6), the surface temperature differences between the start and the end were respectively
53 °C and 55.3 °C. The average temperature differences were 16 °C and 12.8 °C, and
the center temperature differences were 11 °C and 9.4 °C, respectively. The errors
between the experimental and simulation results were all within 3 °C. Thus, the simulation
was verified.
4.2. Slab heater cover effect

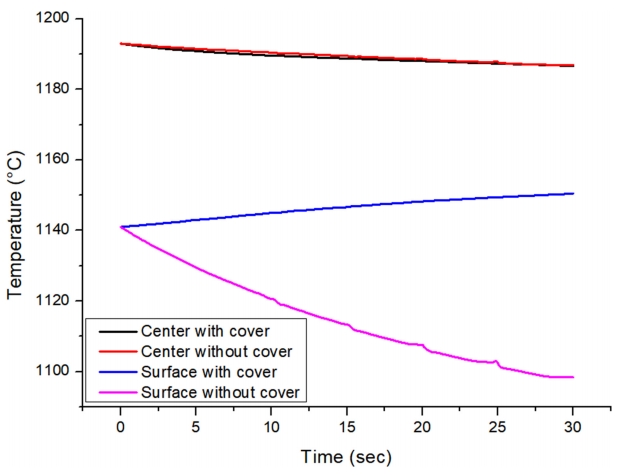

To study the effect of the slab heater cover, the simulation results of the temperature
with and without slab heater during cooling were compared as shown in Fig 7. The differences in center temperatures with and without cover cases were very small,
within 3 °C, but the surface temperature differences were larger. The center temperature
was cooled by conduction, but the surface temperature was chilled by convection and
radiation. The amount of cooling by conduction is governed by the temperature difference
between the center and the surface, while heat transfer by convection and radiation
are determined the temperature difference between the atmosphere with room temperature
and the surface. Therefore, there was no significant difference in the center temperature
after cooling regardless of the presence of the cover. In the absence of a cover,
the temperature differences between the surface and atmosphere remained almost constant
because the atmosphere was maintained at a constant temperature (room temperature).
However, in the opposite case, the bottom surface of the cover was heated by the slab
surface, so heat fluxes were decreased. Therefore, the slab heater cover is effect
on the reduce of temperature gradient of the slab.
4.3. Simulation results
Because of the characteristics of the CEM process, a slab can be produced in an infinite
length. However, it is impossible to deal with the infinite length of the slab in
a simulation. Therefore, it would be useful to determine the moving distance of a
slab with an unchanging average temperature. Figure 8 and 9 show the simulation conditions and results of temperature distribution, respectively.

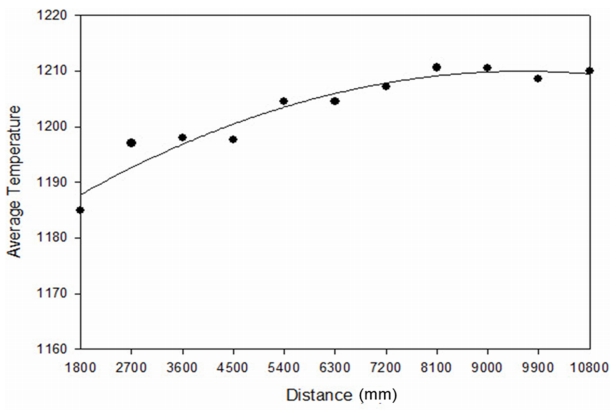

Figure 10 shows the average temperature of the slab with respect to the slab moving distance.
The initial temperature of the cover and atmosphere were set to room temperature.
The dominant heat transfer method was radiation from the heater to the slab due to
the slab’s high temperature compared to its surroundings. Heat transfer caused by
natural convection also occurred. The coefficient of natural convection was set to
5 W/m2K. The slab moved at 6 m/min, which was the optimal speed for the new layout as determined
by POSCO [3].

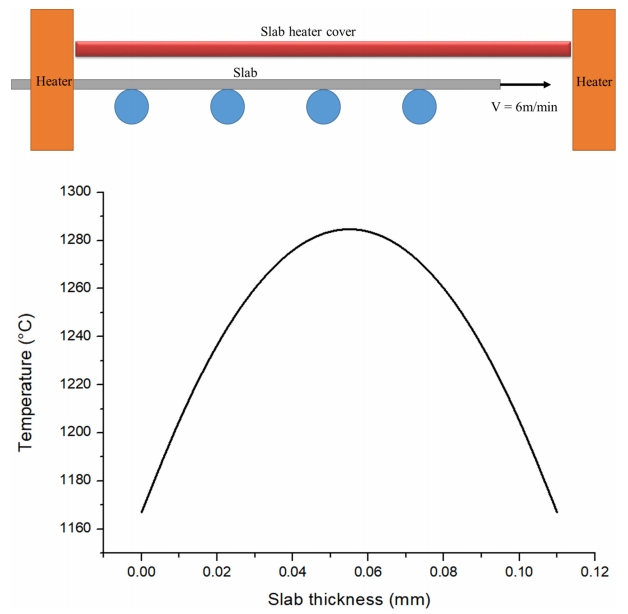

Initially, a slab with the temperature distribution defined in Fig 8 was inserted into the cover at room temperature and the bottom of the cover was gradually
heated. At this time, a slab that was not inserted into the cover was kept at the
initial temperature distribution, and conduction occurred inside the slab. When the
temperature of the bottom of the cover was increased above a certain level, the conduction
effect inside the slab became larger than the heat transfers between slab and cover.
Thus, the average slab temperature was moderately increased. The increased rates decreased
and became zero when the slab moving distance reached 9000 mm. In other words, steady-state
simulations can be performed after the saturation point.

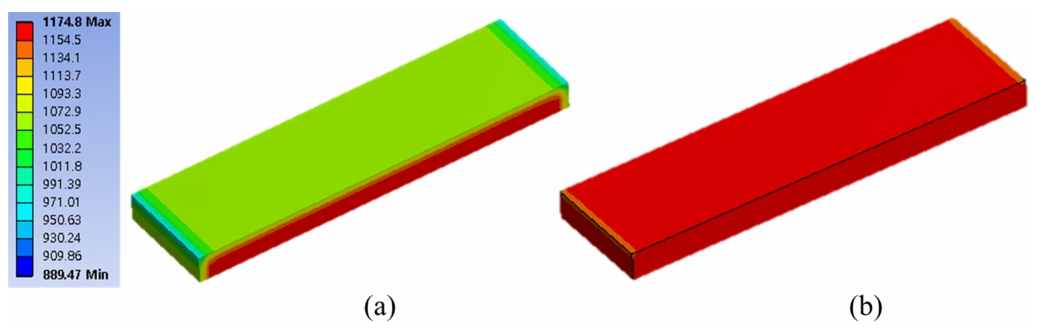

Based on the above results, thermal analysis of slab temperature distribution was
conducted to investigate the efficiency of the cover during the CEM process shown
in Fig 11.
The rate of temperature drop decreased by more than 50% when the slab heater cover
was used. Furthermore, the temperature distribution was more uniformed, which contributed
to improving the quality of the slab.
4.4. Sensitivity analysis of the slab heater cover
Sensitivity analysis is a quantification method to indicate the influence between
the input and output parameters. Through sensitivity analysis, output parameters such
as slab temperature, thermal stress, thermal strain, and total deformation were compared
to design the slab heater cover. The sensitivity parameters were normalized to derive
the correlation of variables regardless of the magnitude of values. Sensitivity is
defined in equation 5 [19].
For the sensitivity analysis, the input parameters were varied ±30% and the subsequent

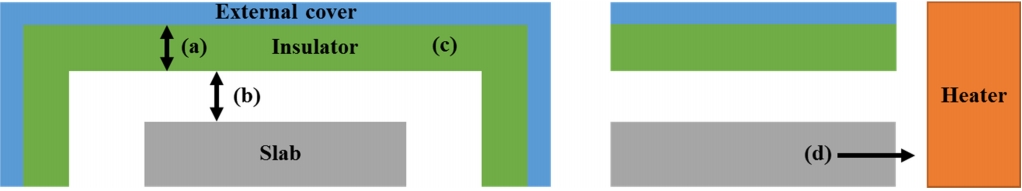

changes in the output parameters were examined. Figure 12 shows the input parameters for the sensitivity analysis. The sensitivity results

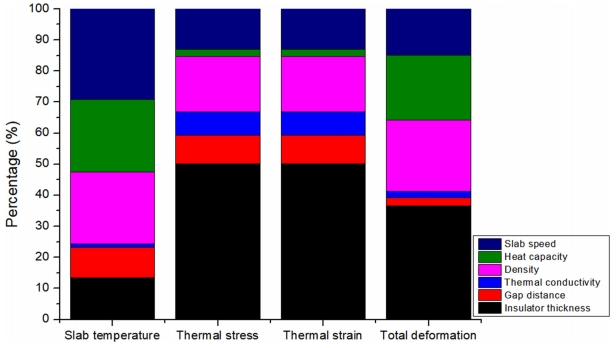

are summarized in Fig 13 and Table 4.
With respect to slab temperature, the slab speed was the most dominant factor. When
the slab moved faster, the heat transfer rate between the slab and other materials,
such as the insulator, decreased. The material properties of the insulator were also
an important factor.
Heat transfer can be calculated using equation 6, where Q is the heat transfer, c is the specific heat, r is the density, V is the volume of the substance, and ΔT is the temperature gradient. The heat transfer is proportional to the density and
specific heat.
Specific heat is one of the most sensitive material parameters. Material properties
affect the radiation and conduction, so they affect the temperature changes of the
insulator in response to the effect of the slab heater.
In the aspect of kinetics, thermal stress was most affected by insulator thickness.
A high thermal stress could cause cracks and distortions in the insulator and body
of the slab heater cover [20]. Density and slab speed also affect the kinetic parameters because the temperature
difference between the slab and insulator cover increases as either parameter increases.
The slab heater is composed of an insulator, a cover, and a slab, which are linear
elastic materials. Therefore, the stress and strain followed the Hooke’s law. Thus,
the results of the sensitivity analysis for the thermal stress and the strain are
the same. Finally, deformation in the vertical direction was most affected by the
insulator thickness because the temperature gradient increased as the insulator thickness
increased. In addition, a large temperature gradient caused an increase in thermal
stress and strain, so the deformation in the vertical direction increased. The material
properties of the cover (density and heat capacity) were also important parameters.
5. CONCLUSION
Use of a slab heater cover was effective in reducing the temperature drop in the slab
during CEM. This paper presented a sensitivity analysis of the slab heater cover using
FEM methods to identify the parameters that are important in designing the cover.
Prior to the sensitivity analysis, simulation verification was performed by comparing
experimental and simulation results. The results verified the efficiency of the slab
heater cover in reducing the temperature drop during the CEM process was verified.
Temperature was most affected by material properties such as density, heat capacity
and slab speed. Kinetics and kinematics were most affected by the insulator thickness;
density was also important. These simulation results for the slab heater cover provide
information about the factors that are important in the design of a slab heater to
increase efficiency. This work contributes to understanding of the CEM process, but
can also be applied to other high-temperature steel-production processes such as rolling
and casting.
Acknowledgements
This work was supported by POSCO.
REFERENCES
Humphreys D. E., Madill J. D., Ludlow V., Stejwart D., Thornton S. G., Normanton A.
S., 1st European Conference on Continuous Casting,1529 (1991)
McCulloch C., Kumar A., Hawbolt E. B., Samarasekera I. V., Steel Product-Process Integration,216
(1989)
Lee I., 15th International Conference on Advances in Materials & Processing Technologies
Conference 2012 (AMPT 2012), (2012)
Kong Y., Chen D., Liu Q., Chen H., Long M., Steel Res. Int,89, 1800091 (2018)
Brimacombe J. K., Sorimachi K., Metall. Mater.Trans. B,8, 489 (1977)
Shen H. F., Hardin R. A., Mackenzie R., Beckermann C., J. Mater. Sci. Technol,18,
311 (2002)
Kato T., Ito Y., Kawamoto M., Yamanaka A., Watanabe T., ISIJ Int,43, 1742 (2003)
Wang H. M., Li G. R., Lei Y. C., Zhao Y. T., Dai Q. X., Wang J. J., ISIJ Int,45, 1291
(2005)
Sengupta J., Thomas B. G., Wells M. A., Metall. Mater. Trans. A,36, 187 (2005)
Wang X. Y., Liu Q., Wang B., Wang X., Qing J. S., Hu Z. G., Sun Y. H., Ironmak. Steelmak,38,
552 (2011)
Ma H., Wang Q., Li Y. G., Lu Y. J., He S. P., Metal. Int,17, 30 (2012)
Duly D., Lenard J. G., Schey J. A., J. Mater. Process. Tech,75, 143 (1998)
Galantucci L. M., Tricarico L., J. Mater. Process. Tech,92, 494 (1999)
Lee J.-H., Park S.-J., Moon J., Kang J.-Y., Park J. Y., Lee T.-H., Cho K. M., Korean
J. Met. Mater,55, 363 (2017)
Park J. Y., Park S. J., Lee J. H., Moon J., Lee T. H., Jeong K. J., Shin J. H., Korean
J. Met. Mater,55, 12 (2017)
Siegal R., Howell J. R., Thermal Radiation Heat Transfer,6-12, Hemisphere Publishing
Corporation (1981)
Laasraoui A., Jonas J. J., ISIJ Int,31, 95 (1991)
Ansys. ‘‘12.0 Theory Guide.’’ Ansys Inc 5 (2009),
Jeong J. H., Park S. J., Comp. Mater. Sci,100, 21 (2015)
Gadalińska E., Baczmański A., Wroński S., Kot P., Wroński M., Wróbel M., Wierzbanowski
K., Met. Mater. Int,135, 24 (2018)
Figures and Tables
Fig. 2.
New suggested layout of CEM.
Fig. 3.
View factors with parameters
Fig. 4.
Layout of slab heater cover
Fig. 5.
Schematic diagram of the cooling experiment
Fig. 6.
Graph of cooling simulation with respect to time
Fig. 7.
Temperature with respect to time during cooling simulation
Fig. 9.
(a) Structure of cover and slab, and temperature distribution of cover bottom surface
and slab with (b) 3600 mm, (c) 6300 mm, and (d) 9000 mm moving, respectively.
Fig. 10.
Slab average temperature with respect to slab moving distance
Fig. 11.
Slab temperature distribution during CEM process (a) without cover, (b) with cover
Fig. 12.
Sensitivity parameters (a) insulator thickness, (b) gap between slab and insulator,
(c) insulator material properties, (d) slab speed
Fig. 13.
Sensitivity analysis results for each parameters
Table 1.
Material properties of slab heater cover parts
|
|
Mechanical properties
|
Thermal properties
|
|
Thermal expansion coefficient (10-6°C)
|
Young’s modulus (GPa)
|
Poisson’s ratio
|
Thermal conductivity (W/m°C)
|
Heat Capacity (J/kg°C)
|
Density (kg/m3)
|
Emissivity
|
|
Cover
|
11
|
210
|
0.26
|
50
|
480
|
7850
|
0.57
|
|
Insulator
|
5
|
39.1
|
0.27
|
0.279
|
1046
|
1160
|
0.90
|
|
Slab
|
12.6
|
200
|
0.27
|
36
|
800
|
7872
|
0.83
|
Table 2.
Results of cooling experiment
|
|
Surface
|
Average
|
Center
|
|
Start temperature (°C)
|
1141
|
1169
|
1193
|
|
Final temperatu°re (C)
|
1088
|
1153
|
1182
|
|
Difference (°C)
|
53
|
16
|
11
|
Table 3.
Results of cooling simulation
|
|
Surface
|
Average
|
Center
|
|
Start temperature (°C)
|
1141
|
1169
|
1193
|
|
Final temperature (°C)
|
1085.7
|
1156.2
|
1183.6
|
|
Difference (°C)
|
55.3
|
12.8
|
9.4
|
Table 4.
|
Input parameters
|
Slab temperature
|
Thermal stress
|
Thermal strain
|
Vertical direction deformation
|
|
Insulator thickness
|
0.135
|
0.502
|
0.502
|
0.366
|
|
Gap distance
|
0.098
|
0.091
|
0.091
|
0.027
|
|
Thermal conductivity
|
0.012
|
0.075
|
0.075
|
0.020
|
|
Density
|
0.231
|
0.179
|
0.179
|
0.230
|
|
Specific heat
|
0.233
|
0.023
|
0.023
|
0.209
|
|
Slab speed
|
0.292
|
0.129
|
0.129
|
0.149
|
