1. INTRODUCTION
In 2015, the copper recovered by leaching accounts for 43% of total copper production
in the US [1]. The hydrometallurgical process for copper recovery is well developed over the years
because it produces less waste than pyrometallurgy and presents great advantage in
treating low-grade materials.
Conichalcite with ideal formula CaCu(AsO4)(OH) is not well known. Generally, it is recognized as a secondary mineral in the
oxidized zone of copper deposits, typically an alteration product of enargite. The
leaching behavior of conichalcite is not fully clarified, and it is classified as
refractory material under some occasions [2]. Chalcopyrite, one of the primary sulfide minerals, is very difficult to leach in
acidic solution at ambient temperature. Many efforts have made to develop new methods
to extract copper from chalcopyrite, such as utilizing bacteria or stronger oxidant
[3,4].
The conichalcite-rich deposit where sample A was received is located at the Maggie
Creek district in Nevada's Carlin trend, USA. It is a subhorizontal, sedimentary rock-hosted
gold and copper deposit. Although it is productive for gold, there is large quantities
of copper ores (150 Mt, at an average grade of 0.25% Cu) [5,6]. In the supergene zone, conichalcite, chrysocolla, cuprite, native Cu, chalcocite,
malachite, and Cu-bearing kaolinite, montmorillonite, and halloysite contribute to
the composition of copper ore [7].
Sample B is originated from a chalcopyrite-rich deposit, located in southern Arizona,
USA. It contains one of the largest supergene porphyry copper deposits in the world
[8]. Both sulfide and oxide ores occur in the ore body and the main sulfide minerals
are pyrite, chalcocite, and chalcopyrite. The predominant oxide minerals are chrysocolla
and malachite. According to Enders’s study [9], in the hypogene zone, copper content in the host rocks is fairly uniform (0.39%
Cu) but shows significant variations by rock-type. Chalcopyrite averages 0.56% and
ranges from 0.025 to over 2.9%, and correlates directly with the distribution of hypogene
copper grade.
In this study, two samples are studied for copper extraction under various leaching
systems consisted of different acids and oxidants. Sulfuric acid (H2SO4) is a common lixiviant for copper leaching; methanesulfonic acid (CH3SO3H, MSA) is widely used for rust and scale removers and electrodeposition [10,11]. Recently, more projects are focused on its application in the leaching process
[12-14]. Hydrogen peroxide is adopted as an alternative oxidant to ferric ion. The specific
goal of the research is to provide a comprehensive study of conichalcite dissolution
and compare the leaching behavior of two copper minerals.
2. MATERIALS AND EXPERIMENTAL METHOD
2.1 Materials
As-received samples were crushed, ground and dry screened to obtain size fraction
of 100% passing 2.00 mm and 0.075 mm, respectively. Properly sized samples were rotary-spilt
into 20 g test charges. Chemical analysis of sample A, assayed by ICP-OES following
acid digestion, showed the copper content of 0.41% as listed in Table 1. The mineral compositions were analyzed by QEMSCAN (Quantitative Evaluation of Mineralogy
by Scanning Electron Microscopy), and the results are presented in Table 2 and Table 3. In the ore sample, the main rock-forming minerals were quartz and muscovite. Conichalcite
was the dominant copper-bearing mineral and pyrite was the second one with 20.83%.
Chrysocolla and malachite contain less than 5% of copper.
The chemical assay of sample B is shown in Table 4 showing copper grade of 0.601%. Chalcopyrite was the main copper-bearing mineral
as 1% of chalcopyrite was seen in the XRD analysis result in Table 5. Since the sample was taken from the hypogene zone, it can be deduced that the copper
minerals were mainly copper sulfides. All the percentages (%) in this paper are weight
percentage (wt%).
2.2 Experimental method
Leaching tests were carried out by bottle roll tests. The pulp density of the leach
test was 6.25% with 20 g solid and 300 mL solution. The bottle roll test was run for
24 hours at ambient temperature and pressure with uncapped bottle. Kinetic sample
of 5 mL solutions were taken at 1, 6 and 24 hours using a syringe-membrane filter
(pore size 0.45 μm) and analyzed by AAS (Atomic Absorption Spectrophotometer) for
copper assay. Solution lost by sampling was compensated by addition of deionized water.
The total leached copper was calculated by the initial solution volume before taking
kinetic samples. In addition, concentration change of lixiviants was negligible by
adding deionized water to compensate the volume. Sulfuric acid and MSA are used as
lixiviants and ferric ion (added as Fe2(SO4)3·5H2O) and hydrogen peroxide (H2O2) are used as oxidants.
3. RESULTS AND DISCUSSION
3.1 Conichalcite leaching test

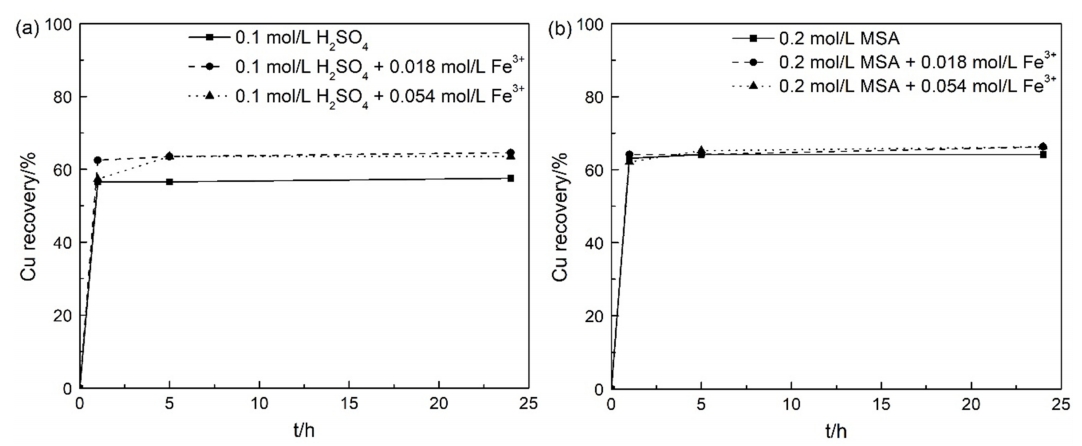

Copper recovery of sample A in sulfuric acid/MSA with ferric ion is shown in Fig 1. The copper dissolution kinetics were relatively fast and reached the maximum value
in five hours. Around 57% and 63% copper were extracted in 0.1 mol/L sulfuric acid
and 0.2 mol/L MSA solution. Copper recovery increased by 7% after adding 0.018 mol/L
ferric ion into the sulfuric acid solution and no further increase was observed with
0.054 mol/L ferric ion. However, the copper recovery was not significantly affected
by ferric ion when MSA is used as lixiviant. The highest copper extractions about
64% were observed in both conditions.

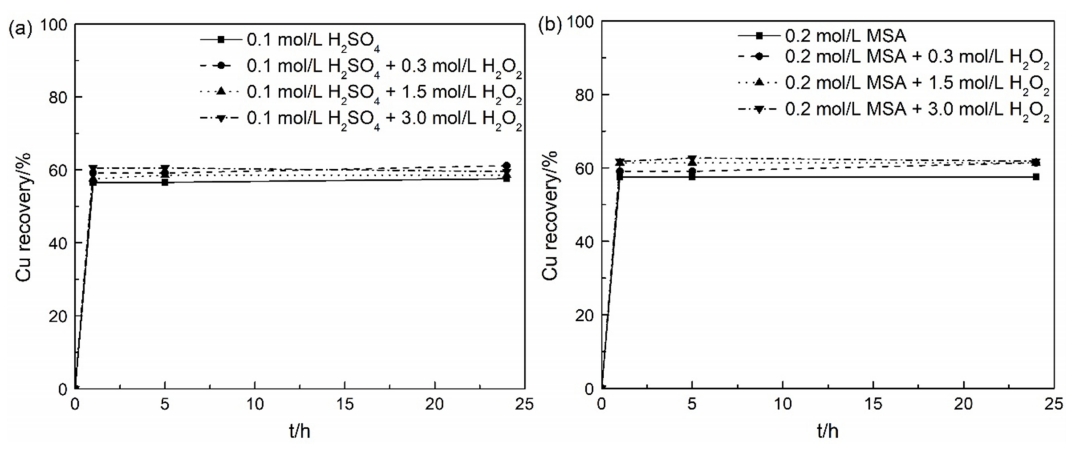

Dissolution of sample A in HO system is shown in Fig 2. The copper recoveries increased slightly even after 3.0 mol/L HO addition, indicating the copper minerals in the sample A did not show the enhanced
leaching behavior by hydrogen peroxide.
Barton et al. [2] reported that the QEMSCAN results indicated that conichalcite in the sample A was
dissolved after leaching in both conditions. The remaining copper-bearing minerals
were copper coexisted with pyrite and copper minerals under detection limit of QEMSCAN,
and they are not oxidized by ferric ion or HO in this test. The dissolution of conichalcite in acid solution can be expressed as
Equation (1).
To further study the leaching characteristics of conichalcite, –2.00 mm samples were
sieved to 4 different size fractions as shown in Table 6. The four samples were then leached by 0.1 mol/L sulfuric acid and 0.018 mol/L ferric
ion following the same procedure. The Cu contents in the heads and residues were analyzed

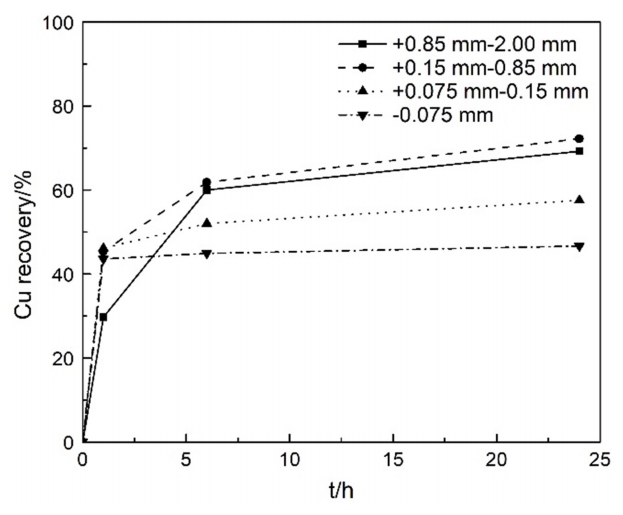

by ICP-OES after acid digestion, and leaching results are shown in Fig 3.
The copper grade in the coarse particles (>0.15 mm) was higher than the finer portion,
and higher copper recoveries were obtained. The leaching kinetics of 0.85 mm-2.00
mm particles was slowest because the copper is not fully liberated, and it took time
for the lixiviant to diffuse through cracks and fractures of the particle. After leaching
tests, the four residues showed similar copper grade, suggesting that the readily
dissolved copper were extracted under the leaching condition and the copper sulfide
was difficult to be dissolved. Further studies about mineral compositions of the four
fractions will be run by QEMSCAN.
3.2 Chalcopyrite leaching test
Unlike sample A, chalcopyrite is reluctant to be dissolved in acidic solution. High
temperature and oxidant are required to effectively leach copper from chalcopyrite.

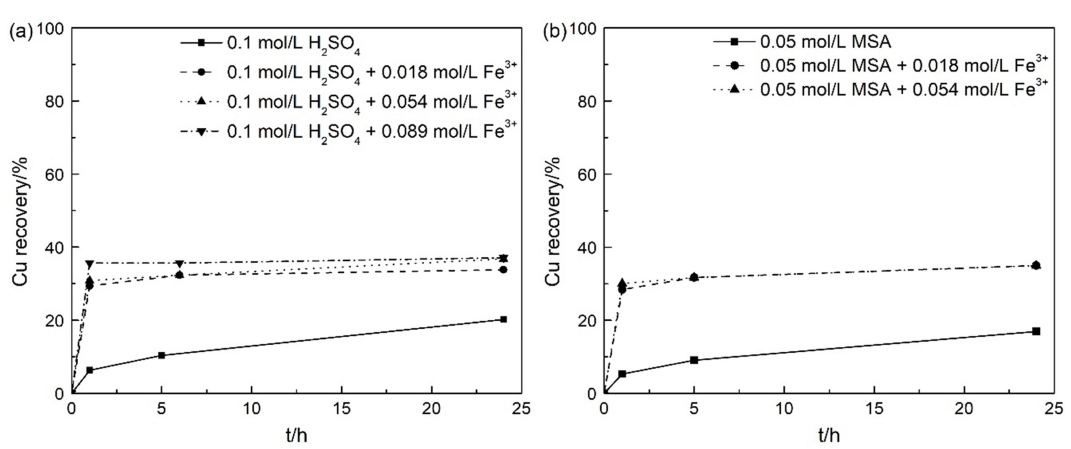

Copper extraction with ferric as an oxidant shows lower than 20% as exhibited in Fig 4. In both leaching systems (sulfuric acid/MSA with ferric ion), the copper recoveries
increased with the presence of 0.018 mol/L ferric ion. However, further increase of
copper extraction was not observed at higher ferric ion concentration. The highest
copper recovery can be achieved was 35%.
According to the mineral analysis from Section 2.2, copper existed as chalcopyrite
accounts for approximately 50%, and the remaining may be copper oxides or sulfides.
From Fig 4, copper extractions were less than 20% in sulfuric acid and MSA solution without
oxidant in 24 hours, indicating the copper oxides, or easily soluble copper minerals,
probably account for around 20% of the total copper minerals. The copper recovery
increased after ferric ion addition can contribute to the dissolution of some secondary
sulfide minerals and chalcopyrite. Theoretically, the reaction between chalcopyrite
and ferric ion can be illustrated as Equations (2)-(3) [15].
Under the conditions used, the reaction (3) is not likely happened [16]. The elemental sulfur S0 will not be oxidized to sulfate and likely forms a passivation layer on chalcopyrite
surface, resulting in the low overall copper recovery.

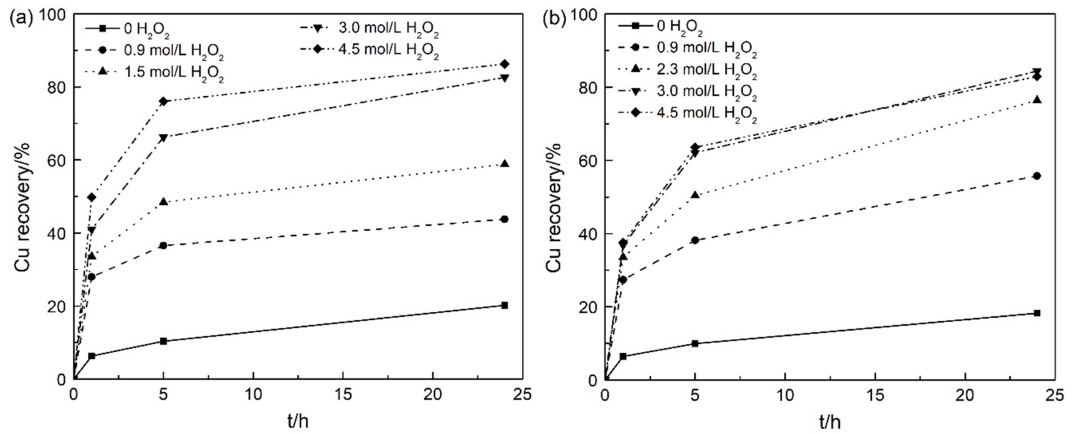

In leaching systems where H2O2 used as oxidant, as shown in Figure 5, a significant growth in the copper recovery was observed with increased H2O2 concentration. When H2O2 concentration exceeds 3.0 mol/L, over 80% extraction was achieved. This is due to
the strong oxidizing ability of H2O2. Further increase H2O2 concentration from 3.0 mol/L to 4.0 mol/L didn’t help a lot in the chalcopyrite dissolution
because the strong decomposition of H2O2 at high concentration, especially under agitation condition with solids [17].
Abou-Yousef [18] reported that a stronger oxidant called “Caro’s acid” (higher oxidizing potential
than H2O2) is formed when H2O2 reacts with sulfuric acid, as illustrated in Equation (4).
Therefore, the dissolution kinetics were faster in sulfuric acid solution than MSA
in the first hour due to the possibly formed stronger oxidant.
The dissolution of copper in the sulfuric acid/MSA and H2O2 can be shown as Equations (5) and (6) [19].
In H2O2 leaching system, chalcopyrite can be effectively oxidized and dissolved into the
leaching solution. Moreover, to obtain good leaching results, relatively high H2O2 concentration should be maintained.
4. CONCLUSION
1. Approximately 60% copper extraction was achieved in sulfuric acid/MSA solution
from sample A. The main dissolved minerals are copper oxides, and conichalcite is
readily dissolved in acid solution. The effect of oxidants is not significant in the
copper extraction.
2. Copper recovery of sample B increased with the presence of oxidants. The majority
of chalcopyrite was oxidized at higher H2O2 concentration, and over 80% copper extraction was observed with 3.0 mol/L H2O2 and either lixiviants.
3. The copper coexisted with pyrite in sample A is almost insoluble and it was not
oxidized by any oxidants in this test. For chalcopyrite in sample B, H2O2 is a better oxidant than ferric ion.
