1. Introduction

Electrical failure can be caused by the friction-induced wear debris of materials on the metallic contacts of switches and power connectors, which are widely used as electrical components [¹, ²]. In particular, electrical devices used in transportation are subjected to a variety of conditions, which can cause the malfunctioning of electrical contacts. Increased wear can occur on the electrical contacts of electrical components used in automobiles because of the small amplitude of reciprocal motion of the contacts produced by vibrations during driving [³]. This causes fretting wear, followed by the corrosion of wear debris. The agglomeration of corroded wear debris creates an insulating layer at the electrical contacts, interrupting the transmission of electrical signals. Eventually, the fretting corrosion at the contact junction will cause an electrical failure [⁴-⁶].

Copper has been widely used to fabricate electrical contacts because of its low cost and high electrical conductivity [⁷]. To improve the electrical conductivity and corrosion resistance of copper, various materials, including tin, gold, and silver, have been employed as a coating layer. However, the high expense and problems with preparing such coatings hinder the usage of these materials [⁸-¹⁰]. Also, the effect of Cu grain size on fretting wear resistance has been an issue in efforts to maintain robust electrical contact [¹¹-¹³].

Laser shock peening (LSP) is a mechanical surface treatment process. A specimen can be prepared either with or without a thin coating layer (e.g., black paint or Al and Cu foils), which absorbs the laser beam energy. Transparent materials such as glass or water, located on the specimen, are employed as a confining medium. High-energy laser pulses are applied to a thin coating layer (or directly on the specimen when no coating layer is used) through the confining medium. Then, the coating layer (or specimen) vaporizes and forms a plasma between the specimen and confining medium. By repeating the laser pulse application, a high-pressure plasma is created, resulting in the propagation of shock waves into the specimen. Plastic deformation, compressive residual stress, and grain refinement are introduced at the sub-surface of the specimen if the shock wave is sufficiently large [¹⁴]. Subsequently, the laser shock-peened specimen will exhibit superior fatigue strength, wear resistance, and corrosion resistance [¹⁵, ¹⁶].

To the best of our knowledge, only a few studies have investigated the influence of the LSP process on the mechanical properties and microstructures of Cu [¹⁷-¹⁹]. Moreover, the effect of this process on fretting corrosion has not been adequately studied. Therefore, in this study, laser shock peening without coating (LSPw/oC) process was performed on pure Cu metal using different laser energy densities, to investigate the impact of this process on the mechanical properties and microstructures of Cu. As a result, increased microhardness, compressive residual stress, and grain refinement were introduced at the near-surface of the pure Cu specimen used in this study. A fretting test was then conducted to examine whether LSPw/oC could improve the durability of electrical contacts.

2. Experimental details

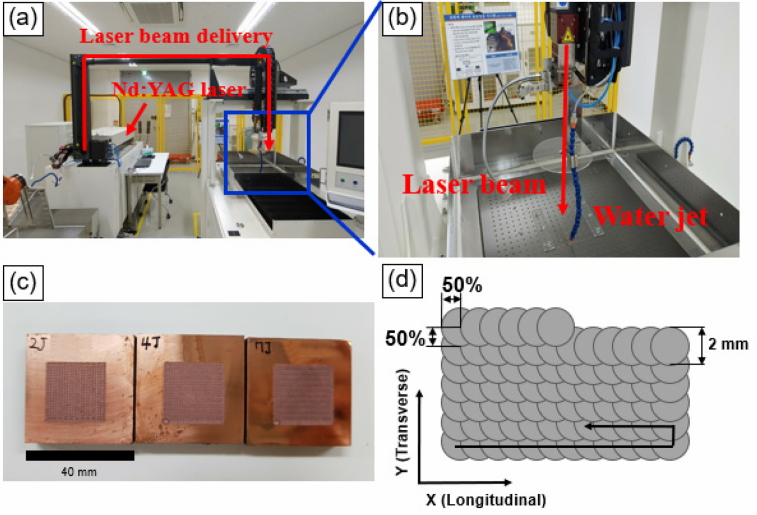

A high purity Cu plate (purity: 99.99 wt%), hereafter referred to as the base metal (BM), was annealed at 180 °C for 1 hr. A Q-switch Nd:YAG laser (Powerlite Furie, Continuum Inc.) with a wavelength of 1064 nm, pulse duration of 12 ns, and repetition rate of 10 Hz was used for the LSPwC process as shown in Figure 1 [²⁰]. The laser beam diameter was 2 mm with a uniform flat-top energy distribution. Distilled water was used as the confining medium, and no ablative coating material was employed. The overlap ratio of the laser beam was 50% in both the x- and y-directions, corresponding to the longitudinal and transverse directions, respectively, as sketched in Fig 1(d) [²¹, ²²]. The applied laser energies were 2, 4, and 7 J, corresponding to laser energy densities of 5.3, 10.6, and 18.6 GW/cm², respectively.

The hardness of the BM and LSP Cu were measured using Vickers hardness tester (MMT-X7, Matsuzawa) with a load of 200 gf and holding time of 10 s. The qualitative analysis of BM and LSP Cu was performed using an X-ray diffractometer (SmartLab, Rigaku) with the Cu-Kα radiation. Additionally, the residual stress was measured at every 200 μm of depth by X-ray diffractometer (D/MAX-2500/PC, Rigaku) with Cu-Kα radiation using a two-angle sin2Ψ technique at the {111} plane. For electron backscatter diffraction (EBSD, Quanta 200 FEG, FEI) analysis, specimens with dimensions of 10 mm × 10 mm were prepared using a low speed cutting wheel. Then, they were fine polished using 1 and 0.04 μm colloidal silica suspension. The EBSD analysis was conducted using a 5.5 μm beam step size. OIM Analysis™ v8 was employed to determine the average grain size.

Wear resistance was assessed by fretting test, utilizing a reciprocating friction instrument (RFW160, NeoPlus) shown in Figure 2. The average surface roughness, R_a, of the polished specimens used for the fretting test was less than 0.2 μm. Fine-polished Cu specimens with dimensions of 40 mm (W) × 40 mm (D) × 10 mm (H) were used for the fretting test. A S45C steel ball with a 9.5 mm diameter was used as the counter material. The fretting test was conducted for 10,000 fretting cycles at a normal load of 10 N, frequency of 4 Hz, and displacement amplitude of 300 μm. During the fretting test, the resistance contact, R_c, between the Cu specimen and S45C steel ball was simultaneously measured using a four-point probe setup. The total wear loss was measured via laser microscopy (VK-8710, Keyence) after the fretting test. Triplicate measurements were conducted, and the obtained wear losses were averaged.

3. Theoretical calculation

Fabbro et al. [²³] suggested a shock wave pressure model based on an assumption of constant laser power density, I₀. The laser-induced plasma pressure, P₀, can be described as Eq. (1).

where the α is the ratio of absorbed laser energy to the thermal energy of the plasma, and it is considered to be 0.11 when water is the confining medium and copper is the specimen [²⁴]. Z is the shock impedance, defined as 2/Z = 1/Z₁ + 1/Z₂. Here, Z₁ (=1.44 × 10⁶ g/cm²s) is the shock impedance of Cu and Z₂ (=0.165 × 10⁶ g/cm²s) is the shock impedance of water. Therefore, P₀ can be estimated to be 2.32 GPa for the laser energy density, I₀, of 5.3 GW/cm². The depth of residual stress formed by the LSPw/oC process can be determined by calculating the plastic affected depth (PAD) as proposed by Peyre et al. [²⁵, ²⁶]. It can be calculated by Eq. (2)

where P_max is the peak plasma pressure, and HEL is the Hugoniot elastic limit, which is 0.8 GPa for the high-purity Cu [²⁷]. C_el and C_pl are the elastic and plastic wave speeds of Cu, and are material constants related to the first Lamé constant of the material, λ, the shear modulus of the material, G, and density of material, ρ. These are calculated to be 4,760 m/s and 3,944 m/s, respectively at 300K [²⁸]. The τ is the full-width at the half maximum of the shock wave duration, and it can be determined by multiplying a laser pulse duration of 2.5 [¹⁷]. As a result, the PAD can be estimated to be 650 μm for the LSP at a laser energy density of 5.3 GW/cm².

4. Results and discussion

Figure 3 shows the cross-sectional microstructures of the BM and LSP Cu at laser energy densities of 5.3, 10.6, and 18.6 GW/cm². At the sub-surface, relatively smaller grain sizes were detected for the LSP Cu at 5.3 and 10.6 GW/cm² compared with those of the BM. Moreover, sharp-edged grains were observed for the LSP Cu at 5.3 and 10.6 GW/cm² due to the grain refinement induced by LSPw/oC. However, at 18.6 GW/cm², relatively larger round-edged grains were observed, as compared with those of the BM. This may have been caused by the melting and recrystallization of Cu due to the high laser energy density, 18.6 GW/cm², which has been typically observed when the coating on the sample surface has been removed. The coating layer used in the common LSP processes is intended to reduce the damage to the sample surface. In the LSPw/oC process, however, a large amount of thermal energy can also be applied to the subsurface region when the laser power is increased [²⁹, ³⁰]. Further evidence of recrystallization due to laser thermal energy using 18.6 GW/cm² was the observation of dislocation density, by TEM analysis [²⁰]. Microstructures exposed to laser energy densities of 5.4 and 10.6 GW/cm² possess dense dislocation structures, such as dislocation tangles and dislocation walls, which infers significant plastic deformation took place during the LSPw/oC. Those dislocation structures, however, disappeared in the LSPw/oC sample using 18.6 GW/cm². Moreover, nano-grains were formed throughout the subsurface region of the sample [²⁰].

Figure 4(a) and (b) show the unique color map (UCM) from the EBSD analysis of the cross-sectional microstructure for BM and LSP Cu at 5.3 GW/cm². Grain refinement and twin structures were induced by the LSPw/oC process. At a depth down to 1000 μm from the top-surface, the average grain size was found to be 159.3 μm for the BM, and it decreased to 99.3 μm for the LSP Cu. Grain refinement produced by the LSPw/oC process was detected up to a depth of approximately 1,000 μm. The average grain size increased to 133.9 μm at a depth from 1000 to 1500 μm and 159.2 μm at a depth from 1,500 to 2,000 μm. Figure 4(c) displays a grain orientation spread (GOS) map of the LSP Cu treated at 5.3 GW/cm², demonstrating a relatively higher misorientation among grains at the subsurface area where LSP was applied than in the bulk region.

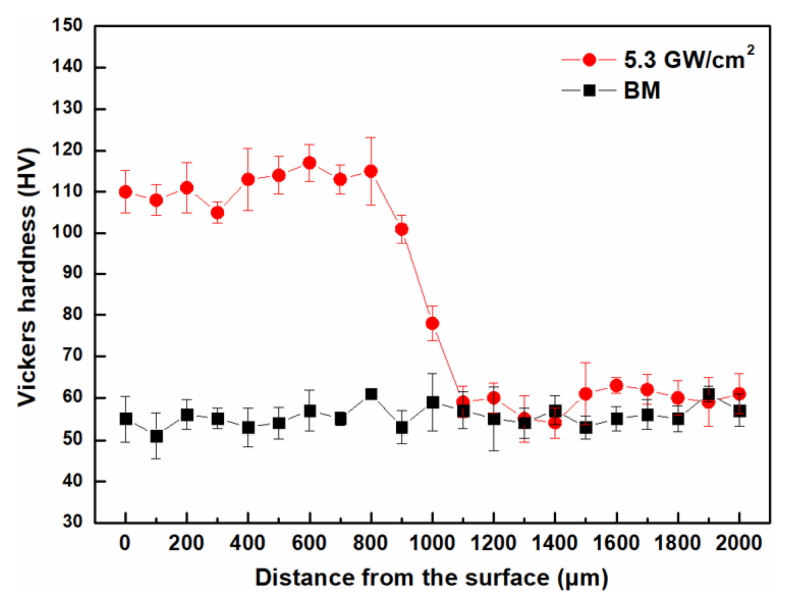

Figure 5 plots the microhardness as a function of distance from the surface, before and after the LSPw/oC process. The surface hardness of the BM was determined to be 55 HV, while 110 HV of surface hardness was measured for the LSP Cu at 5.3 GW/cm². The increased microhardness was maintained down to a depth of 800 μm, and it began to decrease thereafter. Eventually, a microhardness comparable to that of the BM was obtained at a depth of 1100 μm. The increase in microhardness was attributed to the microstructural evolution induced by the LSPw/oC process.

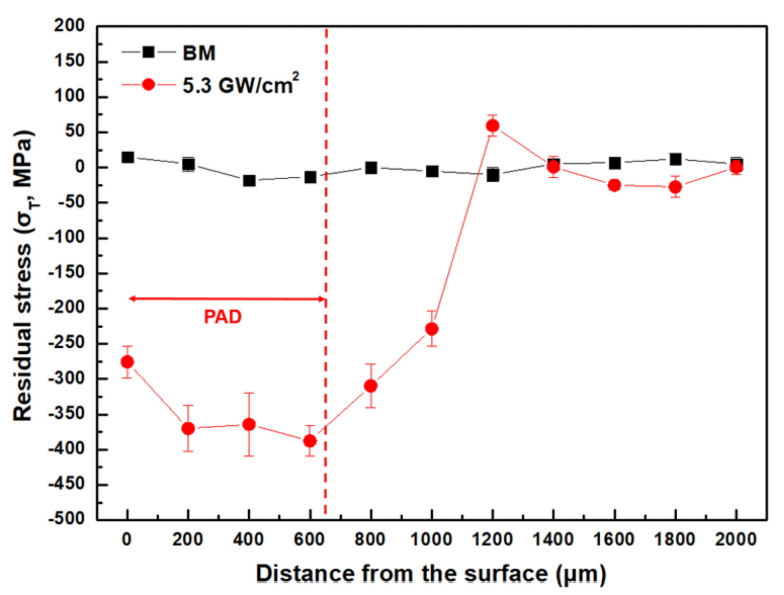

Figure 6 demonstrates the residual stress as a function of depth from the surface for BM and LSP Cu at the laser energy density of 5.3 GW/cm². A marginal tensile residual stress was identified at the surface of the BM, while a compressive residual stress, maintained down to a depth of 1,000 μm, was observed for the LSP Cu. The observations of the microhardness and residual stress coincided well with those in the EBSD analysis in terms of the depth affected by the LSPw/oC process. The experimental PAD value, which was 650 μm, was larger than the calculated PAD values based on Fabbro’s and Peyre’s models. The experimental PAD may have been induced by a combination of thermal and shock wave propagation effects due to the absence of a protective coating layer [³¹]; this would have resulted in a relatively larger PAD than the calculated PAD, which only considered the shock wave propagation.

The fretting test was conducted for BM and LSP Cu to estimate wear resistance and the durability of the electrical contact. For the BM, the average coefficient of friction (COF) and total wear loss were found to be 0.363 and 1.58 × 10^-3 mm³, respectively. In contrast, for LSP Cu, the average COF was 0.325, and total wear loss was 0.97 × 10^-3 mm³ for LSP Cu at 5.3 GW/cm². Relatively smaller values of COF and total wear loss were detected in the LSP Cu, compared to those of the BM.

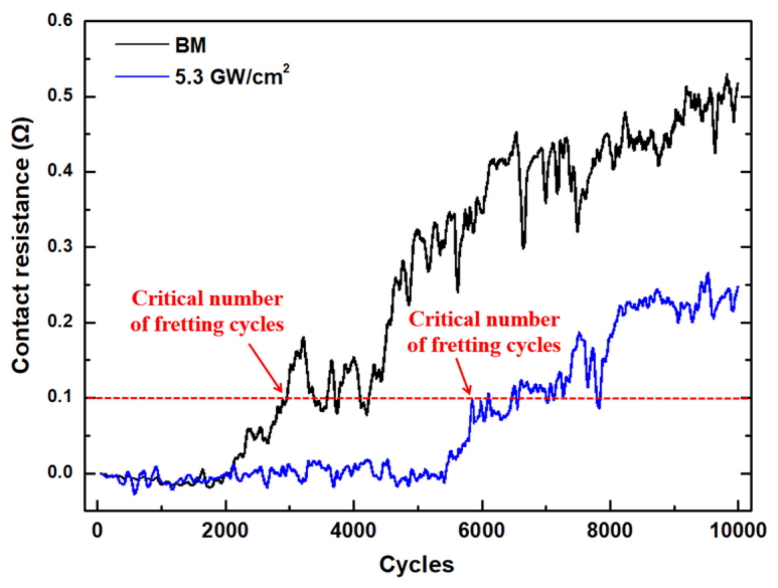

Figure 7 shows the R_c as a function of the fretting cycles. In this study, the critical number of fretting cycles is defined as the number of fretting cycles before which an electrical contact failure occurs, and where R_c exceeds 0.1 Ω for more than 10 subsequent cycles. In the case of BM, the critical number of fretting cycles was 2,930, while the critical number of fretting cycles for LSP Cu at the laser energy density of 5.3 GW/cm² was found to be 5,849. The delay in electrical failure in the LSP Cu was caused by a smaller amount of wear loss, compared to that of BM. The lower wear loss caused reduced wear debris accumulation and layer generation, which otherwise would have hindered electrical conduction [³²]. Therefore, the LSP Cu maintained a low level of R_c showing greater durability.

5. Conclusion

In this study, the LSPw/oC process was performed on high-purity copper. At a laser energy density of 5.3 GW/cm², the laser shock-peened copper showed an increased microhardness and the formation of a compressive residual stress, down to a depth of around 1000 μm. Additionally, grain refinement and twin structures were observed for the laser shock-peened copper via EBSD pattern analysis. The improvement in mechanical properties and microstructure evolution induced by LSPw/oC in the pure copper resulted in superior wear resistance (i.e., a low coefficient of friction and wear loss) compared to the base metal. This led to low electrical contact resistance, and a delay in the failure of the electrical contact during the fretting test.
