1. Introduction
The Charpy impact test, one of the fracture behavior tests, is a method for measuring
material properties such as the ductility or toughness of materials. The method measures
the amount of energy that the materials absorb before fracture, and is used not only
to indicate the toughness of the material but also to identify ductile-brittleness
changes according to temperature [1-2]. The percentage of shear area is calculated based on the fracture area which is
judged directly by the analyzer with the naked eye. The method is not only susceptible
to the subjective judgment of the analyzer, but also has the problem that accurate
quantitative analysis is impossible. To overcome these deficiencies, a new method
based on image processing is proposed in this work. The fracture analysis method proposed
in this study is based on a program that can automatically calculate the percentage
of ductile and brittle fractures using an image processing technique. To apply the
proposed automatic fracture analysis program, fracture images obtained through an
optical microscope should be converted into new images first for a specific purpose.
The proposed method can selectively distinguish the brittle fracture area from the
entire fracture area and automatically calculate the percentage of ductile and brittle
fracture areas quantitatively.
2. Theoretical Background
2.1 Charpy Impact Test
The impact test includes an impact bending test, impact twisting test, impact tension
test and impact compression test according to how the external force is applied. The
most common test is the impact bending test which usually involves Charpy and Izod
impact tests. In the Charpy V-notch impact test, the notched part of a specimen is
placed on the center horizontally after fixing it on both hinges of the lower part,
and a pendulum is lifted to a constant height and dropped. It determines the lowest
height at which the specimen is impacted and broken. This height is measured to calculate
the energy absorbed by the specimen.
It is also possible to distinguish between the ductile and brittle fractures using
the characteristics of the fracture area of the specimen after the impact test. As
a result, the Charpy V-notch impact test can be used to obtain various data, including
the absorbed impact energy, percentage of ductile fracture area and material expansion
[3-4].
DBTT represents the specific temperature at which materials with ductility characteristics
become brittle as temperature decreases. Brittleness is an easily observed phenomenon
in metal materials, but the mechanism of this transition has not yet been clarified
sufficiently [5]. DBTT is determined using the Charpy impact test to avoid brittle fracture in metal
materials. Toughness indicates the energy absorbed by the materials when they are
broken. Ductile materials absorb a lot of energy before they are broken with a large
transformation. On the other hand, brittle materials break apart with only a small
transformation [6]. DBTT is usually considered to be the temperature corresponding to the point where
half of the impact energy is absorbed by the metal [7].
The fracture area of the metal specimen is usually observed using an optical microscope
method called fractography. The fracture area of the specimen is divided into four
parts, for each characteristic mechanism: flat fracture, shear lip, crack initiation
and final fracture [6,8]. However, it is common to divide the fracture into ductile and brittle fractures.
Ductile fracture indicates a border of the specimen with characteristic lusterless
and dark looking features, and brittle fracture represents the center of the specimen
that relatively looks glossy and bright. The temperature that causes 50 percent ductile
and brittle fractures is called the fracture appearance transition temperature (FATT)

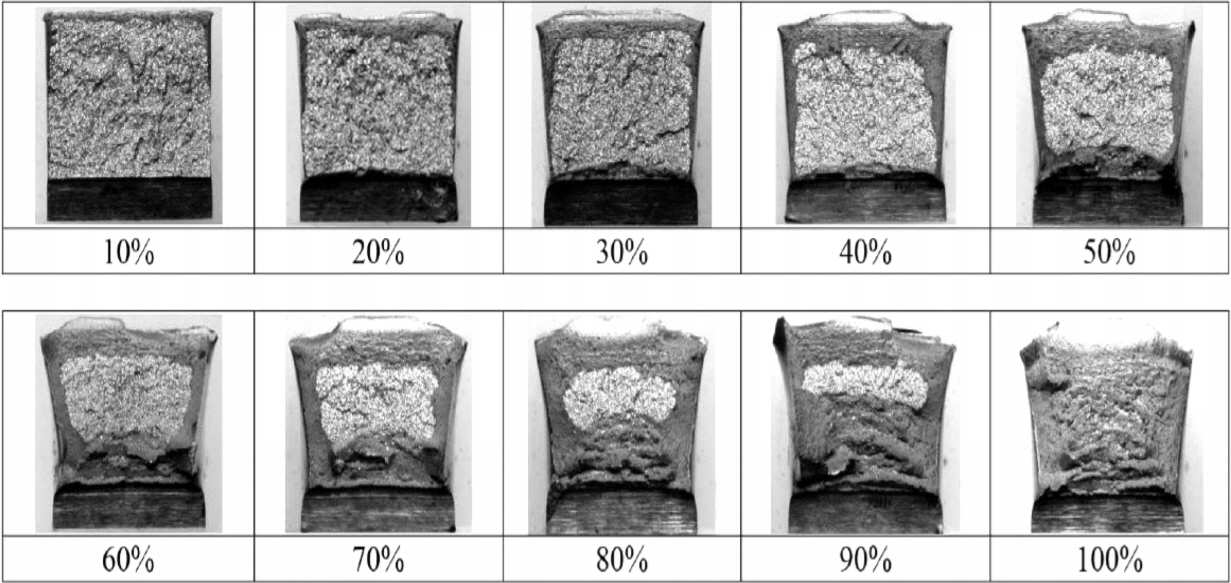

[9]. As shown in Fig 1, the analyzer needs to provide a visual judgment based on the criteria specified
by ASTM E23 [10]. However, it is well known that accurate analysis results cannot be obtained using
the ASTM standard criteria.
2.2 Image Processing Technique
To resolve the related problems involving the analysis of the Charpy impact test based
on ASTM standard, a new method based on image processing technique was proposed to
automatically calculate the percentage of the ductile and brittle fractures. In this
method, texture segmentation is applied to distinguish the shapes in an image, using
textural differences, after converting an RGB fracture image from the optical microscope

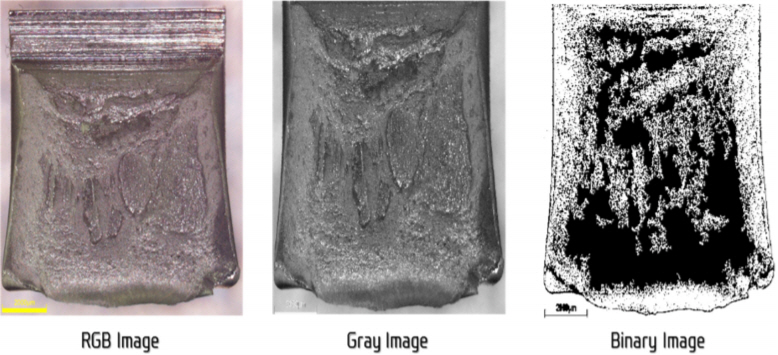

into a gray image [11]. As shown in Fig 2, a binary image with pixel values of only 0 and 1 can be obtained as a final image.
It is necessary to convert the RGB image to a binary image in order to calculate the
ductile fracture quantitatively. The final binary image consists of 0 and 1 pixels.
The parts with pixel values of 1 correspond to the brittle fracture area and those
with pixel values of 0 represent the ductile fracture area, as shown in Fig 2. As a result, counting just the number of 0 pixels in the entire area automatic calculates
the percentage of ductile fracture.
3. Results and Discussions
Sample 1 was prepared to verify the performance and accuracy of the automatic fracture
analysis technique proposed in this study. The RGB fracture image of Sample 1 obtained
from the optical microscope was converted into the gray image shown in Fig 3. The conversion to the corresponding gray image was accomplished by applying guided
image filtering, which is one of the filtering techniques used in image processing.
Filtering is a basic operation used in image processing and computer vision to modify
or improve an image. Bilateral filtering is one of filtering techniques commonly used
for edge-preserving and noise-smoothing [12]. It is well known that the guided image filtering used in this study is as effective
as bilateral filtering but performs better near the edge [13-14].
A binary masked image was created based on the fracture image using the guided image
filtering. The binary masked image changes all values greater than a critical value
to 1, and all other values to 0, converting the two-dimensional gray image into a
binary image. The Otsu method is usually used to select a critical value by minimizing
the distribution within the class of binary black and white pixels used to create
the binary image [15-17]. As a result, the internal pixel value in the masked image is set to 1 and the external
pixel value to 0.Fig. 4.
Three texture filter functions can be used to filter the image using the standard
statistical measurements: a range filter, standard deviation filter, and entropy filter
[18-19]. The range filter calculates the local range of the image, the standard deviation
filter calculates the local standard deviation of the image, and the entropy filter

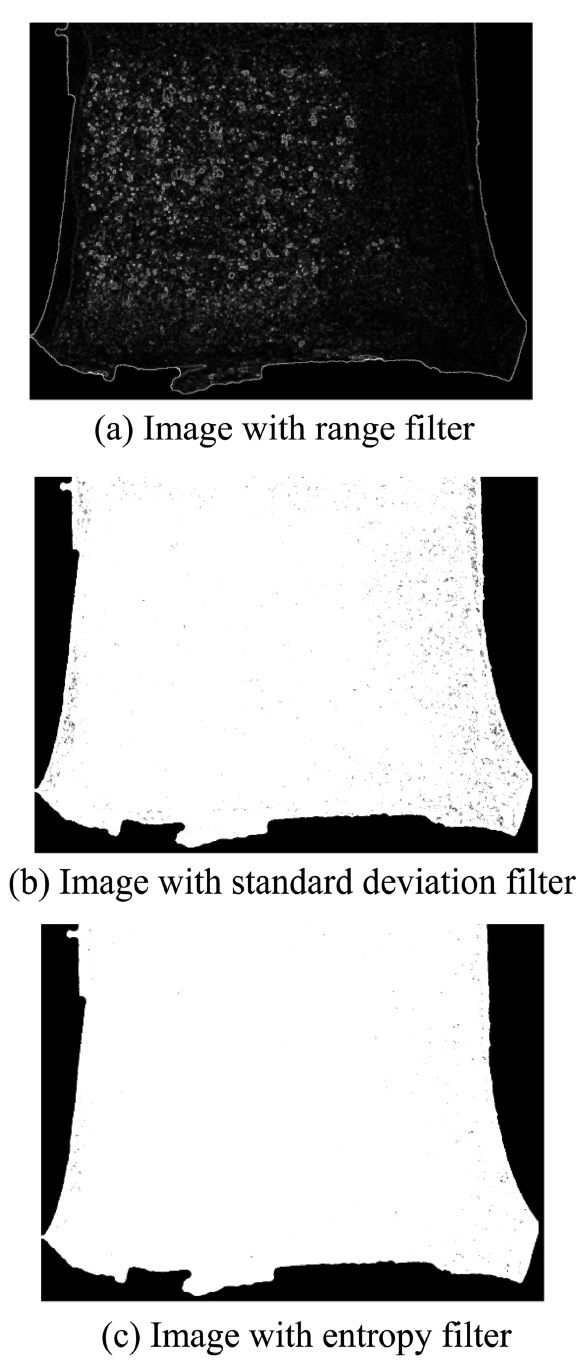

calculates the local entropy of the image [20]. Fig 5 shows the results when the three texture filter functions are applied to the masked
image of the fracture area. When both the standard deviation filter and the entropy
filter are applied, we can see that the brittle fracture area rarely appears in the
image. On the other hand, the range filter confirms that the brittle fracture is separated
from the ductile fracture, and makes it very visible in the image. For this reason,
among the types of texture filter functions the range filter was selected and applied
in the present work.

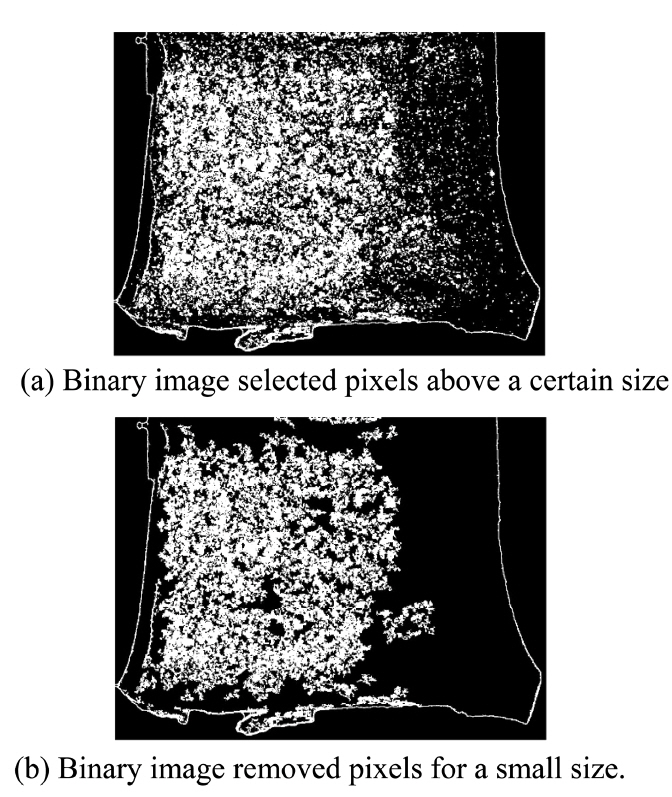

Pixels above a certain size were selected in the binary image with the range filter,
and the resulting final image was obtained by removing small pixels, as shown in Fig 6.

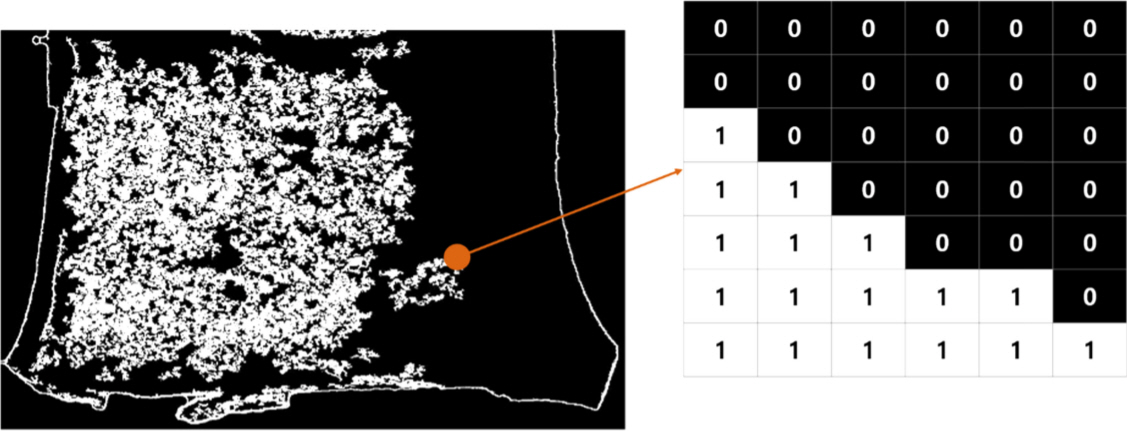

In Fig 7, the white area depicts the brittle fracture, with the pixel values set to 1, and
the black area represents the ductile fracture with the pixel values set to 0 in the
final image.

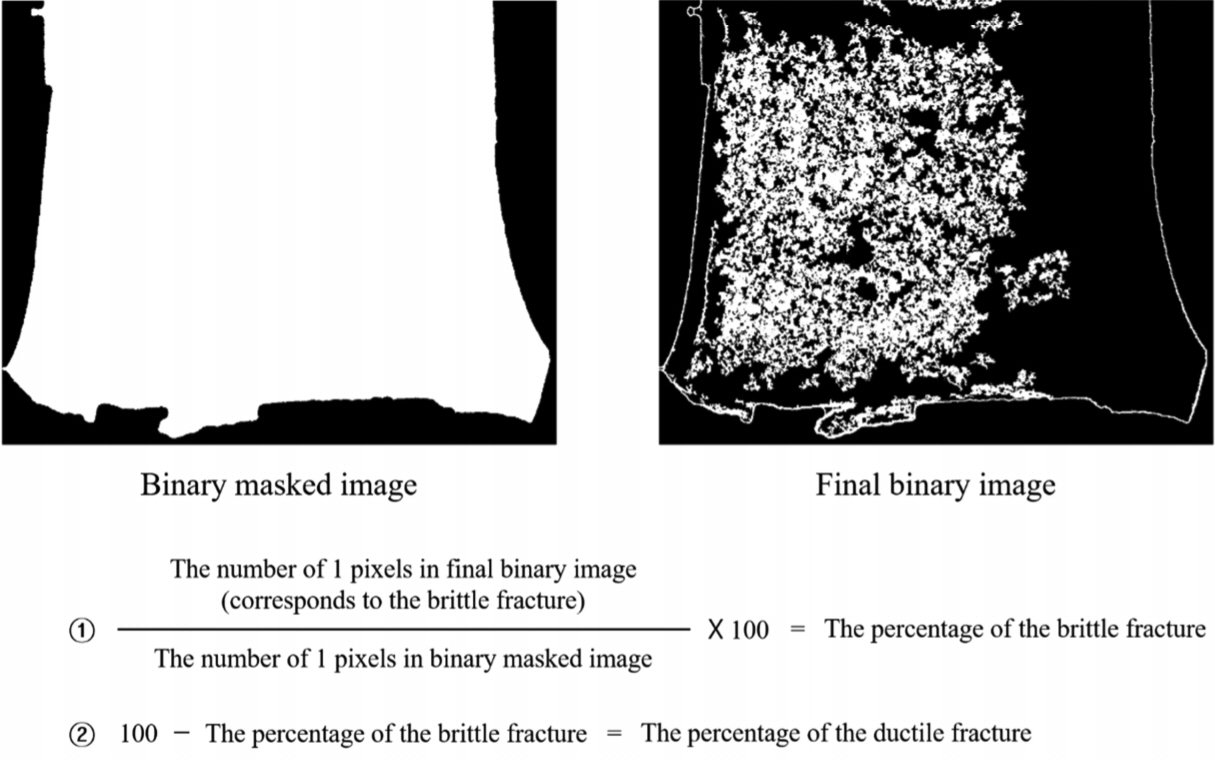

The number of pixels with values set to 1, which represent the brittle fracture, were
divided by the total number of pixels in the entire fracture area to obtain a more
accurate percentage of brittle fracture, as shown in Fig 8.
The percentage of ductile fracture can also be calculated by counting the number of
pixels with values set to 0, which indicates ductile fracture. The obtained results
were validated by applying the automatic fracture analysis program based on the image
processing developed in this study after preparing samples with different fracture

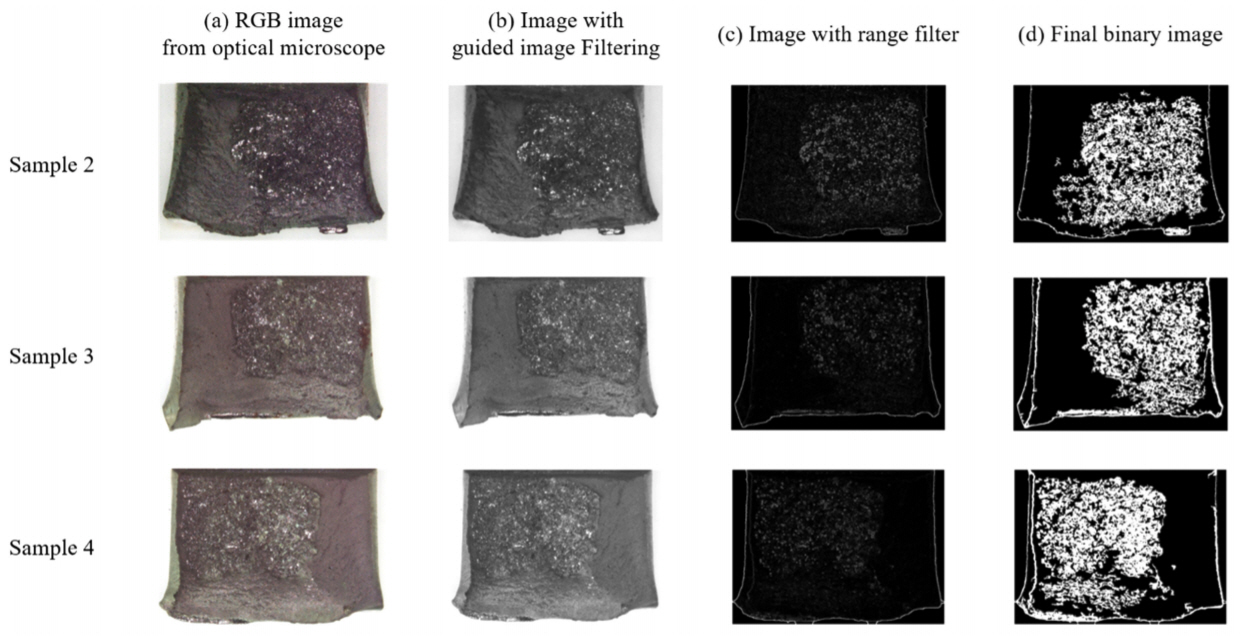

shapes than Sample 1. The resultant images are shown in Fig 9. We can see that the brittle fractures are clearly distinguished in the final binary
images in Fig 9(d).
Table 1 shows the percentage of ductile and brittle fractures calculated by counting the
number of pixels with values set to 0 and 1 in the binary images, obtained from Samples
1 to 4. In conclusion, it was confirmed that the percentage of ductile and brittle
fractures could be quantitatively calculated by using the automatic fracture analysis
program based on image processing.
4. Conclusions
The Charpy impact test was used to identify the transition from ductility to brittleness.
The percentage of ductile and brittle fractures that was calculated based on the visual
judgement of the fracture area by the analyzer could not be used to perform an accurate
quantitative analysis.
In this work, a new fracture analysis program that calculates the percentage of the
ductile and brittle fractures was proposed and compared with various image processing
techniques. It was found that the proposed method can selectively distinguish the
brittle fracture from the entire fracture area, and that the percentages of ductile
and brittle fractures can be quantitatively calculated as well. The present method
is expected to be useful for calculating a precise DBTT, to avoid brittle fracture
when designing metal products.
