3.1 Nanostructured copper formed by nucleation and growth control during evaporation

During the conventional thermal evaporation process under high vacuum, the evaporated atoms have a long mean free path. The size of adatoms arriving at the substrate are so small that they have high surface mobility. Due to the promoted surface diffusion the adatoms can easily move to defect sites like kinks, and heterogeneous nucleation and growth occur. If the working pressure increases, on the other hand, the evaporated atoms collide with the gas molecules with increasing frequency, causing homogenous nucleation and growth, producing large clusters of the source material before reaching the substrate. On the substrate, the surface mobility of the clusters is too low to diffuse, and therefore, they easily form nanoparticle aggregates.

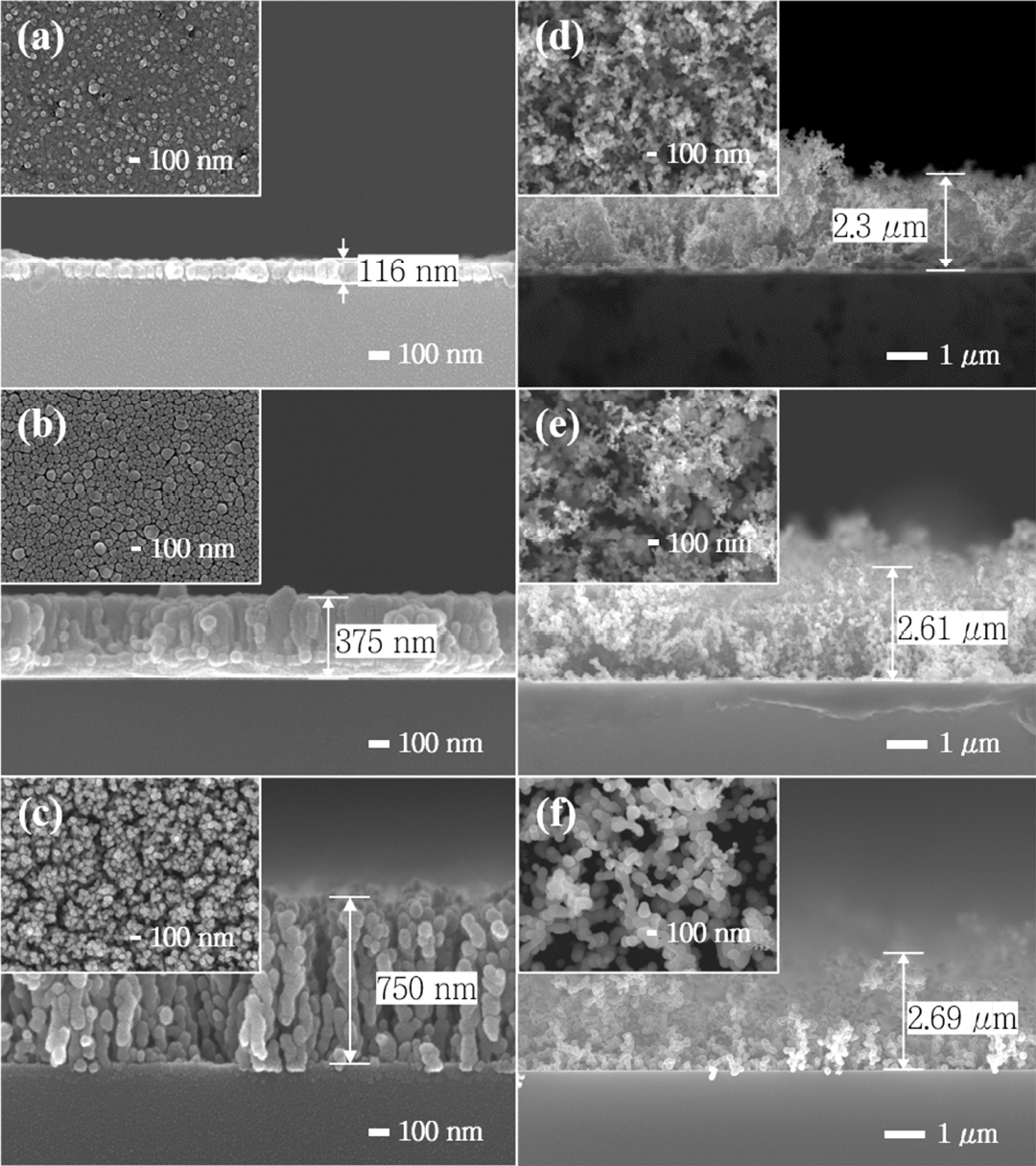

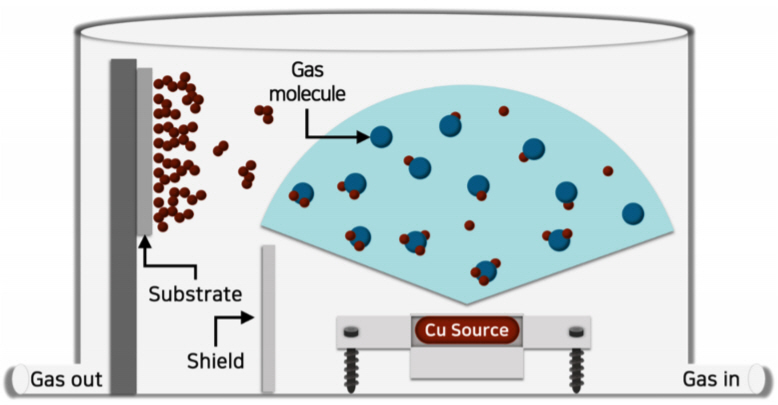

This nucleation and growth-controlled process to fabricate nanoporous structures is described schematically in Fig 1. By applying this process to copper, various copper film morphologies were obtained at different working pressures, as shown in Fig 2. Dense thin films of copper were obtained under high vacuum, resembling the typical thermal evaporation process of metals. However, as the pressure was increased to 0.01 Torr, columnar grains began to form with surface cracks.

Interestingly, this columnar structure became more obvious as the pressure increased to 0.1 Torr, where the individual column had a high aspect ratio and pores were found between these columns. As the pressure increased further, the pattern of growth changed. At 1 Torr and above, highly porous structures were formed and the nanoporous films became much thicker than the columnar structured films grown at lower pressure. As shown in the SEM images, these coral-like nanostructures consist of nanoparticle aggregates, and much larger pores are observed. This is because the nanoclusters formed during the traverse to the substrate are physically adsorbed onto the previously grown nanostructures and do not move on the surface due to the low surface mobility, as mentioned earlier. As a result, some large pores extend to the bottom of the film so that the substrate surface is partially exposed.

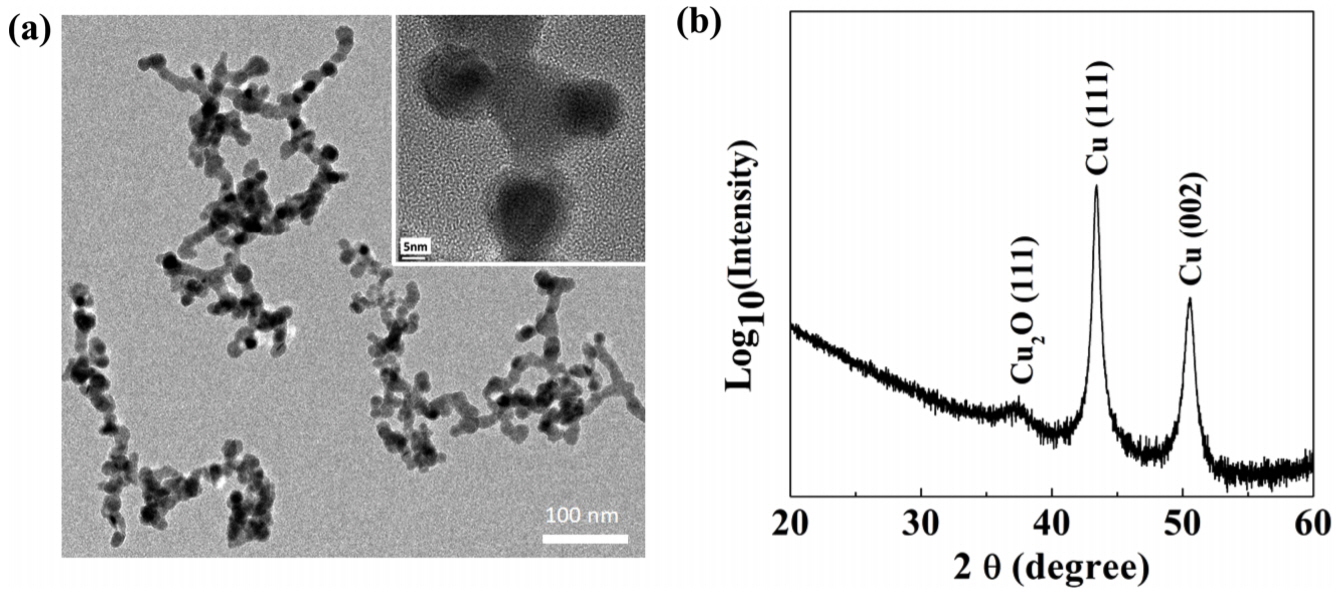

Because the pores are so large, the BET method cannot be applied to measure porosity. Instead, the porosity can be estimated by the weight of the deposits, the dimensions determined from SEM images and the theoretical density of copper. The porosity increased from 14.14% (0.01 Torr) to 87.89% (1 Torr) as expected from the SEM analysis. Note that the individual nanoparticles are crystallographically bonded to each other, as verified by TEM analysis (Fig 3(a)) although physical adsorption weakens the adhesion of the nanoparticle aggregates to the substrate.

Because the whole structure consists of nanoparticles, the porous copper is slightly oxidized, as confirmed by XRD analysis in Fig 3(b). The diffraction peaks of the nanostructure were indexed to pure copper with lattice constant of a=3.61 Å, where the diffraction peaks at 2θ values of 43.4148° and 50.5632° are ascribed to the reflection of the (111) and (200) planes of the cubic copper (JCPDS No. 98-005-3756), respectively.

There is an additional peak that corresponds to Cu₂O (111) viewed in log scale. The oxidized phase might exist at the bonded region, similar to nanoporous Sn [²⁰]. This can be clearly established with more precise TEM analysis.

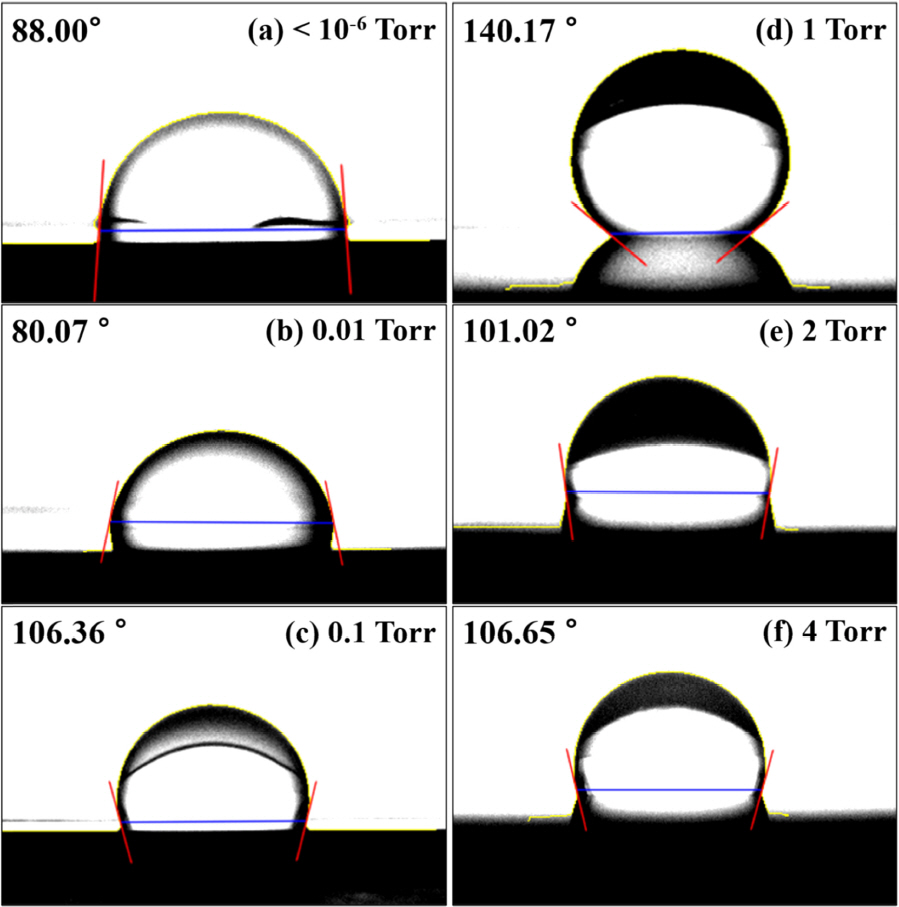

The different surface states were further examined by measuring the contact angles of water droplets, as summarized in Fig 4. As the morphologies evolve from a dense structure through porous columnar structure to nanoporous structure, the hydrophobicity becomes enhanced. There was no obvious tendency in the contact angle beyond 1 Torr, which might be due to the irregularly formed surface and the reduced surface coverage.

3.2 Changes in optical reflectance and SERS activity

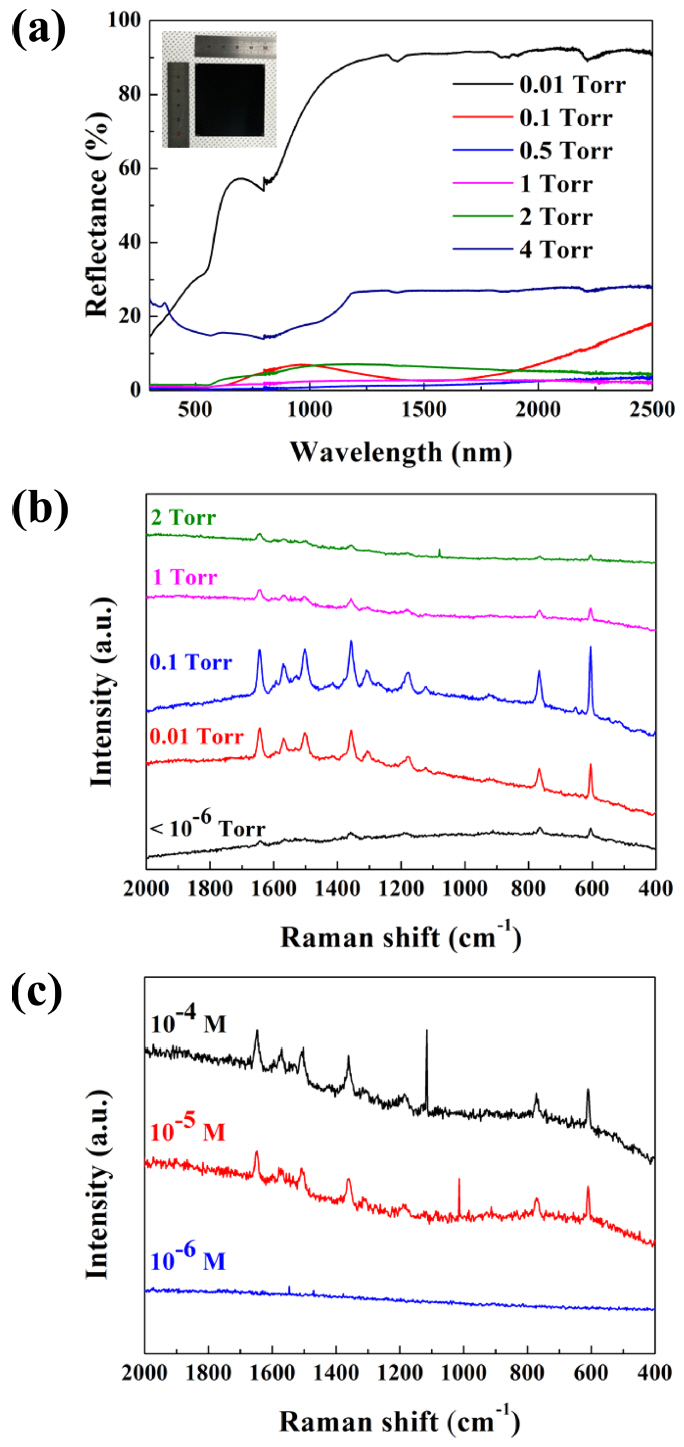

Along with the evolution of the structures depending on the deposition pressure, the optical properties of the copper nanostructures changed dramatically, as shown in Fig 5(a). Thin films grown under high vacuum (< 10^-6 Torr, not shown) and at 0.01 Torr showed high reflectance across the visible and NIR range, as is generally expected from the shining surface of metallic copper films. However, as the pressure was increased over 0.1 Torr, the resulting copper nanostructures absorbed visible and NIR spectra. In particular, copper nanostructures grown at 0.5 Torr and 1 Torr showed a reflectance of less than 5%, which makes these nanostructures black, as presented in the inset. The slight increase in reflectance of the nanostructure grown at 0.1 Torr is because the structure was in the middle of transition, from a compact dense film to a highly porous film. The high reflectance of the copper nanostructure formed at 4 Torr was caused by reflection from the uncovered area of the substrate.

The nanostructures with multiple nanogaps, as found in the SEM and TEM analyses, and the optical properties that absorbed most of the visible light led us to the possible application in SERS, where Raman scattering signals are enhanced by adapting various nanostructures on the metal surfaces. Due to the tremendous number of nano-gaps in the columnar nanostructure (Fig 2(c)) as well as the nanoparticle aggregates (Fig 2(d)-2(f)), these structures are expected to have greatly enhanced SERS activity, even though SERS activity is known to be enhanced only by nanostructured noble metals such as gold and silver.

To verify this hypothesis, we examined the SERS activity of the various nanostructures grown at different pressures. Compared to the compact thin film, the columnar porous structure grown at 0.1 Torr exhibited the highest SERS activity for the R6G molecules, of 10^-4 M, as shown in Fig 5(b). This can be explained by the hydrophobicity and aspect ratio of the copper nanostructures. To achieve high SERS sensitivity, analytes should be located in or around the socalled “hot spots” which are normally formed in sub-10 nm gaps between neighboring plasmonic nanostructures. Hydrophobic nanostructures have advantages over hydrophilic ones, in that matter and probe molecules can be effectively accumulated on the SERS-active sites [²¹,²²]. According to previous studies [²³-²⁵], as the aspect ratio increases, the light scattering inside the structure is enhanced because the number of probing molecules within the detection volume increases as well. These factors contribute to the stronger light-metal and light-molecule interaction, which then leads to higher SERS activity.

Note that the more highly nanoporous structures synthesized at 1 Torr and above, instead demonstrated much reduced SERS activity. This supports previous studies that surface roughness offering nanosized gaps for localized surface plasmonic resonance (LSPR) does not play a substantial role, but the shape of the nanostructures does [²⁵-²⁷].

The SERS sensitivity of the copper nanostructure fabricated at 0.1 Torr was also measured using various concentrations of R6G from 10^-4 to 10^-9 M. The SERS intensity was still observable at 10^-5 M although SERS activity was almost lost below 10^-6 M. Further research is being conducted to enhance SERS sensitivity.
