1. Introduction

Skutterudites are the most suitable thermoelectric material for exploiting the phonon-glass and electron-crystal concept [¹]. They are also some of the best thermoelectric materials for thermoelectric power generation applications, because they operate efficiently at waste heat temperatures between 500–900 K [²-⁵]. Skutterudite has the basic structure of 8MX₃, with two large voids per unit cell, where M represents group A^VIII elements (Fe, Co, Ni, Ru, Rh, Pd, Os, Ir, Pt) and X stands for group B^V elements (P, As, and Sb). Filled skutterudites, which incorporate phonon scattering centers, have been studied in efforts to improve thermoelectric performance. The guest atoms (R: filler or rattler) in the voids are filled with skutterudite [⁶-⁸]. RFe₄Sb₁₂ is usually used for the p-type filled skutterudite, but [Fe₄Sb₁₂] is not stable due to deficient valence electrons, and requires four additional electrons to stabilize the skutterudite phase [⁹,¹⁰]. Skutterudite can be formed as R⁴⁺[Fe₄Sb₁₂]^4- by filling the voids, but most elements incorporated as fillers exist as valences of R²⁺ and R³⁺. As a result, the number of valence electrons is insufficient [¹¹], and charge compensation is needed in the form of R²⁺[Fe₃NiSb₁₂]^2- or R³⁺[Fe₃CoSb₁₂]^3- by substituting Ni or Co at the Fe site [¹²].

Filling the voids in the skutterudite structure is a very effective method for reducing lattice thermal conductivity [³,¹³-¹⁵] because each filler atom acts as a phonon scattering center with a specific resonant frequency [¹⁶]. Alkali, alkaline-earth, and rare-earth metals are commonly used as the filling elements. Rare-earth elements, with atomic masses heavier than alkali or alkaline-earth elements, lead to lower lattice thermal conductivity because they promote phonon scattering of lower resonant frequencies [¹⁷]. Compared to a single-filled skutterudite, lattice thermal conductivity can be reduced further by filling with two or more kinds of atoms, because they accommodate a broader spectrum of phonon frequencies [¹⁶,¹⁸]. However, some studies have reported that double- or multiple-filled skutterudites cannot be completely filled [¹⁹-²¹].

In our previous study [²²], La_1-zCe_zFe_4-xCo_xSb₁₂ specimens produced (La,Ce)Sb₂ phases because the La/Ce double filling was beyond the filling fraction limit (FFL). In this study, to prevent (La,Ce)Sb₂ phase formation, La/Ce-partially-double-filled and Co-substituted skutterudites were prepared, and the effects of charge compensation on the thermoelectric properties of (La_1-zCe_z)_0.8Fe_4-xCo_xSb₁₂ were examined.

2. Experimental Procedure

(La_1-zCe_z)_0.8Fe_4-xCo_xSb₁₂ skutterudites with various filling ratios (z = 0.25 or 0.75) and charge compensation levels (x = 0, 0.5, and 1) were prepared. Base elements of Fe (purity 99.95%, Cerac) and Sb (purity 99.999%, LTS), filling elements of La (purity 99.9%, Kojundo) and Ce (purity 99.9%, Sigma Aldrich), and the charge-compensating element, Co (purity 99.95%, Alfa Aesar), were used to synthesize the skutterudite specimens. Each element was weighed to the stoichiometric ratio and fused at 1323 K for 10 h in an vacuum-sealed quartz ampoule (inner diameter: 10 mm) that was coated inside with carbon, and the ingot was quenched in water. After replacing with another larger quartz tube (inner diameter: 11 mm) to prevent the destruction of the quartz tube due to thermal expansion, the ingot was vacuum-sealed again and then annealed at 873 K for 24 h to stabilize and homogenize the skutterudite phase. The obtained ingot was pulverized, and then its powder was charged into a graphite mold, followed by hot pressing under a pressure of 70 MPa at 898 K for 1 h in a vacuum.

X-ray diffraction (XRD; Bruker, Cu K_α radiation) was employed to identify the phases of the hot-pressed specimens. Scanning electron microscopy (SEM; FEI) and energy-dispersive spectroscopy (EDS; Oxford) were used to observe the microstructure and analyze elemental distribution. The Seebeck coefficient (α) and electrical conductivity (σ) were measured using ZEM-3 (Advance Riko) equipment. The thermal conductivity (κ = Dc_pd) was estimated after measuring the thermal diffusivity (D), specific heat (c_p), and density (d) using the TC-9000H (Advance Riko) system. The power factor (PF = α²σ) and dimensionless figure of merit (ZT = α²σTκ^-1) were determined from the obtained Seebeck coefficient, electrical conductivity, and thermal conductivity.

3. Results and Discussion

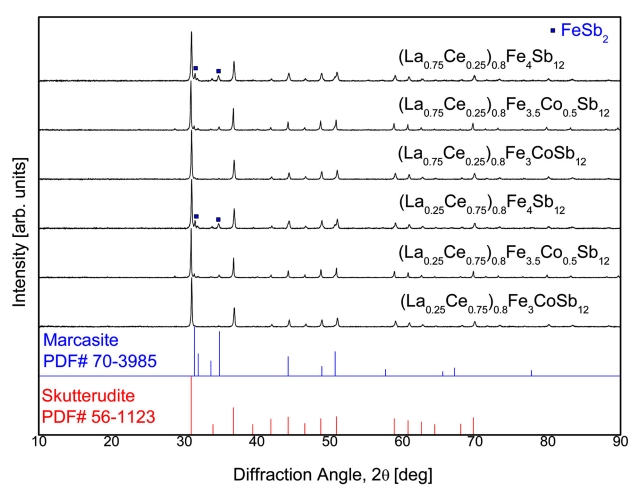

The XRD patterns of the hot-pressed (La_1-zCe_z)_0.8Fe_4-xCo_xSb₁₂ specimens are presented in Fig 1. All the diffraction peaks matched the ICDD reference data (PDF# 56-1123) for the skutterudite phase, and no rare-earth compounds, including LaSb₂ and CeSb₂, were identified. As noted, in our previous study [²²], (La,Ce)Sb₂ phases were found in fully filled La_1-zCe_zFe_4-xCo_xSb₁₂, but in this study, these phases did not exist in the partially filled (La_1-zCe_z)_0.8 Fe_4-xCo_xSb₁₂ because the filling fraction of 0.8 did not exceed the FFL. (La_1-zCe_z)_0.8Fe₄Sb₁₂ specimens without the Co substitution (charge compensation) contained the marcasite FeSb₂ (PDF# 70-3985) as a secondary phase. However, as the charge-compensating amount of Co was increased, the intensities of the marcasite diffraction peaks decreased, and thus it was expected that the formation of the secondary phase would decrease. Detailed microstructural and compositional analyses were performed for verification.

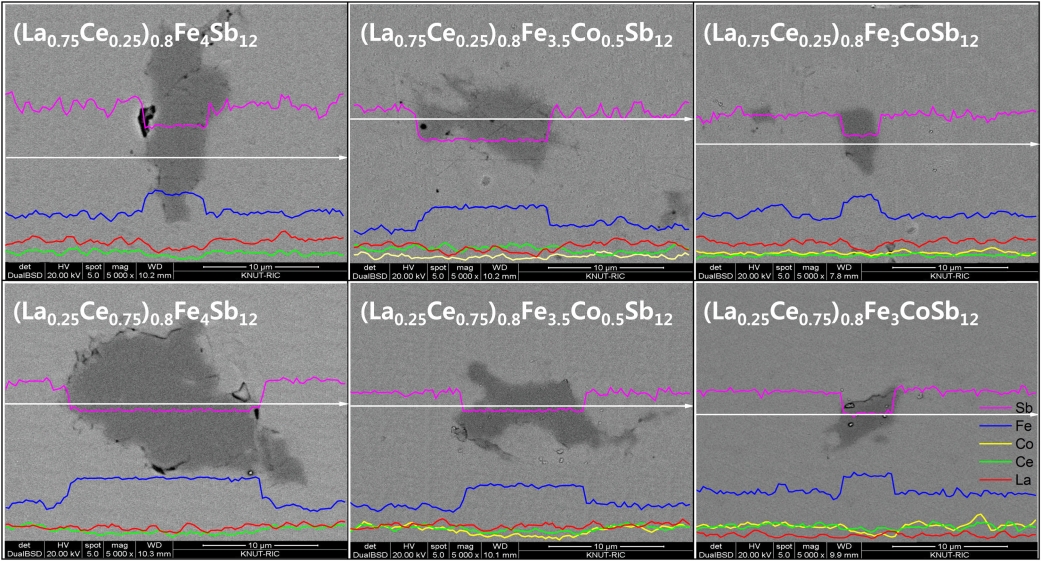

SEM images and EDS line scans of (La_1-zCe_z)_0.8Fe_4-xCo_xSb₁₂ are shown in Fig 2. All of the specimens consisted of skutterudite phase (bright region) and marcasite phase (dark region), consistent with the XRD results. The formation of marcasite was suppressed with increasing Co content, which implies that Co charge compensation stabilized the skutterudite phase. Joo et al. [²²] reported that (La,Ce)Sb₂ phases were observed, together with the FeSb₂ phase, in fully filled La_1-zCe_zFe_1-xCo_xSb₁₂ specimens. However, in the present study, partial filling did not exceed the FFL, so the (La,Ce)Sb₂ phases did not form.

Table 1 presents the chemical and physical properties of (La_1-zCe_z)_0.8Fe_4-xCo_xSb₁₂. There was no significant difference between the nominal and actual compositions. It was confirmed that the constituents were not volatilized or oxidized during the melting and sintering processes. The hot-pressed specimens exhibited relative densities of 96.1‒99.6% compared with the theoretical density. Because the ionic radius of Co²⁺ (0.167 nm) is smaller than that of Fe³⁺ (0.172 nm) [²³], the lattice constant was decreased by Co substitution for Fe; the lattice constant decreased, from 0.9136‒0.9137 to 0.9099‒0.9109 nm, with increasing Co content. Variation in the lattice constant with increased La/Ce filling ratio was not significant because the ionic radii of La (0.136 nm) and Ce (0.134 nm) are very similar [²⁴]; as Ce content increased, the lattice constant slightly decreased.

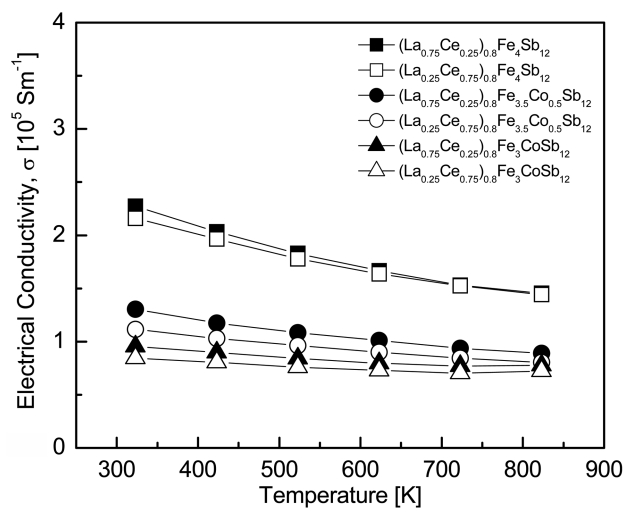

The electrical conductivity of (La_1-zCe_z)_0.8Fe_4-xCo_xSb₁₂ is presented in Fig 3. The electrical conductivity exhibited a negative temperature dependence, that is, it decreased with increasing temperature, which means that all of the specimens behaved like metallic or degenerate semiconducting materials. Each specimen exhibited a maximum electrical conductivity at 323 K; (2.16‒2.27) × 10⁵ S m^-1 for the Cofree specimens and (0.84‒1.30) × 10⁵ S m^-1 for the Cosubstituted specimens. The electrical conductivity decreased significantly when Co was substituted for Fe. This was attributed to the carrier concentration, which was expected to decrease due to charge compensation. Joo et al. [²²] reported that fully filled and Co-compensated La_1-zCe_zFe_4-xCo_xSb₁₂ specimens had high carrier concentrations of (1.07‒1.87) × 10²¹ cm^-3 and high electrical conductivity values of (1.10‒1.76) × 10⁵ Sm^-1 at 323 K. However, in this study, (La_0.75Ce_0.25)_0.8Fe₄Sb₁₂ exhibited the highest electrical conductivity of 2.27 × 10⁵ Sm^-1 at 323 K. The reason the partially-filled specimens had higher electrical conductivities was because of the increased charge carrier (hole) concentration, resulting from the reduced supply of excess electrons. In addition, the electrical conductivity decreased with increasing Ce content, due to the difference in valences between La³⁺ and Ce^3+/4+.

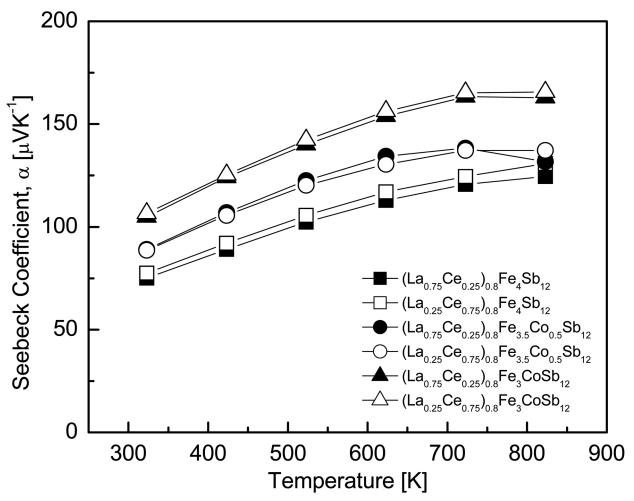

The Seebeck coefficient of (La_1-zCe_z)_0.8Fe_4-xCo_xSb₁₂ is shown in Fig 4. In the temperature range 323‒823 K, the Seebeck coefficient exhibited positive values, thereby confirming p-type conduction. The Seebeck coefficient of a p-type semiconductor can be expressed by Mott’s equation [²⁵]: α   =   ( 8 / 3 ) π 2 k B 2 m * Te - 1 h - 2 ( π / 3 n ) 2 / 3 , where k_B, m^*, e, h, and n stand for the Boltzmann constant, effective mass, electron charge, Planck constant, and carrier concentration, respectively. Therefore, as temperature increases, the Seebeck coefficient increases. However, it begins to decrease at a specific temperature because of the significantly increased carrier concentration, caused by intrinsic conduction.

In this study, as the temperature increased, the Seebeck coefficient increased, reaching maximum values in the temperature range 723‒823 K. In addition, as the Co content increased, the Seebeck coefficient increased, and the carrier concentration was expected to decrease due to charge compensation. This was consistent with the observation of variation in electrical conductivity shown in Fig 3. Therefore, the increased Seebeck coefficient resulted from the decreased carrier concentration.

A minimum Seebeck coefficient of 124.5 μV K^-1 was obtained at 823 K for (La_0.75Ce_0.25)_0.8Fe₄Sb₁₂, but the maximum Seebeck coefficient of 165.4 μV K^-1 was achieved at 823 K for (La_0.25Ce_0.75)_0.8Fe₃CoSb₁₂. The Seebeck coefficients of the fully filled La_1-zCe_zFe_4-xCo_xSb₁₂ specimens exhibited maximum values at 723‒823 K, and La_0.25Ce_0.75Fe₃CoSb₁₂ exhibited the highest value of 164.1 μV K^-1 at 823 K [²²]. However, in this study, the Seebeck coefficient did not significantly increase with partial filling. Therefore, it was confirmed that the change in the Seebeck coefficient was more affected by Co-charge compensation than by the filling fraction and La/Ce ratio.

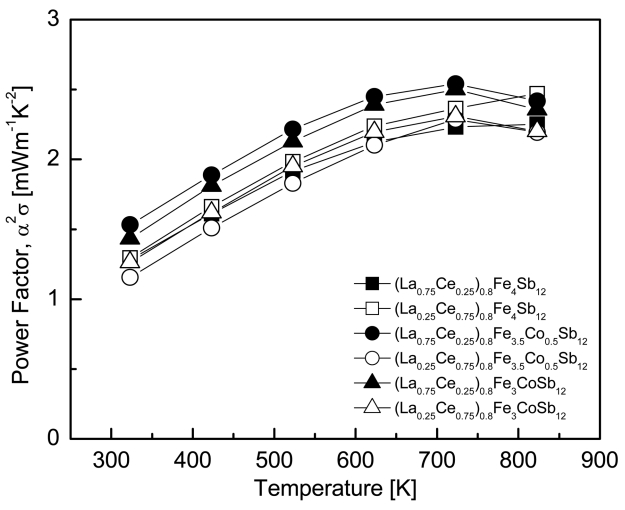

The power factor of (La_1-zCe_z)_0.8Fe_4-xCo_xSb₁₂ is presented in Fig 5. Because electrical conductivity is proportional to carrier concentration, while the Seebeck coefficient is inversely proportional to carrier concentration, there is a trade-off between these two parameters. In addition, these two parameters exhibit different temperature dependences. Therefore, there is a maximum power factor that can be obtained with an optimum carrier concentration, at a specific temperature. In this study, the power factor increased with increasing temperature, and the maximum power factor was 823 K for the Co-free specimens. However, the Cosubstituted specimens exhibited a maximum power factor at 723 K. The power factor increased as the La content increased, with constant Co content. Partial filling was expected to improve the power factor by enhancing electrical conductivity through hole donation, but electrical conductivity and the Seebeck coefficient did not change significantly, resulting in a slightly lower power factor compared with fully filled specimens. In this study, the power factor ranged from 2.25 to 2.53 mW m^-1 K^-2 at 723‒823 K, and (La_0.75Ce_0.25)_0.8 Fe_3.5Co_0.5Sb₁₂ exhibited a maximum value of 2.53 mW m^-1K^-2 at 723 K. The fully filled La_0.75Ce_0.25Fe_3.5Co_0.5Sb₁₂ achieved a maximum power factor of 2.79 mW m^-1 K^-2 at 723 K [²²].

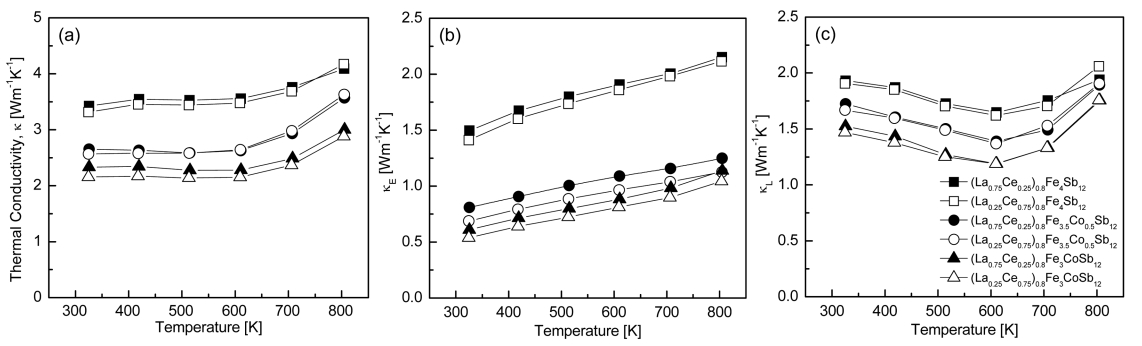

The thermal conductivity of (La_1-zCe_z)_0.8Fe_4-xCo_xSb₁₂ is shown in Fig 6. Thermal conductivity (κ) consists of electronic thermal conductivity (κ_E) from the contribution of charge carriers, lattice thermal conductivity (κL) from the contribution of phonons, and bipolar thermal conductivity (κB) from the contribution of bipolar conduction. In this study, κB was ignored, since it was assumed that the carrier concentration was very high (degenerate semiconductors), and κ_E was estimated using the Wiedemann-Franz law (κ_E = LσT) [²⁶]. In general, L (Lorenz number) has a range of (1.45‒2.44) × 10^-8 V² K^-2 and here was taken to be L = 2.0 × 10^-8 V² K^-2.

The thermal conductivity is shown in Fig 6(a). The specimens showed thermal conductivities between 2.15 and 4.17 Wm^-1 K^-1 at 323‒823 K. As with the other thermoelectric parameters, the change in thermal conductivity was not significantly affected by the La/Ce filling ratio, but was highly dependent on Co content. Thermal conductivity was significantly reduced as the amount of Co-substitution increased. The lowest thermal conductivity of 2.15 W m^-1 K^-1 was obtained at 523 K for (La_0.25Ce_0.75)_0.8Fe₃CoSb₁₂. Electronic thermal conductivity decreased with increasing Co content (Fig 6(b)). This was due to the decrease in carrier concentration caused by the charge compensation of Co.

Each specimen exhibited the lowest electronic thermal conductivity of 0.53‒1.49 W m^-1 K^-1 at 323 K. Compared with the electrical conductivity change shown in Fig 3, the opposite temperature dependence occurred, but the composition (filling and substitution) dependence behavior remained the same. The minimum electronic thermal conductivity of 0.53 W m^-1 K^-1 was obtained at 323 K for (La_0.25Ce_0.75)_0.8Fe₃CoSb₁₂. The lowest lattice thermal conductivity of 1.18‒1.62 W m^-1 K^-1 at 623 K was observed in all specimens (Fig 6(c)). As the Co content increased, lattice thermal conductivity decreased because of the enhanced phonon scattering by impurities. (La_0.25Ce_0.75)_0.8Fe₃CoSb₁₂ exhibited the lowest lattice thermal conductivity of 1.18 W m^-1 K^-1 at 623 K. The lattice thermal conductivity of the fully filled La_0.75Ce_0.25Fe_3.5Co_0.5Sb₁₂ was greatly reduced and exhibited the lowest value of 0.47 W m^-1 K^-1 at 723 K [²²]. The lattice thermal conductivity of the partially filled specimens was relatively high compared to those of the fully filled specimens. The lattice thermal conductivity was expected to be reduced by intensifying phonon scattering when using heavy La and Ce with small ionic radii as filling elements. However, the enhancement in phonon scattering was negligible because La has a very similar atomic mass and ionic radius to Ce. As a result, the lattice thermal conductivity could not be lowered by partial filling. However, electronic thermal conductivity was decreased by Co-charge compensation, so that the total thermal conductivity of the partially filled specimens was similar to that of fully filled specimens.

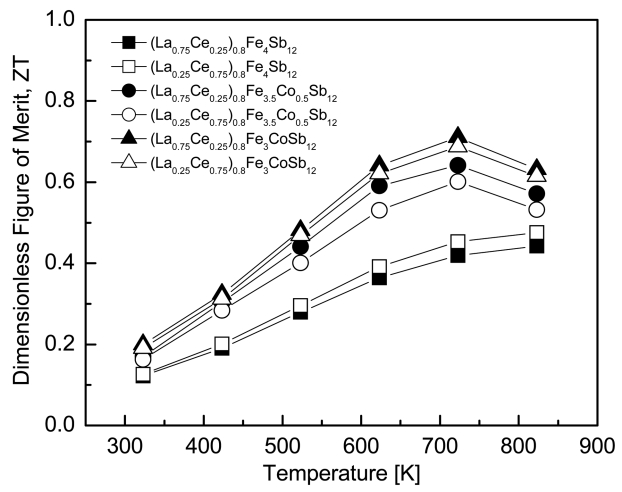

The dimensionless figures of merit (ZT) of (La_1-zCe_z)_0.8 Fe_4-xCo_xSb₁₂ are presented in Fig 7. As temperature increased, ZT values increased; the Co-free specimens showed maximum ZT values at 823 K, but the temperature at which the ZT value peaked was reduced to 723 K by Co-charge compensation. The highest ZT value of 0.71 was obtained at 723 K for (La_0.75Ce_0.25)_0.8Fe₃CoSb₁₂.

Previously, slightly higher values of ZT = 0.77 at 723 K and ZT = 0.79 at 823 K were reported for fully filled La_0.75Ce_0.25Fe_3.5Co_0.5Sb₁₂ [²²]. The partially filled specimens exhibited slightly lower ZT values than fully filled specimens. However, Co-charge compensation reduced the temperature, resulting in a maximum ZT of 100 K, which is considered useful and practical for a thermoelectric material in the mid-low temperature range.

In this study, La and Ce were used with the aim of suppressing secondary phase formation by partial double filling, and to maximize the power factor (optimize carrier concentration) through Co-charge compensation. In addition, a reduction in lattice thermal conductivity was expected due to phonon scattering, with improved thermoelectric performance. However, the improvement in phonon scattering due to partial double filling was negligible; thus, La/Ce partial double filling was not effective for improving thermoelectric performance. Compared with our previous studies on partially double-filled p-type skutterudites, ZT = 0.79 at 723 K was obtained for (La_0.25Pr_0.75)_0.8Fe_3.5Co_0.5Sb₁₂ [²⁷], ZT = 0.76 at 723 K was achieved for (La_0.25Nd_0.75)_0.8Fe₃CoSb₁₂ [²⁸], ZT = 0.84 at 623 K was reported for (Ce_0.75Pr_0.25)_0.8Fe₃CoSb₁₂ [²⁹], and ZT = 0.87 at 723 K was attained for (Ce_0.75Nd_0.25)_0.8Fe₃CoSb₁₂ [³⁰].

4. Conclusions

P-type (La_1-zCe_z)_0.8Fe_4-xCo_xSb₁₂ skutterudites were prepared using encapsulated melting followed by annealing and hot pressing. Phases, microstructures, and thermoelectric properties were examined as a function of variations in La/Ce partial double filling and Co-charge compensation. A matrix of skutterudite phase and a secondary phase of marcasite was also observed in the hot-pressed specimens. However, rareearth antimonides, including LaSb₂ and CeSb₂ phases, were not formed because the La/Ce filling fractions of the partially double-filled specimens were within the FFL. In addition, it was observed that the amount of marcasite was reduced by Co-substitution for Fe. As Co-charge compensation increased, the electrical conductivity decreased, while the Seebeck coefficient and thermal conductivity increased. However, variation in the La/Ce filling ratio did not significantly affect thermoelectric performance. This was because La and Ce have very similar atomic mass and ionic radius, which did not effectively enhance phonon scattering by partial double filling; thus, lattice thermal conductivity was not reduced compared with that of the fully filled specimens. As a result, the highest power factor of 2.53 mW m^-1 K^-2 was obtained at 723 K for (La_0.75Ce_0.25)_0.8Fe_3.5Co_0.5Sb₁₂, and a ZT_max of 0.71 was achieved at 723 K for (La_0.75Ce_0.25)_0.8Fe₃CoSb₁₂. The substitution of Co for Fe improved the ZT values of the ptype skutterudites by charge compensation, and it was confirmed that partial double filling using filler elements with large differences in atomic mass and ionic radius may be more effective for improving thermoelectric performance.
