(Viet Nhan Hoa Nguyen)
1
(Si Jeong Song)
1
(Man Seung Lee)
1*
Copyright © 2022 The Korean Institute of Metals and Materials
Key words(Korean)
ethylene glycol, leaching, precipitation, palladium, ammonium heaxachloropalladate
1. INTRODUCTION
Demand for palladium, one of the precious metals group, is rapidly increasing for
the manufacture of catalysts and advanced materials [1-4]. This has inspired many researchers to recover palladium from secondary resources
for sustainable production. Lots of work has been conducted on the recovery of palladium
from spent catalysts [5-10]. However, the amount of palladium in spent electroplating solution is low and thus
few works have been reported on the treatment of spent electroplating solutions [11,12]. To recover Pd(II) from spent electroplating solutions, it is first necessary to
concentrate the Pd(II) by cementation with zinc (Zn) powder [13,14]. Leaching of the cemented Pd metal is then required to recover the pure Pd metal.
Further separation steps such as solvent extraction, using either commercial or ionic
liquid extractants, ion exchange, or precipitation can be employed to obtain pure
Pd(II) solutions or palladium compounds [8,9,11,12,15-18]. Our previous work reported on the use of non-aqueous leaching for the dissolution
of Pd metal, providing an alternative approach to enhance Pd dissolution efficiency
[19]. It was determined that the presence of TBP (tributyl phosphate)/MIBK (methyl isobutyl
ketone) /EG as extractants or diluent in the leaching systems could significantly
affect performance of a certain hydrometallurgical process, due to their interaction
with other components [19,20].
Ethylene glycol (EG), which can be generated from various chemical systems (catalytic
and non-catalytic) and biomass-base resources like cellulose is often considered to
be a green solvent because of its non-volatility, low flammability, and low toxicity
[21,22]. For this reason EG is used as a chemical intermediate in the synthesis of organic
chemicals and as an organic solvent in solvo-hydrometallurgy [23,24]. EG has been used as a hydrogen bond donor in eutectic mixtures for effective non-aqueous
leaching of flue dust containing Fe, Zn, Pb, Cu, In, and Sn [25]. When EG was used in place of water as a polar solvent in the leaching of metals
such as Cu, Co, and Ni, leaching efficiency was enhanced because it stabilized the
metal complexes in the leachate [26]. Since the presence of EG reduces the activity of water, the extraction of metal
ions to the organic phase is increased [27]. These results suggest it would be worthwhile to investigate the effect of adding
EG to a leaching system of HCl containing oxidizing agents for the recovery of palladium
from cemented Pd.
The present work investigated the influence of EG on a Pd leaching process consisting
of the selective precipitation of the Pd(IV) compound. First, the leaching behavior
of Pd and Zn in the metallic mixture by the system of HCl-oxidizing agent-EG was studied,
and then selective precipitation of Pd(IV) was analyzed. Subsequently, the optimum
conditions were applied to recover the Pd(IV) compound as ammonium hexapalladate precipitate
from the leaching solution of cemented Pd.
For this purpose, EG was used in place of water as a polar diluent which contained
hydrochloric acid as the leaching agent, and H2O2, NaClO and NaClO3 were added as oxidizing agents. The effects of leaching conditions such as temperature,
reaction time, acid concentration and the nature of the oxidizing agent were investigated.
Among the three oxidizing agents, NaClO3 showed the best leaching efficiency and thus the leachate containing NaClO3 was selected for recovery of the Pd(IV) compound by precipitation with NH4Cl. Our obtained data indicated that the recovery of pure Pd(IV) compound by leaching
cemented Pd, and Pd(IV) precipitation, was favorable in an EG medium.
2. EXPERIMENTAL
2.1 Reagents and chemicals
Metal powders of Pd (size: 60 mesh, Alfa Aesar, Ward Hill, USA, 99.9%) and Zn (size:
100~200 mesh, Daejung Chemical. Co., Shiheung, Korea, 99.0%) were employed in the
leaching experiments. Mixtures of these two metals were prepared by mixing at the
same weight ratio. Hydrochloric acid (HCl, Daejung Chemical. Co., Shiheung, Korea,
35%) was diluted in ethylene glycol (EG, Daejung & Metals Co., Korea, >98%) to the
obtain desired concentration. Hydrogen peroxide (H2O2, Daejung Chemical. Co., Shiheung, Korea, >30%), NaClO solution (Sigma-Aldrich Co.,
with available chlorine 10–15%, USA) and NaClO3 (pure, Daejung Chemical & Metals Co., Shiheung, Korea) were used as oxidizing agents.
NH4Cl (Duksan Co., Gyungki-do, Korea, 99%) was added as a precipitant. All the employed
chemicals were of analytical grade.
2.2 Experimental procedure and analytical methods
In the leaching experiments, solutions of HCl in EG with desired volumes and concentration
were stirred in a 250 cm3 three-neck round bottom flask which was placed on a magnetic heating stirrer and
a mantle (WiseStir MSH-20D, Daihan Scientific Co., Korea) to control the temperature
and stirring speed. After reaching the predetermined temperature, a certain amount
of the Pd and Zn mixture and then oxidizing agents were slowly added to the flask
to avoid a violent reaction. The cover of the flask was closed to prevent evaporation
loss of the reactants. After the leaching was completed, the leaching solution was
filtered with filter paper and separated from the residue. Inductively coupled plasmaoptical
emission spectrometry (ICP-OES, Spectro Arcos, Cleve, Germany) was used to measure
the concentration of metal ions in the leaching solution. The leaching percentage
(%) of component L (L = Pd or Zn) was calculated to be:
where mL and mo are the mass of metal dissolved in the leaching solution and the initial mass of
the metal, respectively.
To precipitate the Pd(IV) compound from the synthetic solutions and real leaching
solutions, a certain amount of NaClO3 was added to oxidize Pd(II) to Pd(IV), and then NH4Cl was added as precipitant. The reaction mixtures were stirred by a magnetic stirrer
in a heating mantle. After the reaction, the reaction mixtures were kept for 30 min.
Precipitates were collected, washed and then dried in an oven (Wiseven Wids, Daihan

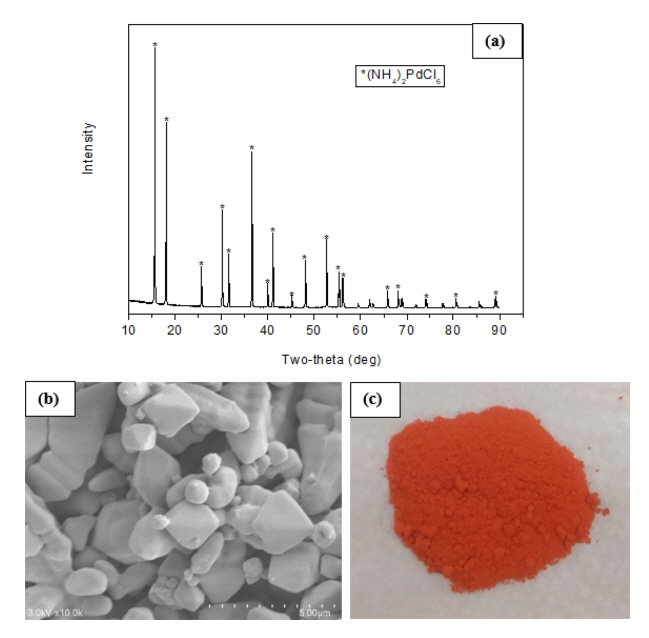

Scientific Co., Korea) at 60°C overnight. X-ray diffractometer (XRD, X’Pert-PRO, Empyrean,
the Netherlands) and analytical high-resolution scanning electron microscopy (HR-SEM,
SU-70, Hitachi, Japan) were used to analyze the characteristics of the precipitates.
The purity of the precipitates was verified by dissolving them in 5% NH3 solution and then the concentration of the metal ions was measured by ICP-OES. The
precipitation percentage (X%) of Pd(IV) was calculated to be:
where Mi and M are the mass of metal ions in the ethylene glycol phase before and after precipitation,
respectively. Experiments were performed two times with errors within ± 5%.
3. RESULTS AND DISCUSSION
3.1 Leaching of metallic mixture containing Pd and Zn
3.1.1 Effect of HCl concentration
Since the standard reduction potential of Pd(II) is higher than that of hydrogen ions,
the addition of an oxidizing agent is necessary to leach Pd. The standard reduction
potentials of some reactions at 25°C are displayed in Table 1. Among inorganic acidic media, hydrochloric acid is considered to be a better lixiviant
than either nitric or sulfuric acid solutions for leaching Pd [28]. In this work, three oxidizing agents,H2O2, NaClO, NaClO3, were added to the HCl in EG solution to compare their leaching performance.

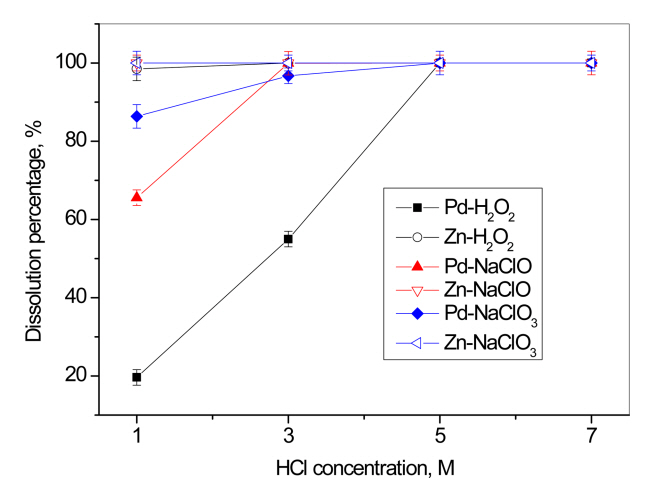

To investigate the effect of HCl on the dissolution of the Pd and Zn mixture, the
HCl concentration was varied from 1 to 7 M in EG. The experimental results are shown
in Fig 1. In these experiments, pulp density was kept at 2 g/L, where the weight ratio of
Pd to Zn was unity. The reactions were run at 60°C for 60 min. The concentration of
oxidizing agent was fixed at 0.5 M. The results indicated that the HCl concentration
had a significant influence on the dissolution of Pd and Zn. In the case of H2O2 and NaClO3, Fig 1 shows that the dissolution of Pd increased from 19.6 to 100% and from 86.4 to 100%
when the concentration of HCl was increased from 1 to 5 M, then became constant with
the further increase of HCl concentration. The dissolution of Pd increased from 65.6
to 100% when the HCl concentration was increased from 1 to 3 M in the presence of
NaClO. Most of the Zn was dissolved in the studied range of HCl concentration. Among
the three solvent leaching systems, higher Pd dissolution efficiency was obtained
by using either NaClO or NaClO3 at low concentration in HCl. This result was attributed to the chloride ions released
from the reaction of NaClO/NaClO3 [29-31]. Table 2 exhibits the stability constants of metal complexes in HCl solution at 25°C. The
dissolution reaction of Pd and Zn by HCl-oxidizing agent-EG can be displayed as
where Me is Pd or Zn
Based on the obtained results, 5 M HCl was used in the presence of H2O2/NaClO3 for complete dissolution of the mixture, while the concentration of HCl was controlled
to 3 M in the case of NaClO.
3.1.2 Effect of oxidizing agent concentration
Adding oxidizing agents to the HCl solution can improve the oxidizing power of the
acidic solution for Pd, and their concentration has a great impact on dissolution
efficiency [19]. To investigate this influence on the dissolution of Pd and Zn, the concentration
of oxidizing agents was varied from 0.1 to 0.5 M. The concentration of HCl was kept
at 3 M in the case of NaClO and 5 M for H2O2 and NaClO3. These experiments were performed at 60°C within 60 min and pulp density was fixed

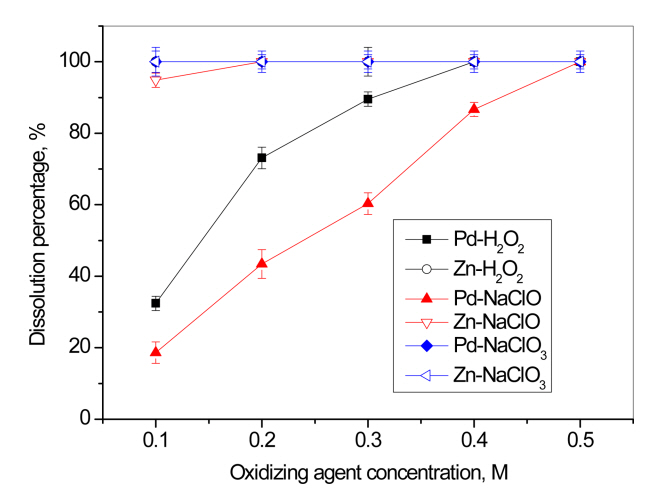

at 2 g/L. In Fig 2, the dissolution efficiency of Pd by HCl was in the order of NaClO3 > H2O2 > NaClO. Pd was completely dissolved in the NaClO3 concentration range between 0.1 and 0.5 M, while the dissolution of Pd increased
from 32.4 to 100% when the concentration of H2O2 increased from 0.1 to 0.4 M, and then became constant with the further increase of
H2O2 concentration. The dissolution of Pd increased from 18.6 to 100% when the NaClO concentration
was increased from 0.1 to 0.5 M. Zn was completely dissolved in these experiments.
The strongest dissolution power of the leaching system containing NaClO3 was observed with either a high concentration of HCl (5M) or with the production
of intermediate products such as Cl2 and HClO2 (E° = 1.36 V and E° = 1.57 V, respectively) which have a strong oxidizing property
[29]. With the same concentration of oxidizing agent, the percentage dissolution of Pd
was slightly higher with H2O2 than with NaClO. This might be relevant for two reasons: (i) the higher standard
reduction potential of H2O2 compared to NaClO (ii) the higher concentration of HCl in the case of H2O2 (5 M).
3.1.3 Effect of temperature and time
Leaching experiments were conducted to investigate the effect of temperature and time.
In these experiments, the concentration of HCl was fixed at 3 M in the case of NaClO
and 5 M in the cases of H2O2 and NaClO3, while pulp density was controlled at 2 g/L. Firstly, the effect of temperature on
the dissolution of metallic mixture was investigated in the range of 25–80°C. The
results revealed that temperature had little effect on dissolution, and the two metals
were completely dissolved by the mixture of concentrated HCl and oxidizing agents
in EG from 25 to 80°C.

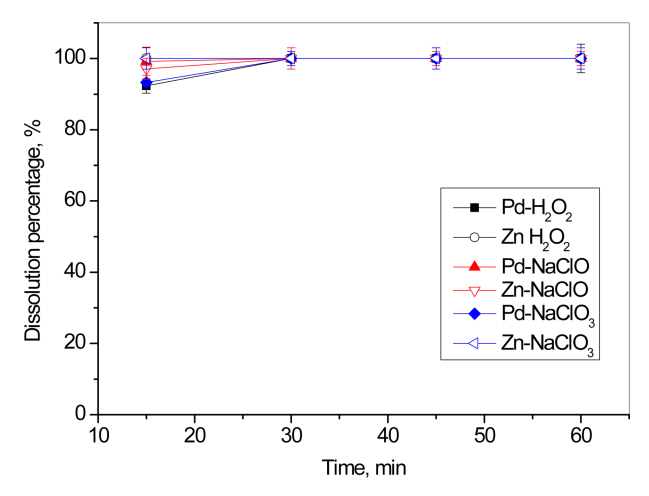

To investigate the effect of reaction time on the dissolution of Pd and Zn, the reaction
time was varied from 15 to 60 min. Fig 3 shows that most of the Pd was dissolved within 15 min. These results indicate that
the leaching rate of the metals was fast and both Pd and Zn were completely dissolved
within 30 min at 25°C.

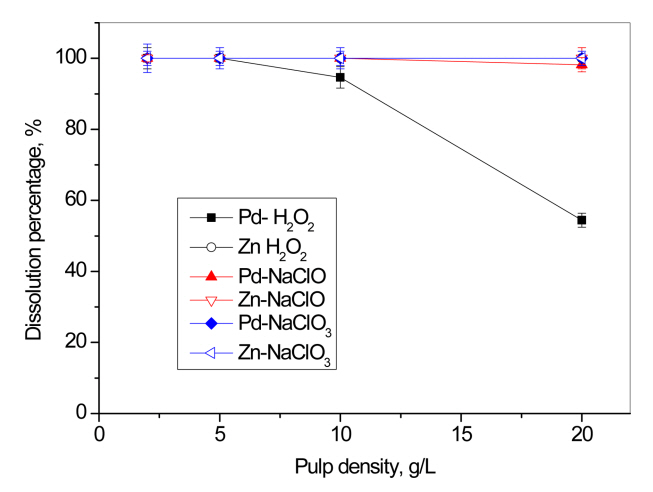

3.1.4 Effect of pulp density
Experiments were conducted with 5 M HCl in the presence of 0.4 M H2O2, 0.1 M NaClO3 and 3 M HCl in the case of 0.5 M NaClO at 25°C within 30 min and at a stirring speed
of 500 rpm. The effect of pulp density was studied in the range of 2 to 20 g/L (the
weight ratio of Pd to Zn was unity) and the results are exhibited in Fig 4. As shown in Fig 4, Pd was completely dissolved by the HCl containing NaClO3 as an oxidizing agent in the pulp density range from 2 to 20g/L. For the HCl-H2O2-EG leaching system, Pd was completely dissolved from 2 to 5 g/L of pulp density and
decreased to 54.5 % when the pulp density was increased to 20 g/L. In the case of
the HCl-NaClO-EG leaching system, the Pd dissolution was complete from 2 to 10 g/L
of pulp density and decreased to 98.2 % when the pulp density was increased to 20
g/L. Zn was completely dissolved in these conditions.
The obtained results confirmed that the complete dissolution of metallic mixture of
Pd and Zn was possible using the leaching systems of HCl-H2O2/NaClO/NaClO3-EG. The optimum conditions for dissolution of the mixture containing Pd and Zn are
summarized in Table 3. Among the three oxidizing agents, NaClO3 exhibited the best dissolution efficiency for Pd and Zn with a low concentration
of oxidizing agent in EG.
3.1.5 Comparison of Pd leaching behavior in the presence and absence of EG
The dissolution efficiency of Pd and Zn metals in two leaching systems using H2O and EG as the diluents, respectively, was compared. Table 4 demonstrates that a higher Pd and Zn dissolution efficiency was obtained by the HCl-NaClO3-EG system compared to HCl-NaClO3-H2O, under the same conditions of 25°C, 30 min, 500 rpm. In particular, complete dissolution
of the Pd and Zn was achieved using 3 to 5 M HCl in a leaching system containing EG,
while the percentage of Pd and Zn dissolution in the aqueous leaching system was only
63 and 90%, respectively.
In the dissolution of metals, several factors affect the degree of dissolution, such
as solvation of the dissolved metal ions, the reduction potential of the metal ions
and the stability of the metal complexes in the leaching solution [32,33]. The nature of the solvent affects the dielectric constant of the medium and solvation
energy.
Compared to the leaching system with EG, the chloride ions in an aqueous solution
are strongly hydrated, thus suppressing the interaction between the metal ions and
chloride that would form complexes. Moreover, water contains oxygen donor as a hard
base which tends to interact more strongly with a hard acid like Zn(II) than a soft
one like Pd(II) according to the hard soft acid base principle. Our results indicate
that replacing water with EG in the HCl leaching system in the presence of oxidizing
agents enhanced the dissolution of the mixture. This could be related to the stability
of [PdCl4]2- and [ZnCl4]2− in the EG solution at high HCl concentrations, and the formation of anionic complexes,
which can be enhanced in solutions having a lower dielectric constant like EG [34]. Ethylene glycol can solvate and stabilize these metal complexes by hydrogen bonding.
Therefore, our results clearly indicate that EG is more efficient than water as a
diluent in the leaching of real cemented Pd.

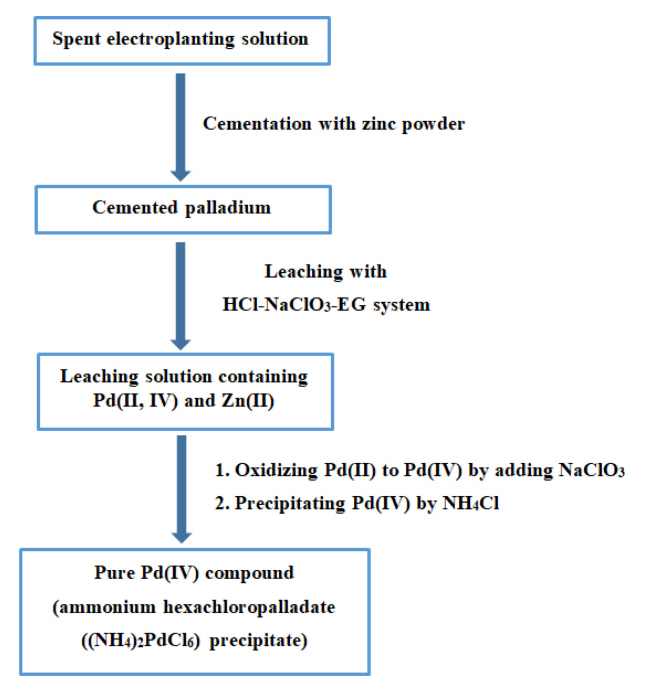

3.2 Precipitation of Pd(IV) from a leaching solution of HCl-NaClO3-EG
To recover the Pd(IV) compound from the HCl-NaClO3- EG leaching solution, the precipitation of Pd(IV) was investigated by adding NH4Cl as a precipitant [35]. In these experiments, the solutions were obtained by leaching the metallic mixture
with the same weight ratio. The concentration of Pd ion and Zn(II) in the solution
was 1000 mg/L. In order to check the precipitation of Pd compounds from the solution,
NH4Cl was added to the solution at the molar ratio of Pd ion to NH4Cl of 1:30. These experiments were conducted at room temperature for 30 min. The precipitation
percentage of Pd compound was only 19.9%. Pd can be dissolved as either Pd(II) or
Pd(IV) and the existence of Pd as Pd(IV) is requisite for precipitation with NH4Cl to occur [12]. The fact that 19.9% of Pd ion was precipitated indicates that Pd(II) and Pd(IV)
coexist in the leaching solution. According to the hard soft acid base principle,
the acidity of Pd(IV) is harder than that of Pd(II) because Pd(IV) has a larger charge
density. Since NH3 is a hard base, Pd(IV) has a strong tendency to form coordinate bonds with NH4+ rather than Pd(II). This is well demonstrated in the solubility data that showed
(NH4)2PdCl6 was insoluble in water, while (NH4)2PdCl4 is soluble [8,29,35].
Therefore, the existence of Pd(IV) as PdCl62– in the HCl leaching solution is necessary to form a precipitate with NH4Cl. In order to oxidize Pd(II) to Pd(IV), 5g/L of NaClO3 which corresponds to the molar ratio of 1:5 of Pd ion to NaClO3 was added to the leaching solution, and then NH4Cl was added at the molar ratio of Pd ion to NH4Cl of 1:30. In these experiments, most of the Pd ions were precipitated as a red colored
Pd(IV) compound. From the obtained results, it can be inferred that the addition of
enough NaClO3 is required to dissolve Pd metal as Pd(IV).
To optimize the precipitation performance of Pd(IV), parameters such as the molar
ratio of Pd(IV) to either NaClO3 or NH4Cl added (from 1:5 to 1:40), reaction time (from 30 to 120 min), and temperature (25
to 60°C) were investigated. Our data revealed that Pd(IV) was completely precipitated
when the molar ratio of Pd(IV) to NaClO3 and NH4Cl was 1:10:20, at 25°C with 500 rpm of stirring speed within 30 min. Zn(II) was not
precipitated under these conditions. This agreed well with the previous work that
reported Pd(IV) can be selectively precipitated with NH4Cl [35], but the replacement of H2O by EG results in some certain benefits. Table 5 displays a comparison of Pd(IV) precipitation efficiency for aqueous and ethylene
glycol media. Compared to precipitation in the aqueous solution [35], the precipitation of Pd(IV) in EG was obtained at room temperature. The lower dosage
of NH4Cl may be related to the decrease in the dissociation of NH4Cl in EG because it has a lower dielectric constant (e = 37) than water (e = 80) at
room temperature [36].
3.3 Recovery of Pd(IV) compound from real leaching solution of cemented Pd
To recover the Pd(IV) compound from the cemented Pd, leaching solutions of cemented
Pd were prepared by applying the optimum conditions obtained for the metallic mixture
of Pd and Zn, as follows: pulp density of 20 g/L, 5 M HCl and 0.1 M NaClO3 in ethylene glycol, room temperature, 500 rpm of stirring speed within 30 min. The
results showed that complete dissolution of cemented Pd was possible. The concentrations
of Pd ions and Zn(II) in the real leaching solution were 19277 mg/L and 723mg/L, respectively.
Subsequently, the precipitation of Pd(IV) was carried out by adding a certain amount
of NaClO3 into the leachate in order to oxidize Pd(II) to Pd(IV) and then NH4Cl was added to the solution as a precipitant. In these experiments, the molar ratio
of Pd(IV) to NaClO3 and NH4Cl was 1:10:20. Reactions were done at room temperature within 30 min and at a stirring
speed of 500 rpm. The results show that the precipitation percentage of Pd(IV) was
99.8% under the studied conditions. Zn(II) was not precipitated at all in these experimental
conditions. The purity of the Pd(IV) compound was over 99.99%, and XRD analysis confirmed
that the chemical formula of precipitate was ammonium hexachloropalladate ((NH4)2PdCl6). The morphology of (NH4)2PdCl6 was also verified by SEM analysis (see Fig 5). Our work revealed that pure Pd(IV) compound could be recovered with high performance
from cemented Pd using a leaching system of 5 M HCl and 0.1 M NaClO3 in EG followed by precipitation with NH4Cl.
The present process is more efficient than conventional hydrometallurgical processes
consisted of leaching followed by solvent extraction [15,16]. Our results clearly show that replacing H2O with EG as a polar solvent has a favorable effect on the dissolution of Pd metal
from the cemented Pd. Complete dissolution of Pd metal by HCl in EG was possible at
room temperature, while at least 60°C was necessary with HCl in water. Moreover, the
precipitation of Pd(IV) by NH4Cl from the leaching solution containing EG was enhanced, owing to the reduction in
the dielectric constant of the medium [35]. Based on our data, a flowsheet could be proposed for the recovery of pure Pd(IV)
compound from the spent electroplating solution (see Fig 6).
4. CONCLUSIONS
A process was developed for the recovery of pure Pd(IV) compound from cemented Pd
from spent electroplating solution. HCl solution diluted with EG was employed as the
leaching solution, as an alternative to HCl in water. The effect of oxidizing agents
on the dissolution of Pd was investigated using H2O2, NaClO, and NaClO3. Among the three oxidizing agents, NaClO3 showed the best leaching efficiency for Pd from the metallic mixture of Pd and Zn.
Adding NH4Cl to the solution containing Pd(IV) led to the precipitation of ammonium hexachloropalladate
((NH4)2PdCl6). The optimum conditions for leaching were determined to be as follows: 5 M HCl and
0.1 M NaClO3 in EG, 20 g/L of pulp density, 25°C within 30 min. By applying these conditions,
most of the Pd present in the cemented Pd was recovered as (NH4)2PdCl6 with purity higher than 99.9%.
Compared to the solution of HCl in water, that in EG showed some advantages, such
as enhancing the dissolution of Pd and the precipitation of Pd(IV) with NH4Cl. A process can be developed to recover pure Pd(IV) compound from spent electroplating
solution by applying our data
Acknowledgements
This work was supported by the Technology Innovation Program (Development of Material
Component Technology) (Project number: 20013071) funded by the Ministry of Trade,
Industry & Energy (MOTIE, Korea).
REFERENCES
Salisu 1. A. A., Ndako U. B., Oloko T. F., Resour. Policy,62, 357 (2019)
Cerveny L., Chem. Eng. Comm,83, 31 (1989)
Bloxham L., Johnson Matthey,Feb, 1 (2020)
Ding Y., Resour. Conserv. Recy,155, 1 (2020)
Harjanto S., Cao Y., Shibayama A. I., Naitoh I., Nanami T., Kasahara K., Okumura Y.,
Liu K., Fujita T., Mater. Trans,47, 129 (2006)
Cieszynska A., Wisniewski M., Sep. Purif. Technol,80, 385 (2011)
Hasani M., Khodadadi A., Koleini S. M. J., Saeedi A. H., Meléndez A. M., J. Phys.
Conf. Ser,786, 012042 (2017)
Yousif A. M., J. Chem,2019, 1 (2019)
Ilyas S., Srivastava R. R., Kim H., Cheema H. A., Sep. Purif. Technol,248, 117029
(2020)
Nguyen V. T., Riaño S., Binnemans K., Green Chem,22, 8375 (2020)
Nguyen V. N. H., Song S. J., Lee M. S., Metals,11, 1320 (2021)
Nguyen V. N. H., Song S. J., Lee M. S., Physicochem. Probl. Miner. Process,58, 88
(2022)
Umeda H., Sasaki A., Takahashi K., Haga K., Takasaki Y., Shibayama A., Mater. Trans,52,
1462 (2011)
Liu J., Xu H., Zhang L., Liu C. T., J. Waste Manag,111, 41 (2020)
Song S. J., Nguyen V. N. H., Lee M. S., Korean J. Met. Mater,60, 1 (2022)
Song S. J., Nguyen V. N. H., Lee M. S., Korean J. Met. Mater,60, 132 (2022)
Rovira M., Cortina J. L., Arnaldos J., Sastre A. M., Solvent Extr. Ion Exc,16, 1279
(1998)
Bourgeois D., Lacanau V., Mastretta R., Contino-Pépin C., Meyer D., Hydrometallurgy,191,
105241 (2019)
Nguyen V. N. H., Song S. J., Lee M. S., Metals,11, 575 (2021b)
Liu Y., Lee M. S., J. Mol. Liq,220, 41 (2016)
Prat D., Wells A., Hayler J., Sneddon H., McElroy C. R., Abou-Shehada S., Dunn P.
J., Green Chem,18, 288 (2016)
De Clercq R., Dusselier M., Sels B. F., Green Chem,19, 5012 (2017)
Yue H., Zhao Y., Ma X., Gong J., Chem. Soc. Rev,41, 4218 (2012)
Binnemans K., Jones P. T., J. Sustain. Metall,3, 570 (2017)
Frisch P., Zürner G., ACS Sustain. Chem. Eng,7, 5, 5300 (2019)
Tran T. T., Liu Y., Lee M. S., J. Mater. Res. Technol,14, 2333 (2021)
Li Z., Li X., Raiguel S., Binnemans K., Sep. Purif. Technol,201, 318 (2018)
Cox M., In Solvent Extraction Principles and Practice,455-505, Marcel Dekker Inc.
(2004)
Haynes W. M., Handbook of Chemistry and Physics, 96th,4-48, CRC Press (2014)
Elding L. I., Inorganica Chim. Acta,6, 647 (1972)
Burgess J. R., Prince H., https://onlinelibrary.wiley.com/page/book/10.1002/0470862106/homepage/EditorsContributors.html,
Encyclopedia of Inorganic Chemistry, (2006)
Li X., Binnemans K., Chem. Rev,121, 4506 (2021)
Nguyen V. T., Riaño S., Aktan E., Deferm C., Fransaer J., Binnemans K., ACS Sustainable
Chem. Eng,9, 337 (2021)
Li Z., Dewulf B., Binnemans K., Ind. Eng. Chem. Res,60, 17285 (2021)
Nguyen V. N. H., Song S. J., Lee M. S., Min J., (2022-submitted), Metall. B: Metall,
Zahn M., Ohki Y., Fenneman D. B., Gripshover R. J., Gehman V. H., Proc. IEEE,74, 1182
(1986)
Figures and Tables
Fig. 1.
Effect of HCl concentration on dissolution of mixture of Pd and Zn in solvent leaching
with presence of oxidizing agent. Conditions: [oxidizing agent] = 0.5 M; [HCl] = 1-7
M; Pulp density = 2 g/L; diluent: ethylene glycol; 60 min; 60°C.
Fig. 2.
Effect of concentration of oxidizing agent on dissolution of mixture of Pd and Zn.
Conditions: [HCl] = 3 M (NaClO) and 5 M (H2O2/NaClO3); [oxidizing agent] = 0.1-0.5 M; Pulp density = 2 g/L; diluent: ethylene glycol;
60 min; 60°C.
Fig. 3.
Effect of time on the dissolution of Pd and Zn by solvent leaching. Conditions: [H2O2] = 0.4M; [NaClO] = 0.5 M; [ NaClO3] = 0.1 M in EG; 5 M HCl in the case of H2O2, NaClO3 and 3 M HCl in the case of NaClO; Pulp desity: 2g/L; 25°C; 500 rpm.
Fig. 4.
Effect of pulp density on the dissolution of Pd and Zn by solvent leaching. Conditions:
[H2O2] = 0.4 M; [NaClO] = 0.5 M; [NaClO3] = 0.1 M in EG; 5 M HCl in the case of H2O2, NaClO3 and 3 M HCl in the case of NaClO; Pulp desity: 2-20 g/L; 25°C; 500 rpm.
Fig. 5.
XRD pattern (a), SEM images (b), and powders (c) of (NH4)2PdCl6 precipitates from real leaching solution of cemented Pd.
Fig. 6.
A flowsheet for the recovery of pure Pd(IV) compound from the spent electroplating
solution.
Table 1.
Standard reduction potentials of some reactions at 25°C [29].
|
Reaction
|
E° (V)
|
|
Pd2+ + 2e = Pd
|
0.915
|
|
Zn2+ + 2e = Zn
|
-0.7626
|
|
PdCl42- + 2e = Pd + 4Cl- |
0.591
|
|
Cl2 + 2e = 2Cl− |
1.36
|
|
H2O2+ 2H++ 2e = 2H2O
|
1.77
|
|
ClO3- + 6H+ + 6e = Cl- + 3H2O
|
1.451
|
|
ClO3– + 3H+ + 2e = HClO2 + H2O
|
1.214
|
|
ClO3- + 6H+ + 5e = 1/2Cl2 + 3H2O
|
1.47
|
|
ClO- + H2O +2e = Cl- + OH- |
0.89
|
|
2ClO- + 2H+ + e = 0.5Cl2 + H2O
|
0.83
|
|
ClO− + 2H+ + 2e = Cl− + H2O
|
1.715
|
|
HClO2 + 3H+ + 4e = Cl- + 2H2O
|
1.57
|
Table 2.
The stability constants of metal complexes in HCl solution at 25°C [30, 31].
|
Reaction
|
logK
|
|
Zn2+ + Cl- = ZnCl+ |
0.43
|
|
Zn2+ + 2Cl- = ZnCl2°
|
0.61
|
|
Zn2+ + 3Cl- = ZnCl3- |
0.5
|
|
Zn2+ + 4Cl- = ZnCl42- |
0.2
|
|
Pd2+ + Cl- = PdCl+ |
4.47
|
|
Pd2+ + 2Cl- = PdCl2°
|
7.74
|
|
Pd2+ + 3Cl- = PdCl3- |
10.2
|
|
Pd2+ + 4Cl- = PdCl42- |
11.5
|
Table 3.
The optimum condition of Pd and Zn dissolution by using the leaching system of HCl-oxidizing
agent-EG.
|
Leaching solution
|
Optimum condition
|
[Agent], M
|
Pulp density, g/L
|
Temperature, °C
|
Time, min
|
Stirring speed, rpm
|
|
[HCl]
|
[H2O2]
|
[NaClO]
|
[NaClO3]
|
|
HCl-H2O2-EG
|
5
|
0.4
|
-
|
-
|
5
|
25
|
30
|
500
|
|
HCl-NaClO-EG
|
3
|
-
|
0.5
|
-
|
10
|
25
|
30
|
500
|
|
HCl-NaClO3-EG
|
5
|
-
|
-
|
0.1
|
20
|
25
|
30
|
500
|
Table 4.
Comparison on leaching efficiency between the use of EG and H2O (without EG) as diluent (conditions: 25°C, 30 min, 500 rpm).
|
System
|
Pulp density, g/L
|
Leaching percentage, %
|
EG medium
|
H2O medium
|
|
Pd
|
Zn
|
Pd
|
Zn
|
|
5 M HCl-0.4 M H2O2 |
5
|
100
|
100
|
15.4
|
100
|
|
3 M HCl-0.5 M NaClO
|
10
|
100
|
100
|
62.8
|
87.0
|
|
5 M HCl-0.1 M NaClO3 |
20
|
100
|
100
|
52.5
|
89.2
|
Table 5.
Comparison on selective Pd(IV) precipitation between aqueous and ethylene glycol media
|
Aqueous media (7 M HCl-1% NaClO-H2O leachate) [35]
|
Ethylene glycol media (5 M HCl-0.1 M NaClO3-EG leachate)
|
|
- 98.2% Pd(IV) compound was precipitated under conditions: molar ratio, Pd(IV):NH4Cl = 1:30; 30 min; 60°C; 500 rpm
|
- 99.9% Pd(IV) compound was precipitated under conditions: molar ratio, Pd(IV):NaClO3 added:NH4Cl = 1:10:20; 30 min; 25°C; 500 rpm.
|
|
- Purity of ammonium chloropalladate ((NH4)2PdCl6) precipitates was over 99.99%.
|
- Addition of NaClO3 is crucial to oxidize Pd(II) to Pd(IV).
|
|
- Purity of ammonium chloropalladate ((NH4)2PdCl6) precipitates was over 99.99%.
|
