1. INTRODUCTION
Additive manufacturing (AM) is a relatively simple process and is expected to be suitable
for small-quantity batch production and the fabrication of objects with fine structures.
With the development of 3D printing technology, research on the application of ceramic
printed materials has also attracted attention. However, ceramic materials require
sintering or curing after printing, which changes the size or shape of the print.
Therefore, in the development of ceramic 3D printing technology, it is necessary to
study the sintering and hardening behaviors of ceramic materials that occur during
post-processing along with the printing technology.
Calcium silicate is a representative hydraulic material that is primarily used for
construction and biological applications. In hydraulic materials such as calcium silicate,
factors that can affect the hydration reaction, such as the pH, particle size, and
mixing ratio [1-3], as well as phase change, density, and shape changes occurring during hydration,
have been studied [3-5]. With the development of AM technology, hydraulic materials have attracted attention
as candidates for 3D printing. In one such study, Yang et al printed a Ca3SiO5 bone cement scaffold using a biodegradable binder and investigated the surface changes
of the scaffold over a long period of time [5]. In addition, Wu et al confirmed the printable time of a silica gel and tricalcium silicate mixture and
described the biodegradation behavior of this scaffold [6]. Further, Pei et al compared the strength change behaviors of calcium sulfate hemihydrate cement scaffolds
under a hydration atmosphere and time course [7]. Such studies make it clear that, when developing printing technology for hydraulic
materials, it is necessary to blend materials suitable for printing and hydration
processes and to consider various problems occurring during the hydration process.
In a previous report, two-step 3D printing method for hydraulic materials consisting
of printing and hydration as well as the formulation of a suitable printing paste
for this method were presented [8]. This process was accompanied by expansion deformation of the printed material in
the hydration step for hardening, and the expansion rate and strength of the hydrate
changed according to the tricalcium silicate (C3S) and tricalcium aluminate (C3A)
mixing ratio. In this case, the expansion was suppressed by the combination of two
materials with different reaction rates and mechanical properties; however, the key
factors that could stabilize the size were not investigated in detail. Therefore,
in this study, the effect of fillers on the shape deformation of printed materials
composed of C3S using silica, hydroxyl apatite (HA), and alumina was evaluated to
investigate the factors that inhibit the expansion deformation of the hydrate.
2. EXPERIMENTAL
2.1 Materials
CaCO3 (99.9%, Kojundo Chemical Co. Ltd., Japan) and SiO2 (99.9%, Kojundo Chemical Co. Ltd., Japan) were used as the starting materials for
the preparation of C3S(3CaO·SiO2). SiO2 and CaCO3 were mixed at a molar ratio of 1:3 with water to form a spherical shape. The mixture
was heated to 1600 °C and converted into C3S via heat treatment at this temperature.
The synthesized C3S was sieved through a 325 mesh after milling. Silica, HA (99.9%,
Sun Medical, Republic of Korea), and alumina (99.9%, Denka, Republic of Korea) were
used as filler materials, all of which were commercialized products with particle
diameters of approximately 300 nm. For the silica filler, three types of spherical
silica with different sizes of Sukgyung AT products were utilized (99.9%; Sukgyung
AT, Republic of Korea).
Water-miscible hydrophilic oils were employed to prevent C3S from being hydrated during
the printing process and to allow water to diffuse when the print was immersed in
water. The oils used as media or binders were polypropylene glycol (PPG; P400, Sigma-Aldrich,
USA) and polyethylene glycol (PEG; tested according to Ph. Eur., 1,000, Sigma-Aldrich,
USA). The printing paste was prepared such that the powder constituted 46 vol% of
the paste and the filler comprised 10% of the total volume. Even if the amount of
powder is constant, the viscosity of the paste changes depending on the particle size
and shape, and the extruded filament is greatly affected by the viscosity. Therefore,
the amount of PPG to PEG was adjusted so that the viscosity of the paste was 5×103 - 10 Pa·s in the range of shear rate 0.1 - 100/s by the parallel plate method of
a rotational viscometer. Other experimental details followed previous studies [8].
2.2 Printing scaffolds
The FDM printing method using an INVIVO premium printer (Rokit Healthcare, Republic
of Korea) was selected. The prepared paste was filled into a syringe equipped with
a 400-μm-diameter nozzle, and printing was performed at an extrusion rate of 2.0%,
a nozzle movement speed of 25 mm/s, and a stacking interval of 400 μm. Creator K (STL
to G-code conversion program supplied by Rokit Healthcare) was used, and the scaffold
was modeled in a 40% infill mode in a 10×10×10 (mm) cube without setting the outer
wall. The print was hardened via two steps: pre-hardening was performed by immersing
the print in a 0.05M H3 PO4 solution for 30 min, and then the sample was immersed in distilled water for 18 h.
The hydrated scaffolds were dried at 60 °C after rinsing with distilled water.
2.3 Analysis
The phase change of the raw material was confirmed using an X-ray diffractometer (Dmax-2200,
Rigaku, Japan). The diffraction patterns were measured at a scan rate of 5/min at
40 mA and 40 kV using a Cu Kα target. The particle size distributions of all powders
were checked using a laser scattering particle size distribution analyzer (Horiba,
Japan). The density and pore size distribution of the hydrated scaffold were measured
at 30,000 psi using a mercury porosimeter (Autopore IV 9500, Micromeritics, USA),
and the microstructure was observed via optical microscopy (DMX1200F, Nikon, Japan)
and scanning electron microscopy (SEM; JSM-6700F, Jeol, Japan).
3. RESULTS AND DISCUSSION
3.1 Hardening of C3S printout

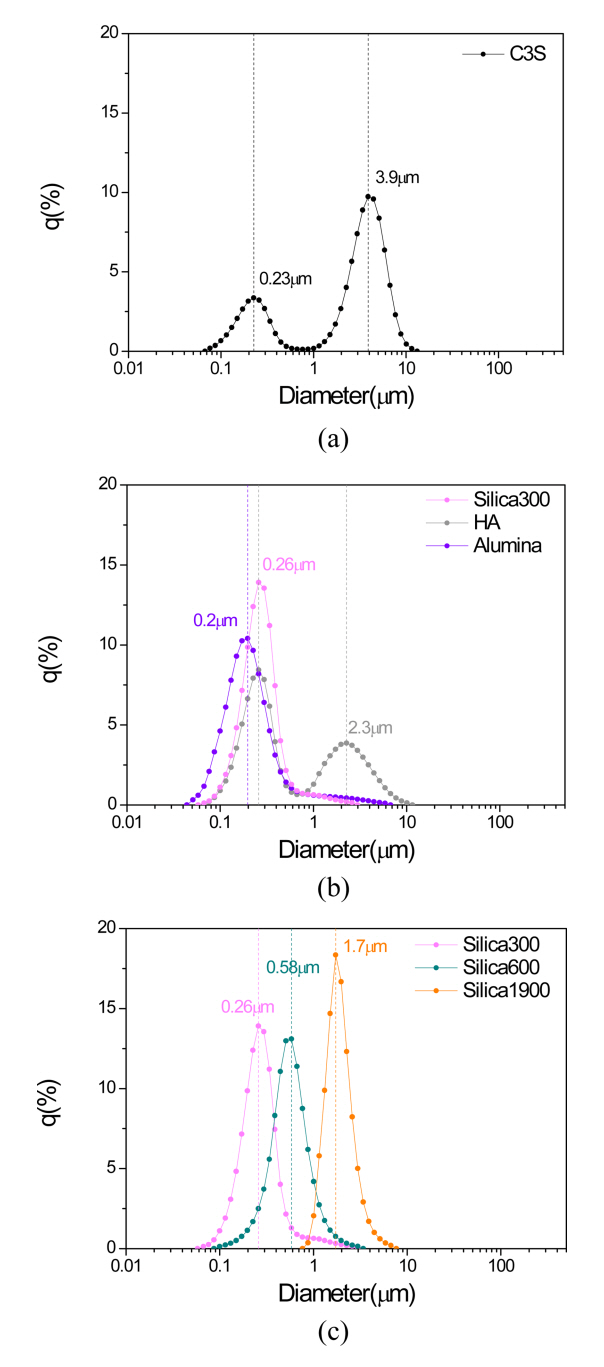

The synthetic C3S powder used in this study showed a bimodal distribution, in which
particles of approximately 200 nm and 4 μm were mixed in a ratio of approximately
1:2 (Fig 1(a)). Silica, HA, and alumina, which were used as fillers, were selected to have similar
particle sizes. As summarized in Table 1 and Fig. 1, these three powders have particle sizes of approximately 300 nm. In the case of
HA, aggregated particles were directly observed in the analysis results, as the average
particle diameter was 1200 nm, but the primary particles were 300 nm in diameter.

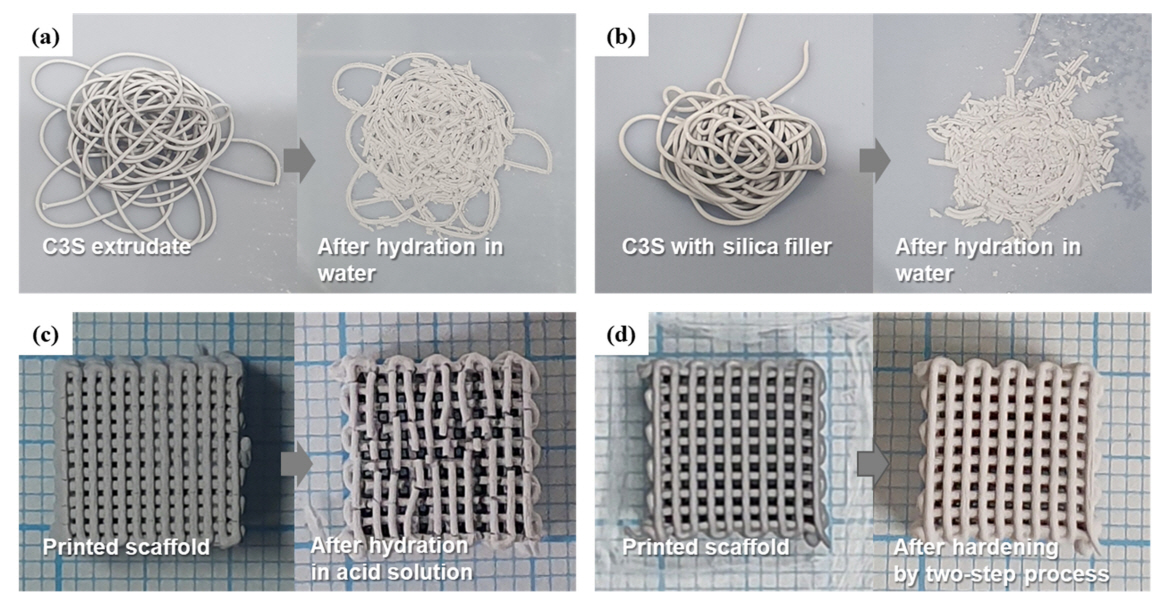

Figure 2(a) shows the dispersion of the extruded C3S paste in water. Because it took at least
12 h for C3S to harden completely, dispersion occurred faster than the hydration rate
of C3S paste in water condition. In previous studies, it was possible to obtain well-cured
scaffolds while maintaining the printed shape by incorporating C3A [8]. C3A, which has a relatively fast reaction rate, can induce the initial quick curing
of the printed material; for this reason, it has been suggested that C3A can effectively
maintain the structure’s shape and prevent deformation until the C3S is completely
cured. However, the inert silica, HA, and alumina fillers used in this study did not
show any ability to prevent C3S from dispersing (Fig 2(b)).
According to previous research, the main factor that enables curing with minimal change
in shape is the reaction rate. For example, changing the concentrations of the reactants
or products is the simplest means of controlling the reaction rate. As shown in the
reaction equation below, C3S generates Ca(OH)2 during hydration:
2(3CaO·SiO2) + 6H2O → 3CaO·2SiO·3H2O + 3Ca(OH)2.
Theoretically, decreasing the Ca(OH)2 concentration can increase the forward reaction rate. Therefore, the print mixed
with the filler was supported in a 0.05 M aqueous phosphoric acid solution, and it
was observed that the paste was not dispersed and the scaffold shape was maintained.
However, even in this case, when the sample was exposed to an acidic solution, corrosion
occurred simultaneously with hydration (Fig 2(c)).
Therefore, in this study, the curing process was divided into two steps. In the initial
curing step, the print was immersed in a 0.05 M phosphoric acid solution for approximately
30 min to induce a quick reaction to maintain the shape, and then the sample was transferred
to distilled water to complete the hydration reaction. As shown in Fig 2(d), it was possible to obtain a hydrate that maintained the shape of the printed scaffold
structure.
3.2 Expansion behaviors and strengths of hydrate scaffolds with different types of
filler materials

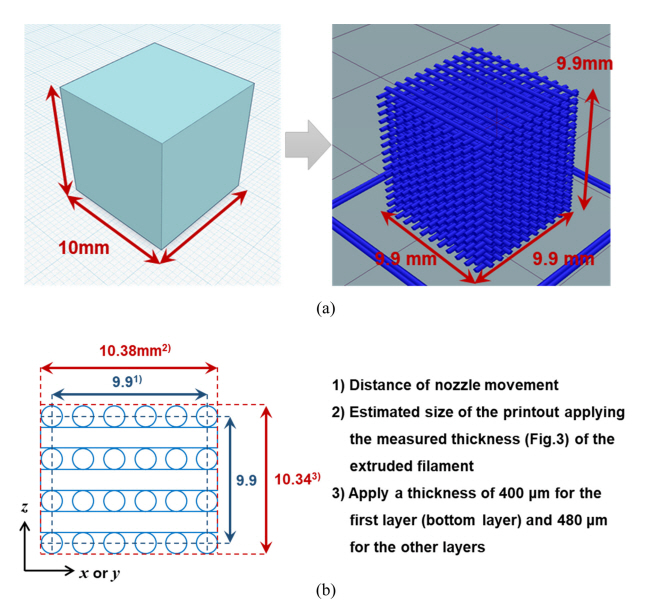

Because an uncured printout is a very soft paste, it is difficult to measure its size.
Therefore, its size was estimated as follows. Firstly, it was confirmed that the diameter
of the filament extruded from the 400 μm nozzle was 480 μm (Fig 3(a)). As the nozzle path moved in the modeling direction (Fig 4(a)), the cross-sectional dimensions of the print on the x-y plane were 10.38×10.38 (mm)
(Fig 4(b)). The height of the model with an interlayer thickness of 400 μm was 9.9 mm, and
considering that the diameter of the extruded product was 480 μm, the thickness of
the print was approximately 10.34 mm. Therefore, the dimensions of the printed scaffold
were expected to be 10.38×10.38×10.34 (mm).
The hydration reaction involves a change in print size. Because C3S absorbs water
molecules, expansion deformation occurs and a change in the size of the scaffold itself
is observed. In addition, the expansion behavior affects the change in the thickness
of the skeleton forming the scaffold. In the previous results, the size in the z-direction
showed a relatively small expansion rate compared with those in the x- and y-directions
[8]. Table 2 summarizes the size deformation behavior of the hydrates obtained in this study along
with the types of fillers.
These results also indicate that the deformations in the x- and y-directions are larger
than that in the z-direction. In particular, the scaffold hydrate prepared by mixing
the silica filler was measured to have dimensions of 10.39×10.39×10.25 (mm), corresponding
to a change of 0.1% or less. Considering that the skeleton diameter of this specimen
was maintained at 480 μm, it can be said that there was little change in the size
of the silica filler (Fig 4(b)). On the other hand, for the HA and alumina, the size of the hydrate increased by
3.28% and 6.55%, respectively. The expansion rate of the scaffold was the greatest
under the condition in which the alumina filler was used, and the width of its skeleton
expanded to 530 μm, representing a change of over 10% (Table 2, Figs 3(c) and (d)).
The hydration reaction affects not only the change in size of the scaffold but also
its mechanical properties, such as the compressive strengths of the hydrates, which
are shown in Fig 5. The strength values of the scaffolds do not coincide with their expansion behaviors,
but do exhibit similar tendencies. Specifically, the compressive strength under both
silica and HA conditions, where the size change is less than 4%, is >10 MPa, but that
of alumina, which expands by >6%, is only 6 MPa.
3.3 Scaffold microstrucure
The mechanical properties of a material are also determined by the properties of the
material itself, but the various factors, such as the phase, density, and microstructure,

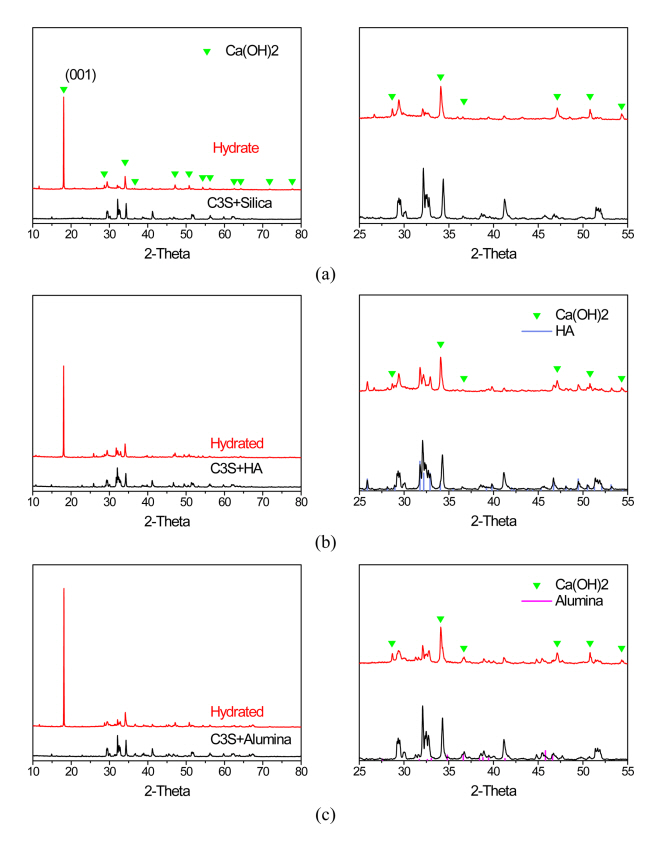

act in a complex manner. Firstly, X-ray diffraction analysis was performed to confirm
the reactivity of the filler along with the hydration reaction of C3S. As mentioned
in the previous section, C3S not only absorbs water molecules during hydration, but
also forms Ca(OH)2 crystals, so the reactivity of C3S can be confirmed by the generation of Ca(OH)2 . Comparing the diffraction patterns before and after hydration, the peaks at 32.2°
and 41.3°, representing C3S, decreased, and the peak corresponding to the (001) plane
of Ca(OH)2 increased significantly (Fig 6). Except for the relatively large Ca(OH)2 peak under the alumina condition, no significant differences were observed among
the three types of fillers. In the 25º–55º region the HA and alumina crystals or amorphous
silica did not show any change with curing.
The phase change characteristics occurring during the hydration process were similar
regardless of the type of filler; however, the expansion deformation was different.

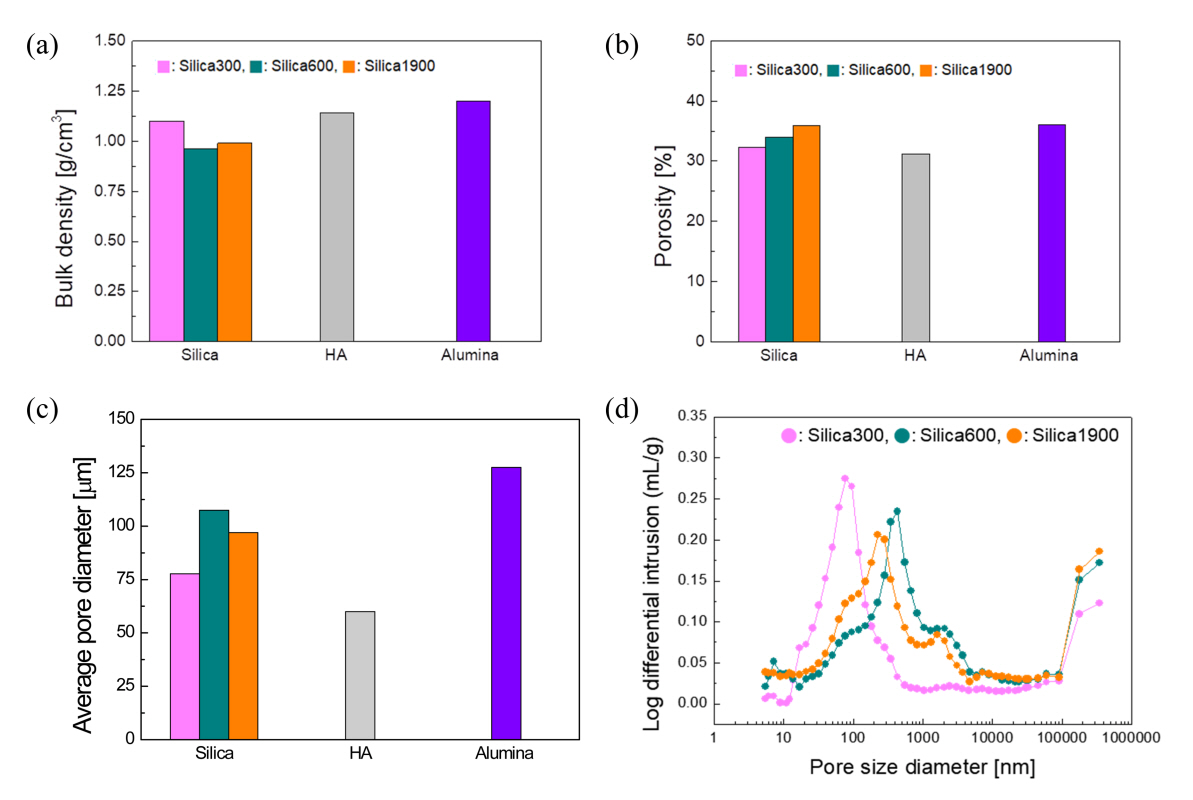

To compare the hydrate microstructures, the porosity of the scaffold and density of
the skeleton were measured using a mercury porosimeter. The differences in density
are shown in Fig 7(a), but the density changes are not in accordance with the expansion phenomenon. The
porosity and average pore size of these hydrates follow the order alumina > silica
> HA, showing tendencies similar to those of the compressive strength (Figs 7(b) and (c)). Conditions such as the amount of water, reaction time, temperature, and mixing
ratio of the raw materials are known to affect the formation of the hydrate microstructures
in hydraulic materials, and the microstructure of a material is a major factor determining
its mechanical properties. The similarity between the tendency of the compressive
strength of the scaffold hydrate and those of the porosity and pore size means that
the hydration reaction of C3S can be controlled by adjusting the type of filler.
To compare the microstructures of the hydrates, the surfaces and fracture surfaces
of the scaffolds were observed via SEM. As shown in Fig 8, the three types of scaffolds exhibit different structures. The plate-shaped and
rod-type particles appearing in this figure are all Ca(OH)2 crystals [9]. Plate-shaped particles are observed in the case of silica and HA filler, and rods
are found in the case of using HA and alumina. In the silica filler, the small plate-shaped
particles are evenly distributed, but they prevent densification of the base material,
forming a loose microstructure. Under the HA condition, relatively large plate-like
particles are evident and densely packed. Because this microstructure is similar to
that of a composite material using plate-shaped particles as fillers, it is presumed
that this structural form can express the highest strength among the considered cases.
When alumina is used as a filler, the fine particles seem to maintain the highest
density, but cracks due to volume expansion were observed on the surface, and the
most rod-shaped Ca(OH)2 was found.
Next, the factors affecting the hydration reaction were investigated, as C3S curing
starts by reacting with water. An anhydrous slurry was used in this study, and the
hydration reaction was induced by immersing the print in a water bath. For the scaffold
to harden, it was necessary for the water molecules to diffuse into the print body.
The fact that the filler, which did not participate in the chemical reaction of C3S,
affected the expansion and microstructure of the scaffold during the hydration process
indicated that the characteristics of the filler material were the main factors inducing
the diffusion of water molecules.
In a previous study, the mixing of C3A, which had a fast hydration reaction rate,
suppressed the expansion of hydrates and made it possible to obtain a well-hydrated
and hardened scaffold [8]. Although the fillers used in this study were all inert materials, they stably cured
C3S prints, and among them, silica and HA were effective. This finding indicates that
the hydrophilicity or wettability of the filler affected the hydration reaction.
Regarding the water curing of C3S, it has been reported that powders such as HA, alumina,
and silica can change the microstructure and strength of C3S hydrates, but the cause
has not been clearly explained [10-13]. However, one of the results confirmed in those studies is that the mixing of fillers
affects the hydration reaction rate of C3S, which is similar to the phenomenon shown
in this study. Although different fillers were selected, the hydration reaction rate
was measured and compared in all of these studies, and it was confirmed that the mixing
of the fillers affects the hydration reaction rate of C3S. These results can be said
to be similar to the phenomena shown in this study.
The fact that inert material can affect the hydration reaction of C3 means that interactions
exist between these substances and water molecules. The reason that an inert material
affects the hydration of C3 is because there is an interaction between the material
and water molecules. As is well known, different types and sizes of particles have
different surface charges, which determine the wettability of solvents [14-15]. In this study, the scaffold blended with silica or HA showed stable reaction characteristics
compared to the alumina mixture. All of the filler types showed similar absolute values
of surface charge under neutral conditions (pH 7), but as the pH increased, the surface
charge of alumina decreased to zero and the surface charge of silica and HA increased
in a negative direction [16-18]. Since the hydration of C3S produces Ca(OH)2, the vicinity of the scaffold reached a high pH as the reaction time elapsed, and
the wettability of silica and HA increased. A filler with a high absorption rate induces
the rapid diffusion of water molecules into the print body, and accelerates the hydration
of C3S. The reaction rate also affects the crystal growth of the Ca(OH)2 product. Among these filler materials, HA converted the printed materials into high-strength
scaffolds, because hydrates with dense structures were formed while growing plate-like
Ca(OH)2 to a uniform and well-packed size.
3.4 Size effect of silica filler in hardening
To check the effect of the filler size on the curing of the scaffold, the support
was printed using three types of silica powder, with particle sizes of 300, 600, and
1700 nm. During the hydration process, these scaffolds showed different strains depending
on the filler size; however, the scaffolds exhibiting the greatest changes had expansion
rates <2.5% (Table 1). Although the deformation was not large, the strength change of the scaffold was
notable: the larger the filler particles, the lower the measured compressive strength
(Fig 5). When 300 nm silica was used, the hydrate density was relatively high, porosity
was low, and pore size was small (Fig 7). The smaller the particle size, the greater the specific surface area. Hence, water
molecules could be diffused quickly into the print and water could be supplied effectively
to the surrounding C3S particles. Therefore, the curing rate of C3S was increased
and a high-density structure with smaller pores was formed, compared to when a filler
with a large particle size was used. Hence, this microstructure helped improve the
mechanical properties.
4. CONCLUSION
This paper presents a printing method for hydraulic materials using C3S, a representative
hydraulic material, and describes the deformation characteristics that occur during
the hydration process of printed matter. Silica, HA, and alumina, which do not affect
the reaction of C3S, were selected as fillers, and their effects on the shape and
mechanical properties of the printed matter were investigated. A support with dimensions
of 10.5 × 10.5 × 10.14 (mm) was printed using the FDM method, and a hydrated scaffold
was obtained through a two-step curing process.
The scaffolds showed different expansion rates depending on the type of filler; among
them, the silica and HA fillers produced the smallest expansion. HA formed a relatively
dense hydrate and, as a result, showed the highest compressive strength. Therefore,
the acceleration of the hydration reaction rate of C3S can be considered the most
important factor for obtaining a hydrate with a low strain rate and high density.
In this case, the filler material facilitated the diffusion of water molecules. In
addition, a filler with a large specific surface area was advantageous for promoting
hydration, compared to a filler with large particles.
An important issue in AM technology is precise printing. Deformation of the size or
shape during post-processing is one of the main reasons hindering the development
of printed ceramic materials. Knowing that the non-reactive filler can control the
moisture diffusion conditions and suppress expansion deformation during hydration,
it is expected that application fields of hydraulic materials with complex compositions,
such as biocement, can be expanded. However, it will be necessary to study the effects
of microstructural changes that happen during the hydration process, and to study
the stability of the method of correcting the hydrate and its size.
