1. INTRODUCTION
The use of fiber-reinforced polymer (FRP) composites has grown at an extraordinary
rate since the 1960s because of their multiple advantages, including high strength-to-weight
ratios, durability, corrosion resistance, flexibility, and fatigue properties [1-5]. FRP composites, such as carbon FRP (CFRP), glass FRP (GFRP), and basalt FRP (BFRP),
have a wide range of applications in aircraft, ships, automobiles, and civil infrastructure
[6-8]. For example, Miller et al. [9] investigated CFRP-reinforced bridge girders, and determined their stiffness was
increased by 10–37% compared to that of non-reinforced bridge girders. Furthermore,
they applied CFRP composites to a bridge located on Interstate 95 in Newark, Delaware,
and the bridge exhibited an 11.6% improvement in global flexural stiffness.
GFRP composites are also considered to have great potential as structural materials
for civil engineering applications such as bridge structures, owing to their remarkable
mechanical properties and low weight. Bakis et al. [10] asserted that GFRP materials have high fatigue and corrosion resistance, as well
as increased strength and stiffness per unit weight compared to traditional steel
and reinforced concrete structures. However, the application of GFRP composites in
civil engineering has been restricted because of their weak jointing systems, low
elasticity modulus, and absence of yield points [11–13]. In particular, the degradation behavior of GFRP composites at elevated temperatures
has raised significant attention. Kumahara et al. [14] studied GFRP-reinforced bars with two different types of resin (vinyl ester and
polyphenylene sulfide) exposed to elevated temperatures between 60 and 400°C. They
found that when the temperature reached 250 and 400°C, the bars reinforced with vinyl
ester lost 40% and 60% of their primary strength, respectively, whereas the bars reinforced
with polyphenylene sulfide did not experience the negative effects of heating up to
250°C. Ashrafi et al. [15] investigated the tensile strength of GFRP bars with different diameters subjected
to elevated temperatures (15–300°C). The tensile strength exhibited no significant
changes at temperatures up to 60°C; however, as temperature reached the glass transition
temperature of the resin matrix, a sudden drop in tensile strength was observed due
to resin softening. At temperatures higher than 200°C, a strength reduction of more
than 65% was observed owing to significant resin degradation and consequent resin/fiber
debonding.
Wang and Zha [16] studied GFRP bars under elevated temperatures and reported tensile strength reductions
of 22% and 67% at temperatures of 120 and 500°C, respectively. Ellis et al. [17] investigated the residual tensile properties of GFRP bars by heating the bars up
to 400°C and then cooling them down to room temperature. They demonstrated that GFRP
bars retained 83% of their room temperature tensile capacity after heating them to
400°C and cooling to room temperature. Manalo et al. [18] studied the flexural behavior of GFRP skins and a phenolic core sandwich under temperatures
ranging from room temperature to 180°C. According to their experiments, all the samples
retained more than 80% of their initial flexural strengths at 80°C, while at 150°C
the corresponding values for the GFRP skins and sandwich beams were 40% and 19%, respectively.
Schmidt et al. [19] studied two pultruded GFRP laminates with different resins (isophthalic polyester
and phenolic resins) subjected to elevated temperatures. They concluded that the laminates
with phenolic resin exhibited better flexural properties than those with isophthalic
polyester.
There are various types of glass fibers, including alkali, chemical, electric, and
strength–glass fiber. Electric-glass fiber (E-Glass fiber) is the most frequently
applied to GFRP composites because of its chemical resistance and relatively low cost.
Generally, FRP composites consist of fiber reinforcement and a resin matrix. The degradation
of FRP composites at elevated temperatures is greatly affected by the properties of
the resin matrix, rather than those of the fiber reinforcement, because of the high
ignition temperatures of the fibers.
The GFRP matrix undergoes softening and combustion processes above the glass transition
temperature (Tg) and decomposition temperature (Td), respectively [20]. Above Tg, the matrix softens and becomes rubbery, leading to degraded mechanical properties
due to the reduced ability to transfer shear loads between fibers [21,22]. Above Td, the matrix starts decomposing into toxic fumes and various other phases, significantly
reducing the mechanical performance of the GFRP materials [15,22].
This study investigated the microstructural and mechanical properties of GFRP plates
exposed to elevated temperatures of 150, 250, and 350°C. Tensile tests were performed,
and the maximum stress, maximum strain, and elastic modulus were calculated and analyzed.
2. MATERIALS AND METHODS
Plate-type GFRP composites, produced via pultrusion, consist of a phenolic resin matrix
and glass fiber reinforcement [23]. An unfired GFRP board (G0) with a width of 30 mm, length of 20 mm, and thickness
of 1 mm was cut into 10 mm2 square plates. The G0 samples were fired at different temperatures of 150, 250, 350,
and 450°C for 30 min and cooled in a furnace. The G0 samples heat-treated at 150,
250, 350, and 450°C are denoted as G150, G250, G350, and G450 (the sample codes are
listed in Table 1). The crystalline phases of the samples were identified using X-ray diffraction (XRD,
D8 Discover, Bruker, USA) at 40 kV and 40 mA in the 2θ range of 10°–60° at a scan
speed of 3°/min using Cu Kα1 radiation. The structures of the samples were examined using Fourier-transform infrared
(FT-IR) spectroscopy (VERTEX 80V, Bruker, Germany) at test wavelengths of 500–4000
cm–1. The surface microstructures of the samples were observed using field-emission scanning
electron microscopy (FE-SEM, SU8010, Hitachi, Japan). The surfaces of the samples
used for the FE-SEM observations were coated with Pt. The stress–strain curves of
the samples were obtained using a universal testing machine (311.31, MTS Systems Corp.,
USA). The maximum stress (tensile strength), maximum strain, and elastic modulus of
each sample were calculated from the stress–strain curves.
3. RESULTS AND DISCUSSION

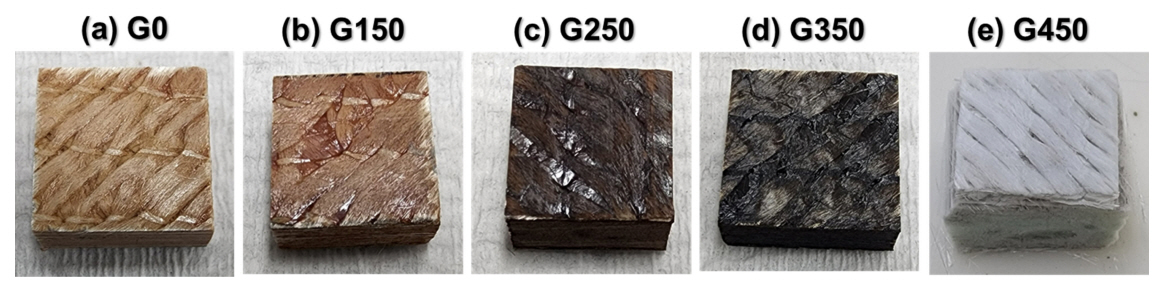

Figures 1(a)–(e) show photographs of G0, G150, G250, G350, and G450, respectively. After the heat
treatment, the samples exhibited a significant change, which was visible to the unaided
eye. The colors of G0, G150, G250, and G350 became darker as the firing temperature
increased, which was partially attributed to the oxidation of the phenolic resin matrix
[22]. Finally, for G450, the resin matrix completely evaporated, and only the glass fibers
remained.

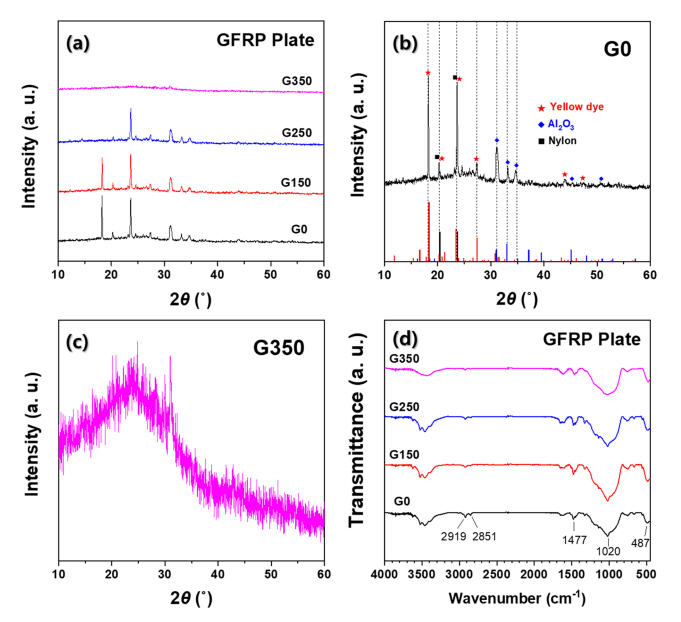

Figure 2(a) shows the XRD patterns of samples G0, G150, G250, and G350, while Figures 2(b) and (c) show the XRD patterns of samples G0 and G350, respectively. The broad peak at ~25°
corresponds to the amorphous halo of the glass fiber [24], and a broad peak at ~20° overlapping with the peak of the glass fiber corresponds
to the amorphous halo of the phenolic resin matrix [25]. As shown in Figure 2(b), various components of GFRP were identified: color index (C.I.) Solvent Yellow 56,
also called 1-phenylazo-4-N,N-diethylaniline (C16H19N3, JCPDS #00-047-2143), nylon ((C15H27N3O3)n/(CO(CH2)6NHCO(CH2)4NHCO(CH2)2NH)n, JCPDS #00-047-2017), and alumina (Al2O3, JCPDS #00-047-1771). C.I. Solvent Yellow 56 is a synthetic organic dye belonging
to the azo dye family, which is widely used as a coloring agent in various applications.
The peaks for C.I. Solvent Yellow 56 disappeared at temperatures above 250°C, which
was in accordance with the fact that the G250 sample lost most of its initial color,
as shown in Figure 1(c).
Nylon is a synthetic fabric material that is generally used as a peel ply in FRP composite
fabrication processes. Peel ply is an extra layer made of synthetic or natural fabric
materials, such as nylon, polyester, and glass fiber, used to achieve a smooth and
textured surface finish on the final product. A peel ply is applied to the surface
of the composite laminate during curing and is subsequently removed. However, during
the curing cycle in the composite manufacturing process, the peel ply fabric absorbs
some of the matrix resin and becomes an integral part of the laminate, causing the
appearance of nylon peaks in the XRD patterns [26]. Alumina is a common additive used for the synthesis of E-glass fibers that exhibit
good mechanical, electrical, and chemical properties [27].
As shown in Figure 2(c), when the GFRP plate was exposed to a temperature of 350°C, the peaks for C.I. Solvent
Yellow 56 and nylon no longer existed, indicating the volatilization or thermal decomposition
of additives at elevated temperatures. Only the small peaks corresponding to alumina
remained, suggesting that alumina potentially diffused into the glass fibers while
the glass fibers themselves remained intact.
Figure 2(d) shows the FTIR spectra of G0, G150, G250, and G350. The FT-IR spectra exhibited similar
band patterns for all samples. The largest band centered at 1020 cm–1 corresponds to the stretching modes of the Si–O–Si groups in the glass fiber, and
the band at 487 cm–1 was attributed to absorption by Si–O groups [28,29]. The bands centered at 2919 and 2851 cm–1 were assigned to C–H groups, and the band at 1477 cm–1 was due to C–H bending in the methylene groups of the phenolic resin [30]. The bands between 3200 and 3600 cm–1 are characteristic of the O–H stretching modes, which are due to the structure of
the phenolic resin. Therefore, the FT-IR results confirm that the GFRP plate samples
consisted of glass fiber reinforcements and a phenolic resin matrix.

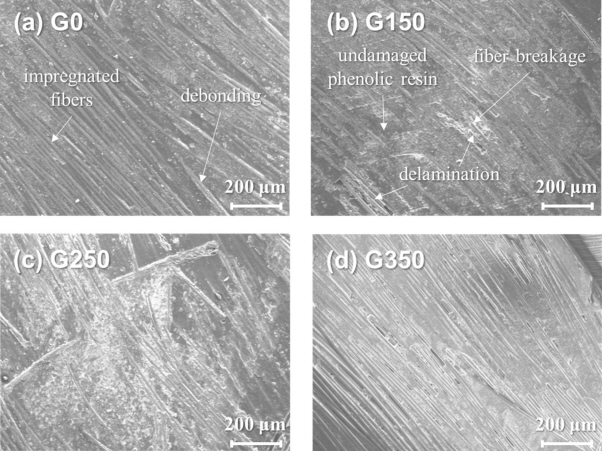

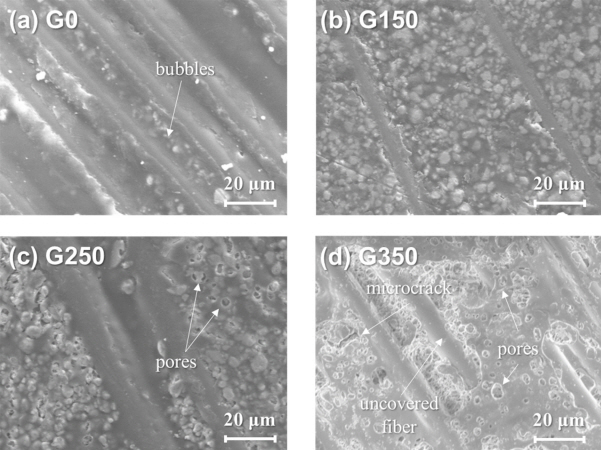

Figures 3(a)–(d) and 4(a)–(d) show low-magnification (×100) and high-magnification (×1000) FE-SEM images of the
G0, G150, G250, and G350 samples, respectively. Some surface defects such as debonding,
fiber breakage, delamination, and bubbles were observed in the G0 and G150 samples.
These surface defects are known to form after the machining of FRP composites. Morkavuk
et al. [31] reported that the machining process can produce defects such as debonding, micromatrix
cracking, delamination, fiber pullout, and fiber breakage due to the applied stress
and generated heat.
No significant difference was observed between the G0 and G150 samples in the low-magnification
FE-SEM images (Figure 3); however, the high-magnification images showed that the surface of the G150 sample
was covered with more bubbles than the G0 sample. For the G150 sample, these bubbles
were generated by the air in the intrinsic voids near the surface, which were expanded
by firing and pushed out the phenolic resin matrix. At 250°C, many of these bubbles
burst from overstress and generated pores on the surface (Figure 5(c)).
For the G350 sample, more pores were observed compared to the G250 sample, and some
pores merged to form larger pores. In addition, the pores and microcracks joined with
the delaminated region, which can cause severe damage to the resin matrix [32].

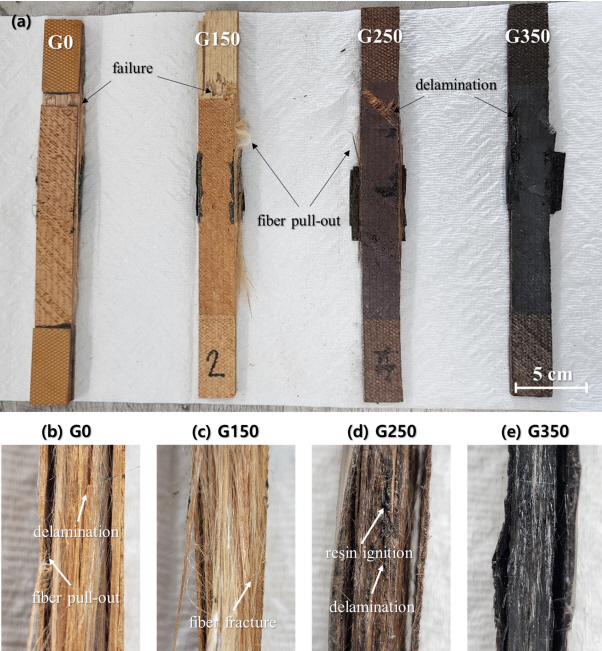

Figure 5 shows the failure modes of the specimens after exposure to elevated temperatures.
Specimens G0 and G150 exhibited similar failure modes. Fiber pull-out, fracture, and
delamination were observed in these specimens. For the G250 and G350 specimens, resin
ignition and severe delamination occurred, and numerous fiber fractures were observed
in the cross-sectional photographs of the specimens, which can be attributed to the
glass transition and decomposition of the resin matrix at the temperatures above Tg and Td, respectively. Bazli et al. [33] demonstrated that as the temperature increases, fiber separation and delamination
occur with resin softening and ignition.

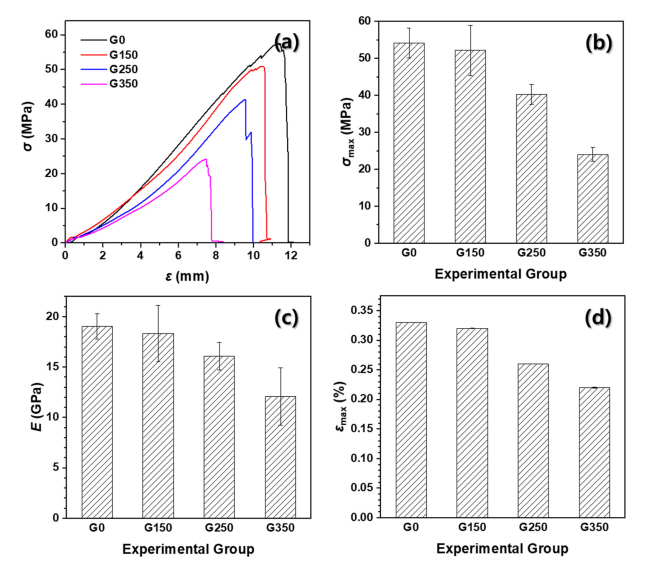

Figure 6(a) shows the stress–strain curves for specimens G0, G150, G250, and G350. The maximum
tensile stress (σmax), maximum strain (εmax), and elastic modulus (E) were obtained from the stress–strain curve of each specimen and are listed in Table 2. Figures 6(b) and 6(c) present the σmax and E for the specimens, respectively. The σmax values were 54.18, 52.16, 40.26, and 24.02 MPa for G0, G150, G250, and G350, respectively.
The σmax values of G150, G250, and G350 decreased by 3.73, 25.69, and 55.67% compared to that
of G0. In addition, the E values of G150, G250, and G350 also decreased by 3.78, 15.70, and 36.59% compared
to that of G0.
The σmax and E decreased gradually with increasing temperature. The mechanical degradation of the
FRP composites at elevated temperatures was in agreement with previous studies. For
instance, Sayed-Ahmed et al. [34] found that the exposure of FRP tendons to temperatures of 200, 300, and 400°C reduced
their strength by approximately 10, 37, and 74%, respectively. Further, Wang et al.
[16] demonstrated that GFRP bars under elevated temperatures of 120 and 500°C decreased
their tensile strength by 22 and 67%, respectively. Cao et al. [35] also reported that the tensile strength of FRP sheets were reduced when they were
exposed to a temperature of 200°C. The reduction in σmax and E was attributed to various factors such as the degradation of the mechanical properties
of the resin matrices due to glass transition and decomposition, debonding, and an
increase in surface defects. Jarrah et al. [36] asserted that the glass transition and thermal decomposition of the resin matrix
greatly reduced the tensile strength of GFRP and CFRP sheets. They also reported that
the tensile strengths of FRP sheets decreased because of the formation of cracks due
to oxidation, leading to debonding and a further reduction in the tensile strength
of the specimens.
Figure 6(d) shows the εmax values of each specimen. The εmax values were 0.33, 0.32, 0.26, and 0.22% for G0, G150, G250, and G350, respectively.
The εmax values decreased gradually with increasing firing temperature, which indicates that
the brittleness increased with increasing temperature. Brittle fractures of FRP composites
can cause cracks and lead to mechanical failure during operational service, even at
low mechanical loads [37]. Therefore, it can be concluded that the high brittleness of the heat-treated samples
caused their degraded mechanical strength. Furthermore, as shown in Figure 4(d), numerous large pores, microcracks, and severe delamination were observed on the
surface of the G350 sample, which is in accordance with its high brittleness and a
significant decrease in its mechanical properties.
4. CONCLUSIONS
The influence of elevated temperatures on the microstructure and mechanical properties
of GFRP plates was investigated. A series of GFRP plates were heat-treated at temperatures
of 150, 250, 350, and 450 °C. Most of the phenolic resin matrix of the G450 sample
decomposed and only the glass fibers remained. The XRD and FT-IR results confirmed
the presence of a glass fiber-reinforced phenolic resin matrix. Surface defects such
as debonding, fiber breakage, delamination, and bubbles were observed for the unfired
G0 and G150 samples, which were attributed to the machining process of the GFRP composites.
The surface of the G150 sample was covered with more bubbles than that of the G0 sample,
and the bubbles formed because the air in the intrinsic voids near the surface were
expanded by firing, and pushed out the phenolic resin matrix. Those bubbles burst
from overstress at 250°C and generated pores on the surface. Small pores merged to
form larger pores, and microcracks were identified on the surface of the G350 sample.
The σmax values of the GFRP plates heat-treated at 150, 250, and 350°C substantially decreased
from 54.18 to 52.16, 40.26, and 24.02 MPa, which corresponds to a reduction of 3.73,
25.69, and 55.67%, respectively, compared to that of the unfired GFRP plate. Further,
the E values of the GFRP plates fired at 150, 250, and 350°C gradually decreased from 19.05
to 18.33, 16.06, and 12.08 GPa, which corresponds to a reduction of 3.78, 15.70, and
36.59%, respectively, compared to that of the unfired GFRP plate. The degradation
of the mechanical properties of the GFRP plates at elevated temperatures was caused
by various factors, such as the degradation of the mechanical properties of the resin
matrix due to glass transition and decomposition, debonding, and an increase in surface
defects. The εmax values decreased gradually with increasing firing temperature, suggesting that the
brittleness of the GFRP plates increased at elevated temperatures.
