SegismundoEzequiel Q.
(Ezequiel Q. Segismundo)
*†
이병식
(Byung-Sik Lee)
*
김이형
(Lee-Hyung Kim)
*
구본홍
(Bon-Hong Koo)
**
Copyright © 2016, Korean Society on Water Environment
Key words
Filter media depth, Infiltration, Physical clogging, Sand filter, Stormwater management
1. Introduction
Stormwater infiltration systems were often employed to treat and manage the increased
volumes of urban runoff prior to its discharge into the bodies of water or infiltration
into the groundwater systems (Yong et al., 2013). It also assists on climate change adaptation by providing a source for non-potable
water supplies. These systems were proven to be effective in removing various stormwater
pollutants; however, they usually experience clogging which reduces its designed lifespan
and function. Clogging, a significant and highly unfavorable problem that occurs in
stormwater filters, was defined as the reduction in infiltration rate, also termed
as hydraulic conductivity or permeability, of a porous media that leads to an increased
overflows and long periods of ponding, resulting in a range of issues pertaining to
public safety (e.g. mosquito breeding or foul odor), flooding, aesthetics and damage
or failure filter system (Larmet et al., 2007, Le Coustumer et al., 2009). Several studies were available which are related to clogging. Blazejewski and Murat-Blazejewska (1997) stated that the accumulation of wastewater solids and vegetation debris, the growth
of biofilm onto the granular medium, roots and rhizomes, and the deposition of chemical
precipitates are the main factors of clogging; Langergraber et al. (2003) and Winter and Goetz (2003) identified that the suspended solid (SS) loading plays a more vital role in clogging
as compared to the growth of biomass which only has a minor effect; Knowles et al. (2011) assumed that clogging in a horizontal subsurface flow wetlands are generally caused
by physical and biological clogging by which the influence of clogging by chemical
adsorption and precipitation can be neglected. In general, the main and common factor
for clogging was attributed to the suspended particles or sediments that were carried
by stormwater runoff which blocks the small pores of a filter media. It was clear
that the active pore volume and the clogging process of a filter media were greatly
influenced by its characteristics and by the influent SS loading.
It was well known that in practice, the hydraulic performance and life span of a porous
filter media over time is dependent on filter bed designs specifically to the shape
and size of filter media and with the suspended particles present in the influent
(Kandra, Callaghan et al., 2014; Kandra, Deletic et al., 2014; Kandra, McCarthy et al., 2014; Knowles et al., 2011); the depth and arrangement of filter media (Kandra et al., 2012); and also to the characteristic and rate of inflows (Mercado et al., 2015; Siriwardene et al., 2007). In Kongju National University, South Korea, the constructed LID facilities were
designed to have a total depth that ranges from 0.8-1.7 m, by which was in accordance
with the standard LID design in USA that includes and implements a designed facility
depth ranging from 0.4-1.5 m (Fassman et al., 2013). Likewise, different types of filter media materials were now available and used
for the stormwater treatment. Sand filter, which was the typical and most common type
of filter, was used primarily due to its low-cost, abundance, and the ability to achieve
high removal rates of suspended solids of stormwater runoff. It was also intended
primarily for infiltration practices. In South Korea, natural type of sand filters
are widely used and generally incorporated and designed with other stormwater management
facilities such as infiltration trench and bioretention in order to act as a one set
of LID structure that treat and store urban stormwater runoff (MOE, 2014). Current clogging studies in stormwater filters have unfortunately been limited to
fine filter media (Hatt et al., 2008) or very coarse media (Hatt et al., 2007; Siriwardene et al., 2007), and were performed on case to case basis with the concept of a black box model.
This study was aimed to give a better understanding of the effect of filter media
depth (575 mm and 400 mm) on the rate and nature of clogging of a stormwater sand
filter system under continuous vertical flow condition through laboratory column experiments.
Impact of clogging on the pollutant removal, sediment accumulation along the filter
layer, and the development of pressure along the depth of the filter media were identified.
2. Materials and Methods
In any infiltration facility, it was difficult to monitor the actual clogging behavior
happening in the field due to several uncontrollable factors such as hydraulic loading
rate, consistency of inflows contaminant concentration, and filter media characteristics.
Due to these difficulties, improvised laboratory testing methods with specific boundary
conditions were used in order to better understand the clogging behavior of a stormwater
filter.
2.1. Experimental Set-up and Procedure
An improvised 1.1 m-high laboratory column apparatus having a diameter of 100mm, as
shown in Figure 1, was used to observe the clogging formation in a sand filter column. The sand filter
column was prepared under unsaturated state condition in order to mimic the actual
field phenomena before the introduction of rainfall precipitation. At the start of
the clogging experiments, the filter column was dosed with 8 m and 11.5 m of tap water
(45-50 pore volume of the filter media), for filter media depth of 575 and 400 mm
respectively, to ensure that the media was free of intrinsic dust prior to the introduction
of artificial stormwater runoff. Afterwards, synthetic runoff was introduced into
the filter column in a controlled continuous flow rate with the use of a pump. Synthetic
stormwater runoff having the target Total Suspended Solids (TSS) concentration was
prepared and stored in a tank with stirrer. Upon the introduction of influent into
the soil column, hydraulic heads were monitored with the use of the manometer tubes
attached on the valves that were attached at the side of the column apparatus. Tape
measure was also placed along the height of the column to observe the movement of
water along the filter media and ponding height section. Inflow and outflow water
samples were collected at designated time intervals until clogging occurs. The schematic
diagram of the whole experimental setup was shown in Figure 2.
Fig. 1.
Column Test Experiment Schematic Diagram.
Fig. 2.
Column Test Experiment Schematic Diagram.
2.2. Hydraulic Loading Rate and Influent Characteristics
Previous clogging studies (Hatt et al., 2007; Kandra, Callaghan et al., 2014; Kandra, Deletic et al., 2014; Kandra, McCarthy et al., 2014; Siriwardene et al., 2007) have performed clogging experiments by compressing the months of operational life
of the systems to weeks of experimentation. Continuous dosing event without drying
regime was adopted in this study until clogging occurs due to experimental time constraints
and logistical reasons. The hydraulic loading rate used was based on four factors:
the recorded rainfall intensities in Korea, the estimated amount of stormwater runoff
captured by the stormwater treatment facility, the theoretical catchment area and
the actual- laboratory scaling factor. Maniquiz et al. (2010) stated that the average rainfall intensity in Korea was 6 mm/hr. Moreover, an urban
road catchment area of 400 m2 was selected as the theoretical catchment area wherein it was assumed that the equivalent
filtration area of the laboratory column setup was about 1/100 of the actual treatment
facility and was capable of capturing 90% of the stormwater runoff. An estimated runoff
discharge amount of 6 ml/sec. for 6mm/hr rainfall intensity was obtained and implemented
based on the mentioned factors.
The focus of this study was limited only to total suspended solids (TSS) in stormwater
runoff. As studies suggest, majority of stormwater pollutants, especially heavy metals,
were attached to TSS. Synthetic runoff was used as influent in order to ensure the
consistency of concentration of suspended solids. It was prepared in a tank with stirrer
using tap water and sediments collected in highways with target TSS concentration
value of 150 mg/L that passed thru No.60 sieve (250 μm) sieve by which these values
are nearly similar to the TSS concentration and particle size used by Duncan (1999), Siriwardene et al. (2007) and Hatt et al. (2007). Furthermore, 0.2-2 mg/L of Sodium Hypochlorite (NaOCl) solution was added to the
synthetic runoff. Sodium hypochlorite was generally used for water treatment because
it was believed that the addition of this solution can help on disinfecting the suspended
solids from any biological matter present and it also helps on inhibiting any biological
activity that may happen within the filter system (Morganti, 2002)
2.3. Filter Media Arrangement and Characteristics
A layer of sand filter column was prepared in an improvised 1.1m-high laboratory column
apparatus in order to observe the clogging formation. A total of two non-vegetated
column experiments were performed having filter media made up of a layer of sand and
gravel with a certain depth denoted by S and G respectively as shown in Figure 3. The filter facility used, having a total depth of 1m, was based on the average LID
facility depth implemented in USA. The sand filter bed used for the two experiments
has different heights of 575 and 400 mm. The choice of 575 mm filter bed depth was
based on the facility total depth subtracted by the typical height for gravel drainage
layer and ponding height. The depth of gravel layer representing the drainage and
retention layer should have a standard depth greater than 125 mm (Huisman and Wood, 1974), wherein, a fixed 175 mm depth was used in this study. Moreover, for any stormwater
filter facility, the standard allowable ponding height used usually ranged from 150-300
mm to allow proper vegetative diversity. Ponding height of 250 and 425 mm was respectively
used for 575 and 400 mm sand filter depth. A filter media depth of 400 mm was selected
for the other column experiment for the purpose of evaluating the effects of filter
media depth on the development of clogging. The selection of 2-5 mm sand particle
size was within the 0.5 to 10 mm range by which results from previous study of Kandra, Deletic et al. (2014) showed that media size less than 0.5 mm generated a low permeable media whereas a
filter facilities having media particle sizes greater than 10 mm can have a low treatment
efficiency. Geotextile was placed at the interface of the sand and gravel layer in
order to avoid the migration of sand particles to the drainage layer and also to mimic
the actual field setup where in a geotextile was generally placed in between soil
layers having different properties. Properties of the filter media such as particle
size, specific gravity, porosity, uniformity coefficient, and saturated hydraulic
conductivity, as shown in Table 1, was determined prior to column testing by performing standard methods for testing
of soil. Filter media used was categorized as poorly graded sand “SP” based from Unified
Soil Classification Standards (USCS).
Fig. 3.
Filter Media Schematic Diagram.

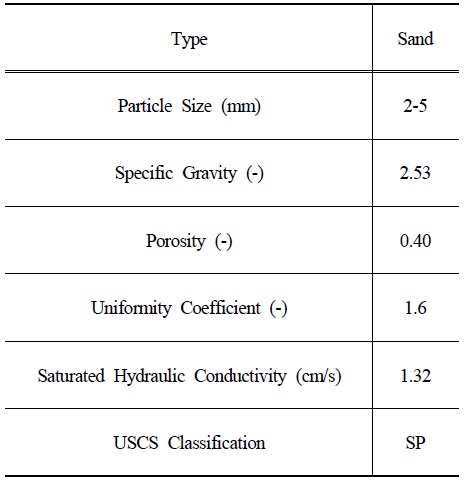

Table 1.
Filter Media Properties
2.4. Collection of Samples
Water flux or the flow rates entering and leaving the system, and the sediment mass
flux were measured at the start of simulation and every 15 minutes for the first hour
of experimentation and then every 30 minutes for the succeeding hours until the end
of test run. Change in Water flux and sediment flux can be calculated by using the
following equations:
where ΔWater flux (m3/m2-hr) is the change in flux between the inflow and outflow water, ΔSediment flux (kg/s-m2) is the change in mass flux between the inflow and outflow, Q (m3/hr) is the inflow and outflow discharge, SA (m2) is the surface area of the filter column, TSSconc (mg/L) is the influent or effluent amount of total suspended solids. Careful unit
conversion must be observed in utilizing Equations 1 and 2. Water sample collection
was done until complete clogging or premature clogging occurs. As described by Mercado et al. (2015), complete clogging is a state where the outflow was reduced to 15-20% of the initial
outflow without reaching water overflow, whereas ponding that would later result to
overflow without attaining the 80-85% reduction in initial outflow was characterized
as premature clogging.
2.5. Analytical Methodology
The grab water samples were analyzed for TSS concentration in accordance to standard
test methods and Particle Size Distribution (PSD) using Beckman Coulter LS230 Laser
Diffraction Particle Size with small volume module plus (Greenberg et al., 1992). Water movement along the filter media and ponding height of the column apparatus
as well as the manometer pressure head readings were observed and recorded until clogging
state was reached. At the end of each test run, where it was suspected that clogging
already occurred, the columns were carefully dismantled. Soil samples were obtained
at designated sample depths and were oven dried and sieved in order to determine the
amount of accumulated sediments. The sediments retained at different filter media
depths were also analyzed for PSD in order to determine the particle size range retained
on the specified layer. Moreover, the particle removal efficiency of the filter media
was evaluated by comparing the inflow TSS concentration with the TSS in the final
outflow water samples.
3. Results and Discussions
3.1. Influence of Filter Media Depth on the Rate of Clogging
It was observed that premature clogging prevails in all column experiments since ponding
and overflow were achieved without attaining the reduction of final outflow to 15-20%
of initial outflow. After the occurrence of clogging, the initial outflow for the
400 and 575 mm filter media depth was reduced by 22.73% and 16.50% respectively. As
shown in Figure 4, deeper (D = 575 mm) filter column clogs faster and was able to achieve higher cumulative
change in water flux even though the shallow depth (D = 400 mm) filter column gave
a higher reduction in initial outflow. A steeper cumulative water flux with respect
to time, as exhibited by the 575 mm depth column, may specify a higher permeability
reduction of the filter media. It was hypothesized that the mobilization of sediments
deeper to the filter column was mainly caused by having a higher allowable water pressure
built up at the ponding height section. As the water in the allowable ponding height
increases, an increase in pressure was also experience in the system which tends to
push the smaller sediments further down the column.
Fig. 4.
Cumulative Δ Water Flux of different filter media depth with respect to Time.
Note: (Qio = initial outflow discharge; Qfo = Final outflow discharge, ΔQ = % Change in discharge)
For D = 400 mm, Qio =5.86 ml/sec, Qfo = 4.53 ml/sec, ΔQ = 22.73%
For D = 575 mm, Qio = 5.70 ml/sec, Qfo = 4.76 ml/sec, ΔQ = 16.50%
The entrapment and entrainment of sediments deeper into the filter column tend to
reduce greatly the filter media’s active pore volume and thus affecting its permeability.
This scenario was predominant in the shallow filter column by which it exhibited a
higher value of initial outflow reduction. On the other hand, deeper column tends
to clog faster because there was a shorter depth available for ponding height; therefore,
a lesser value of allowable water pressure was experienced by the clogging layer developed
within the filter media. This hypothesis agrees with the study of Kandra, Deletic et al. (2014). It can also be seen in Figure 4 that an increasing trend in water flux signifies that a clogging layer was being
formed, while the constant or decreasing trend implies that a clogged “thin” layer
was breached. Infiltration of the clogged layer due to the applied force of the water
build up at the ponding height can somehow increase the lifespan of the system; however,
it can promote the transport of the accumulated sediment which can further affect
the effluent quality and induce the formation of a deep clogging layer. In addition,
a clogged layer was observed to be infiltrated for both filter media depth configuration
before reaching the premature clogging state, meaning that the pressure experienced
at this time was the limiting resisting capacity of the formed clogged layer before
reaching the full state of clogging.
As for the change in sediment mass flux, an increasing trend for both depth configurations
was evident, implying that the sediment content present in the stormwater effluent
was reduced over time. Figure 5 shows the cumulative change in sediment mass flux of both shallow and deep filter
column. The sediment removal for D = 575 mm was 15.73% higher as compared to D = 400
mm column despite having the faster time to clog. This observation agrees with the
hypothesis mentioned above, that the water pressure built up tends to push the sediments
deeper into the filter column or out of the system. The sediment accumulation for
the deeper column noticeably increases until it reaches clogging. The higher removal
amount of sediments of the deeper system may also be attributed to the increased contact
time between the sediment and filter media that enhances the adsorption/adhesion or
interception of particles. Moreover, sediments entrained and entrapped within the
filter media may also enhance and assist on further sediment capture that was happening
during the entire function of the filter system.
Fig. 5.
Cumulative Δ Sediment Mass Flux of different filter media depth with respect to Time.
3.2. Sediment Accumulation
Sediment accumulation of both filter depth configuration was highest at the upper
15% of depth then suddenly decrease as it reaches the bottom as shown in Figure 6. It was found that 79.64% of the total sediment trapped in the 575 mm filter media
depth, as compared to only 56.93% for the 400 mm depth, had accumulated at the upper
15% of the filter column. A cake layer was observed to form at the surface of the
filter column regardless of media depth. The formation of the cake layer was assumed
to be brought by the filter media enhanced sedimentation and filtration. It was observed
in Figure 6 that, for a shallow filter media depth, more sediment were mobilized and driven deeper
into the filter column. Moreover, the percentage of sediment trapped per gram of filter
media with respect to depth for different sediment particle sizes were presented in
Figure 7. The amount of 100-250 μm sediment particle size decreases with filter media depth
for both depth configurations; however; for 400 mm depth, the amount retained for
this particular sediment size range at the filter column profile was considerably
high as compared to the 575 mm depth. It was hypothesized that the chance for particle
entrainment of larger sediment size decreases across filter depth, wherein, smaller
sediment has the higher chance to go further down the filter column. On contrary,
the amount of particle sizes < 50 μm were found to increase with depth. This result
agrees with Wang et al. (2012) wherein the accumulation of fine particles (0-38.5 μm particle diameter) increases
with depth. It clearly agrees with the previous statement that the pressure increase
due to water built up in the allowable ponding height has the ability to push and
drive the small sediments particles deeper into the filter column.
Fig. 6.
Percentage of total sediment trapped with respect to the filter column depth.
Fig. 7.
Percentage of sediment trapped per particle size with respect to depth for filter
media having a depth of (a) 400 mm and (b) 575 mm.
3.3. Sediment Removal Efficiency when Clogging Developed
Particle removal efficiency of the filter column was determined by comparing the sediments
present in the inflow water with the water sample obtained from the final outflow.
Figure 8 shows the particle removal efficiency of different filter media depth configuration
for each distinct sediment particle size ranges. Positive removal efficiency of all
sediment particle sizes was observed for both 400 and 575 mm filter media depth. It
was evident that higher sediment removal efficiency for any sediment particle size
range was attained by 575 mm depth due to the longer contact time between the sediment
and filter media. The highest particle removal efficiency for both 400 and 575 mm
depth was observed for 25-50 μm particle size having a value of 96.45% and 98.58%
respectively. Influent water large sediments accumulation at the top of the filter
layer together with the effects of van der Waals force may successfully improve the
particle capture efficiency of smaller sediment particle size by which 25-50 μm sediment
particle size range is the one who benefitted a lot from such behavior. Moreover,
a 9.2% difference between the removal efficiency of 575 mm and 400 mm depth for particle
size range of 0-25 μm was found, wherein, the lower particle removal efficiency of
400 mm depth for this particular sediment size range may become unfavorable. Roger et al. (1998) stated that the particles < 50 μm has the highest concentration of heavy metals in
highways. Vaze and Chiew (2004) suggested that pollutant treatment facilities must have the ability to remove particulates
down to 11 μm in order to effectively remove Total Phosphorus (TP) and Total Nitrogen
(TN). Similarly, Bian and Zhu (2009) identified that concentration of heavy metals were highest for particle size fraction
of 63 μm and also, organic matter and nitrogen content generally increased with decreasing
particle sizes in the <500 μm. Overall, results showed that the sediment removal efficiency
of both depth configurations for any sediment particle size was high as clogging occurs.
Fig. 8.
Particle removal efficiency of different filter media depth configuration for each
distinct sediment particle sizes.
3.4. Pressure Head Development
Pressure head readings were only recorded at the sand-gravel interface due to the
presence of water built up on this section brought by the geotextile. It indicated
that the filter media at the other manometer port location exhibited an unsaturated
state soil condition by which correct manometer pressure readings can only be achieved
at the condition wherein the soil is saturated. As shown in Figure 9, certain relationship was still found between the water built up in the ponding height
and the pressure recorded at the sand-gravel interface. Both filter media depth configuration
showed that as the water starts to accumulate at the ponding height section of the
filter column, a decrease in pressure was experienced at the geotextile interface,
and vice-versa. This scenario implied that for both cases, surface filtration was
the main cause of clogging. Fluctuating pressure head measurement at the geotextile
interface, as observed in Figure 9(b), indicated that a clogging layer was being formed or infiltrated. This pressure
head fluctuation was prevalent on shallow media depth where it may imply that there
was a more active particle rearrangement and movement happening within the filter
system. Furthermore, a decrease in water head at the surface of filter media was observed
for both cases before reaching the premature clogging condition.

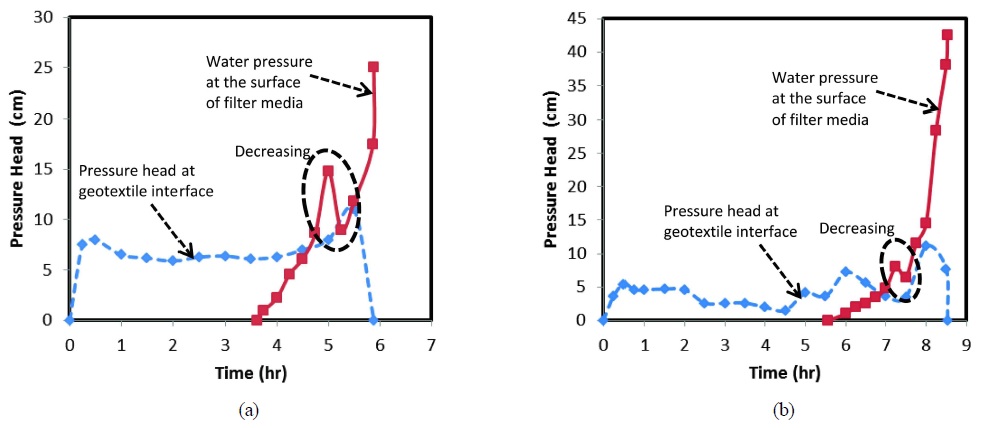

Fig. 9.
Pressure head development at geotextile interface and surface of the filter media
for filter media depths of (a) 575 mm and (b) 400 mm.
4. Conclusion
Laboratory column experiments can provide insights which can be helpful to better
understand how much a filter system would perform over time. This study was executed
in order to evaluate the effect of filter media depth in the clogging formation of
a stormwater sand filter. The deposition of a blanket or “cake” layer on the top of
the substrate was found to be the main reason for the occurrence of premature clogging
in all filter media depth configurations. Results showed that filter media depth greatly
affects the performance and clogging rate of a nonvegetated sand filter having an
average influent flow rate. It was evident that an increase in filter media depth
resulted in a high sediment removal performance; however, it leads to a shorter filter
lifespan. The improved sediment removal of the deeper systems was the result of smaller
allowable ponding height and increased contact time between the sediment and filter
media. The allowable ponding height was found to be a critical factor for clogging;
for it was the main source of the allowable water pressure build up that mobilizes
and drives of the sediments deeper into the column under continuous flow fluctuating
head conditions. The clogging layer for both depth configurations were identified
to have occurred in the upper 15% of the media depth generally brought by the filtration
of 100-250 μm sediment particle sizes. Both filter bed configurations performed well
by giving a high positive removal efficiency values in all sediment particle size
ranges. This study suggests that scrapping of the first 15% of the filter media for
the first set of maintenance can significantly improve the hydraulic function of a
clogged stormwater filter system. Moreover, the choice of filter media depth to be
used on field applications still depends on the purpose of the facility and on the
overall construction and maintenance cost.
Acknowledgements
This research was funded by the BK 21+ LID/GSI Research Team and the grant [13건설연구
S04 (3SCIPS04)] of MOLIT and KAIA. The authors were grateful for their support.
References
(2009), Particle Size Distribution and Pollutants in Road-deposited Sediments in Different
Areas in Zhenjiang, China, Environmental Geochemistry and Health, Bian, B. and Zhu,
W. (2009). Particle Size Distribution and Pollutants in Road-deposited Sediments in
Different Areas in Zhenjiang, China, Environmental Geochemistry and Health, 31(4),
pp. 511-520., Vol. 31, No. 4, pp. 511-520
(1997), Soil Clogging Phenomena in Constructed Wetlands with Subsurface Flow, Water
Science and Technology, Blazejewski, R. and Murat-Blazejewska, S. (1997). Soil Clogging
Phenomena in Constructed Wetlands with Subsurface Flow, Water Science and Technology,
35 (5), pp. 183-188., Vol. 35, No. 5, pp. 183-188
(1999), Urban Stormwater Quality: A Statistical Overview, Duncan, H. P. (1999). Urban
Stormwater Quality: A Statistical Overview, Report No. 99/3, Cooperative Research
Centre of Catchment Hydrology, Melbourne, Australia.
(2013), Media Specification for Stormwater Bioretention Devices, Fassman, E. A., Simcock,
R., and Wang, S. (2013). Media Specification for Stormwater Bioretention Devices,
Technical Report 2013/011, Auckland UniServices for Auckland Council, Auckland, New
Zealand, pp. 1-115., pp. 1-115
(1992), Standard Methods for the Examination of Water and Wastewater, Greenberg, A.
E., Clesceri, L. S., and Eaton, A. D. (1992). Standard Methods for the Examination
of Water and Wastewater, American Public Health Association (APHA) (18th edn.) Washington,
D.C., USA.
(2007), Treatment Performance of Gravel Filter Media: Implications for Design and
Application of Stormwater Infiltration Systems, Water Research, Hatt, B. E., Fletcher,
T. D., and Deletic, A. (2007). Treatment Performance of Gravel Filter Media: Implications
for Design and Application of Stormwater Infiltration Systems, Water Research, 41,
pp. 2513-2524., Vol. 41, pp. 2513-2524
(2008), Hydraulic and Pollutant Removal Performance of Fine Media Stormwater Filtration
Systems, Environmental Science and Technology, Hatt, B. E., Fletcher, T. D., and Deletic,
A. (2008). Hydraulic and Pollutant Removal Performance of Fine Media Stormwater Filtration
Systems, Environmental Science and Technology, 42(7), pp. 2535-2541., Vol. 42, No.
7, pp. 2535-2541
(1974), Slow Sand Filtration, Huisman, L. and Wood, W. E. (1974). Slow Sand Filtration,
World Health Organization, Geneva, Switzerland, pp. 1-122., pp. 1-122
(2014), Bioclogging in Stormwater Filters, Journal of Environmental Engineering, Kandra,
H. S., Callaghan, J., Deletic, A., and McCarthy, D. (2014). Bioclogging in Stormwater
Filters, Journal of Environmental Engineering, 141(2), 04014057., Vol. 141, No. 2,
pp. 04014057
, Impact of Filter Design Variables on Clogging in Stormwater Filters, Kandra, H.
S., Deletic, A., and McCarthy, D. (2012). Impact of Filter Design Variables on Clogging
in Stormwater Filters, In: WSUD 2012: Water Sensitive Urban Design; Building the Water
Sensitive Community; 7th International Conference on Water Sensitive Urban Design,
Barton, A.C.T.: Engineers Australia, pp. 38-45., pp. 38-45
(2014), Assessment of Impact of Filter Design Variables on Clogging in Stormwater
Filters, Journal Water Resources Management, Kandra, H. S., Deletic, A., and McCarthy,
D. (2014). Assessment of Impact of Filter Design Variables on Clogging in Stormwater
Filters, Journal Water Resources Management, 28(7), pp. 1873-1885., Vol. 28, No. 7,
pp. 1873-1885
(2014), Assessment of Clogging Phenomena in Granular Filter Media used for Stormwater
Treatment, Journal of Hydrology, Kandra, H. S., McCarthy, D., Fletcher, T. D., and
Deletic, A. (2014). Assessment of Clogging Phenomena in Granular Filter Media used
for Stormwater Treatment, Journal of Hydrology, 512, pp. 518-527., Vol. 512, pp. 518-527
(2011), Clogging in Subsurface-flow Treatment Wetlands: Occurrence and Contributing
Factors, Ecological Engineering, Knowles, O., Dotro, G., Nivala, J., and Garcia, J.
(2011). Clogging in Subsurface-flow Treatment Wetlands: Occurrence and Contributing
Factors, Ecological Engineering, 37, pp. 99-112., Vol. 37, pp. 99-112
(2003), Evaluation of Substrate Clogging Processes in Vertical Flow Constructed Wetlands,
Water Science and Technology, Langergraber, G., Haberl, R., Laber, J., and Pressl,
A. (2003). Evaluation of Substrate Clogging Processes in Vertical Flow Constructed
Wetlands, Water Science and Technology, 48(5), pp. 25-34., Vol. 48, No. 5, pp. 25-34
(2007), Bacteria and Heavy Metals Concomitant Transfer in an Infiltration Basin: Columns
Study Under Realistic Hydro Dynamical Conditions, Larmet, H., Delolme, C., and Bedell,
J. P. (2007). Bacteria and Heavy Metals Concomitant Transfer in an Infiltration Basin:
Columns Study Under Realistic Hydro Dynamical Conditions, In: NOVATECH 2007: 6ht International
Conference on Sustainable Techniques and Strategies in Urban Water Management, Lyon,
France, 25-28 June 2007, pp. 615-622., pp. 615-622
(2009), Hydraulic Performance of Biofilter Systems for Stormwater Management: Influences
of Design and Operation, Journal of Hydrology, Le Coustumer, S., Fletcher, T. D.,
Deletic, A., Barraud, S., and Lewis, J. F. (2009). Hydraulic Performance of Biofilter
Systems for Stormwater Management: Influences of Design and Operation, Journal of
Hydrology, 376(1-2), pp. 16-23., Vol. 376, No. 1-2, pp. 16-23
(2010), Multiple Linear Regression Models of Urban Runoff Pollutant Load and Event
Mean Concentration Considering Rainfall Variables, Journal of Environmental Sciences,
Maniquiz, M. C., Lee, S. Y., and Kim, L. H. (2010). Multiple Linear Regression Models
of Urban Runoff Pollutant Load and Event Mean Concentration Considering Rainfall Variables,
Journal of Environmental Sciences, 22(6), pp. 946-952., Vol. 22, No. 6, pp. 946-952
(2015), Laboratory Study on the Clogging Potential of a Hybrid Best Management Practice,
Desalination and Water Treatment, Mercado, J. M. R., Maniquiz-Redillas, M. C., and
Kim, L. H. (2015). Laboratory Study on the Clogging Potential of a Hybrid Best Management
Practice, Desalination and Water Treatment, 53(11), pp. 3126., Vol. 53, No. 11, pp.
3126
(2014), Manual of Nonpoint Source Pollutant Treatment Facility: Establishment, Management,
and Operation, Ministry of Environment (MOE). (2014). Manual of Nonpoint Source Pollutant
Treatment Facility: Establishment, Management, and Operation, Sejong City, Korea.
(2002), Sodium Hypochlorite Generation for Household Water Disinfection: A Case Study
in Nepal, Morganti, L. (2002). Sodium Hypochlorite Generation for Household Water
Disinfection: A Case Study in Nepal, Massachusetts Institute of Technology, Boston,
USA, pp. 1-131., pp. 1-131
(1998), Mineral, Physical and Chemical Analysis of the Solid Matter Carried by Motorway
Runoff Water, Water Resources, Roger, S., Montrejaud-Vignoels, M., Andral, M. C.,
Herremans, L., and Fortune, J. P. (1998). Mineral, Physical and Chemical Analysis
of the Solid Matter Carried by Motorway Runoff Water, Water Resources, 32(4), pp.
1119-1125., Vol. 32, No. 4, pp. 1119-1125
(2007), Clogging of Stormwater Gravel Infiltration Systems and Filters: Insights from
a Laboratory Study, Water Research, Siriwardene N., Deletic A., and Fletcher, T. D.
(2007). Clogging of Stormwater Gravel Infiltration Systems and Filters: Insights from
a Laboratory Study, Water Research, 41(7), pp. 1433-1440., Vol. 41, No. 7, pp. 1433-1440
(2004), Nutrient Loads Associated with Different Sediment Sizes in Urban Stormwater
and Surface Pollutants, Journal of Environmental Engineering, Vaze, J. and Chiew,
F. H. (2004). Nutrient Loads Associated with Different Sediment Sizes in Urban Stormwater
and Surface Pollutants, Journal of Environmental Engineering, 130(4), pp. 391-396.,
Vol. 130, No. 4, pp. 391-396
(2012), Surface Clogging Process Modeling of Suspended Solids during Urban Stormwater
Aquifer Recharge, Journal of Environmental Sciences, Wang, Z., Du, X., Yang, Y., and
Ye, X. (2012). Surface Clogging Process Modeling of Suspended Solids during Urban
Stormwater Aquifer Recharge, Journal of Environmental Sciences, 24(8), pp. 1418-1424.,
Vol. 24, No. 8, pp. 1418-1424
(2003), The Impact of Sewage Composition on the Soil Clogging Phenomena of Vertical
Flow Constructed Wetlands, Water Science and Technology, Winter, K. J. and Goetz,
D. (2003). The Impact of Sewage Composition on the Soil Clogging Phenomena of Vertical
Flow Constructed Wetlands, Water Science and Technology, 48(5), pp. 9-14., Vol. 48,
No. 5, pp. 9-14
(2013), Predicting Physical Clogging of Porous Permeable Pavements, Journal of Hydrology,
Yong C. F., McCarthy, D. T., and Deletic, A. (2013). Predicting Physical Clogging
of Porous Permeable Pavements, Journal of Hydrology, 481, pp. 48-55., Vol. 481, pp.
48-55
