(Young Joon Cho)
1
(Hyo Sik Chang)
1*
Copyright © 2022 The Korean Institute of Metals and Materials
Key words(Korean)
kerfless, Ni electroplating, epoxy, Al metal paste, exfoliation. stress-induced layer
1. Introduction
Most silicon (Si) solar wafers are produced by diamond wire sawing of crystalline
silicon (c-Si) ingots. Kerf loss is unavoidable with this diamond wire sawing method.
Kerf loss is known to be approximately 50% for a 200 μm thick wafer and increases
to approximately 70% as the wafer thickness decreases to 100 μm [1]. Additionally, it is difficult to produce a Si wafer with a thickness of less than
50 um using diamond sawing. However, Mierlo et al. (2017) reported that the Direct
Wafer can reduce Si material losses by 50% by preventing kerf loss during wire sawing
[2]. Finally, high cost-competition can be achieved by decreasing the wafer cost, which
is approximately 60% of the total manufacture cost of c-Si solar cells [3-5]. Kerfless wafering technology has been investigated since 2000 in an effort to overcome
the shortcomings of wire sawing. Kerfless wafering is a beneficial technique that
enhances the cost effectiveness of crystalline silicon (c-Si) solar cells by preventing
silicon (Si) waste during diamond sawing. Kerfless wafering technology has several
forms, including lift-off, exfoliation, controlled spalling, and kerf-free wafering.
Reported methods include the Stress-induced Lift-off Method (SLIM-cut) [6], the “Epifree” process [7], the seed layer approach [8-10], and ion beam-induced cleaving technology [11,12].
SLIM-cut was developed at IMEC in 2008 and applied to the solar cell [6], and is one of the most widespread kerfless wafering methods. Various materials
are used as the stress induced layer (SIL), including silver and aluminum metal paste
[13], epoxy [14], and electroplated Ni layer [15]. Stress is induced by the difference in the coefficient of thermal expansion (CTE)
between the SIL and the Si mother wafer, and the stress is increased by thermomechanical
treatment. A crack is initiated by this stress that propagates parallel to the surface
through the sample. As the crack spreads, a thin Si foil is lifted-off from the Si
mother wafer. A notch is used to propagate the crack parallel to the surface through
the sample during the SLIM-cut method. The notch is a type of crack that is made in
the top or the side of an Si wafer [16,17].
In this study, the SLIM-cut method was used to exfoliate a Si foil from a Si mother
wafer. Al paste, epoxy, and electroplated Ni layers were used as the SIL and compared.
In addition, the notch was applied by laser scribing on the top surface and the side
of the wafer. We summarize the Si lift-off processes for Al paste, epoxy, and electroplated
Ni layers in Table 1.
2. Experimental Procedures
In this study, we investigated the Si lift-off from a mother wafer using Al paste,
epoxy, and electroplated Ni layers as the SIL. A 750 μm-thick Si semiconductor wafer
was used as the mother wafer and was cleaned in piranha solution before introducing
the SIL. The CTE of the stress-induced material (SIM) should be larger than that of
Si during the SLIM-cut method, and the SIM should be etched effortlessly after the
lift-off. The SIM should be uniformly applied to the area.
2.1. Aluminum Layer
The Al paste layer was screen-printed on the Si mother wafer. Prior to screen-printing,
the Si mother wafer was precleaned with piranha solution, DI rinsing, and 1% diluted
hydrofluoric acid (HF) dip for 1 min to remove the native oxide layer. Stress was
induced by the difference in CTE of the Al (23.03 × 10-6/°C) and Si (4.2 × 10-6/°C) during the air cooling process. The thickness of the Al paste layer per one screen-printing
was about 50 μm. After screen-printing, the sample was dried for 180s at 150 °C in
the oven and then heated at approximately 800 °C to 950 °C for 5min. After the drying
process, the sample was heated using a rapid thermal process (RTP) and cooled to room
temperature. The thickness of the Si foil was similar to that of the Al paste layer.
The thickness of the Si foil increased as the thickness of the Al paste layer increased.
H3PO4 (85%) solution was used to remove the Al paste layer.

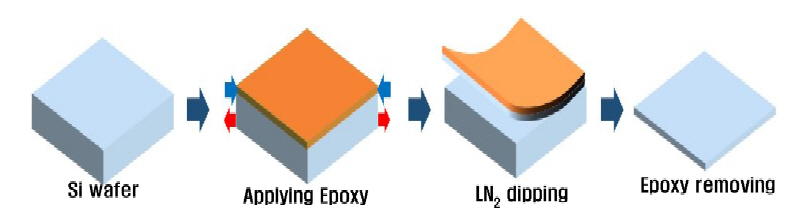

2.2. Epoxy Layer
Bisphenol - A - (epichlorhydrin) translucent epoxy (MG Chemicals Company) was used
as the SIL. Epoxy and resin (used as a hardener) were mixed at a 2:1 ratio and stirred
by an impeller for 10 min. The Si mother wafer was cut to 5 cm × 5 cm and cleaned
using piranha solution. After stirring the epoxy and resin, the resulting mixture
was cured and uniformly applied to the Si mother wafer. After drying for 1 h, the
sample was dipped into liquid nitrogen (LN2). The Si foil was lifted-off in LN2 and the epoxy was etched using piranha solution, as shown in Fig 1.
2.3. The Notch Creation by Laser Scribing
A notch was made by laser scribing to make the exfoliation of Si foil effortless and

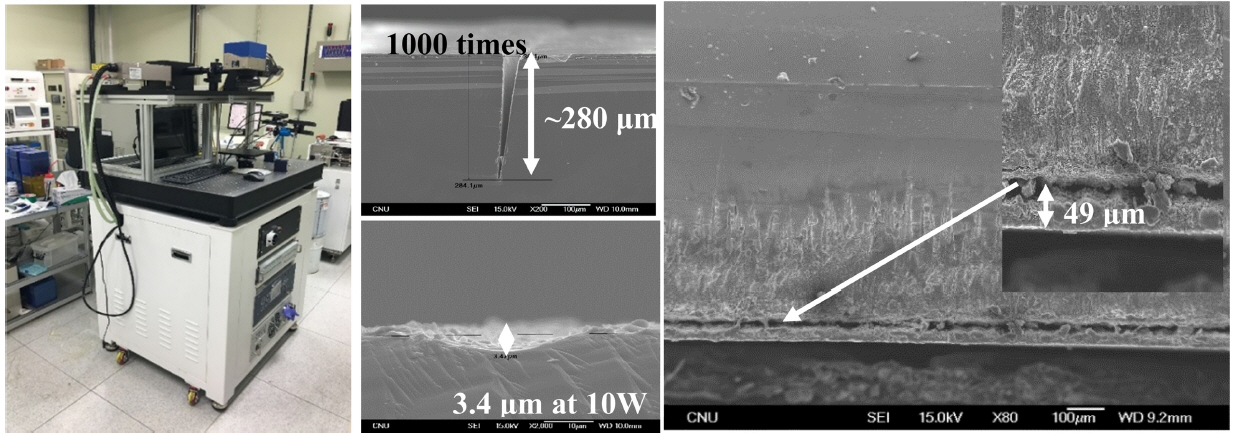

to control the crack propagation during the lift-off. As shown in Fig 2, the system is comprised of a UV laser source, beam delivery optics with a scanner
device, a camera alignment detection part, control electronics, a loading stage, a
safety part, and a control PC. The depth and position of the notch can be easily controlled
by the laser power, line scribing number, and jig. The direct method for crack initiation
is to create a notch on the top and the side of the substrate. Excellent performance,
with narrow scribing lines and small holes of approximately 20 to 25 μm was achieved
with the 355 nm (ultra-violet) wavelength laser beam. The Scanning Area was 170 ×
170 mm2, and the maximum power was 10 watts. The depth of line at 1000X laser scribing was
approximately 280 μm, and the depth of the line at maximum power was 3.4 μm, as shown
in Fig 2.
2.4. Nickel Electroplating
The substrate of the Ti/Ni seed layer on the Si wafer was cut into a 10 cm × 10 cm
square. Copper (Cu) tape (used as the electrode) was attached to the edges of the
Si mother wafer and Kapton tape was attached to the substrate. Ni was electroplated
onto a Ti/Ni seed layer, which was grown by evaporator. Sodium citrate tribasic dihydrate
and nickel chloride hexahydrate were used to electroplate Ni onto the Si mother wafer.
Nickel chloride (475.38 g) and sodium citrate (58.82 g) were mixed into the deionized
water (DIW) 2L at 26 °C, and the pH was adjusted to approximately 3 to 3.5. The solution
was stirred until the bubbles disappeared, for approximately 4 to 24. After stirring
the solution for approximately 4 to 24 h, the substrate was dipped into the solution.
The Ni was electroplated to the Si surface, excluding the area covered by Kapton tape.
The solution was heated to 60 °C. Prior to electroplating, the contamination and oxide
on the surface of the substrate were removed using a diluted hydrochloric acid to
prevent the oxide layer from hindering the adhesion of Ni to Si on the substrate.
After the pre-treatment of the substrate was completed, the substrate was dipped into
the electroplating solution. The electroplating started after the current was set.
The current was calculated by multiplying the electroplating area by the current density.
The Ni electroplating was carried out using a current density of 8mA/cm2, an electroplating time of 2 h 50 min, a temperature of 60 °C, and a stirring speed
of 150 rpm. After the Ni electroplating, the sample was dipped into the DIW. The electroplated
Ni layer and Si foil were lifted-off from the Si mother wafer. After the lift-off,
the electroplated Ni layer was etched with SC2 cleaning solution.
3. Results and Discussion

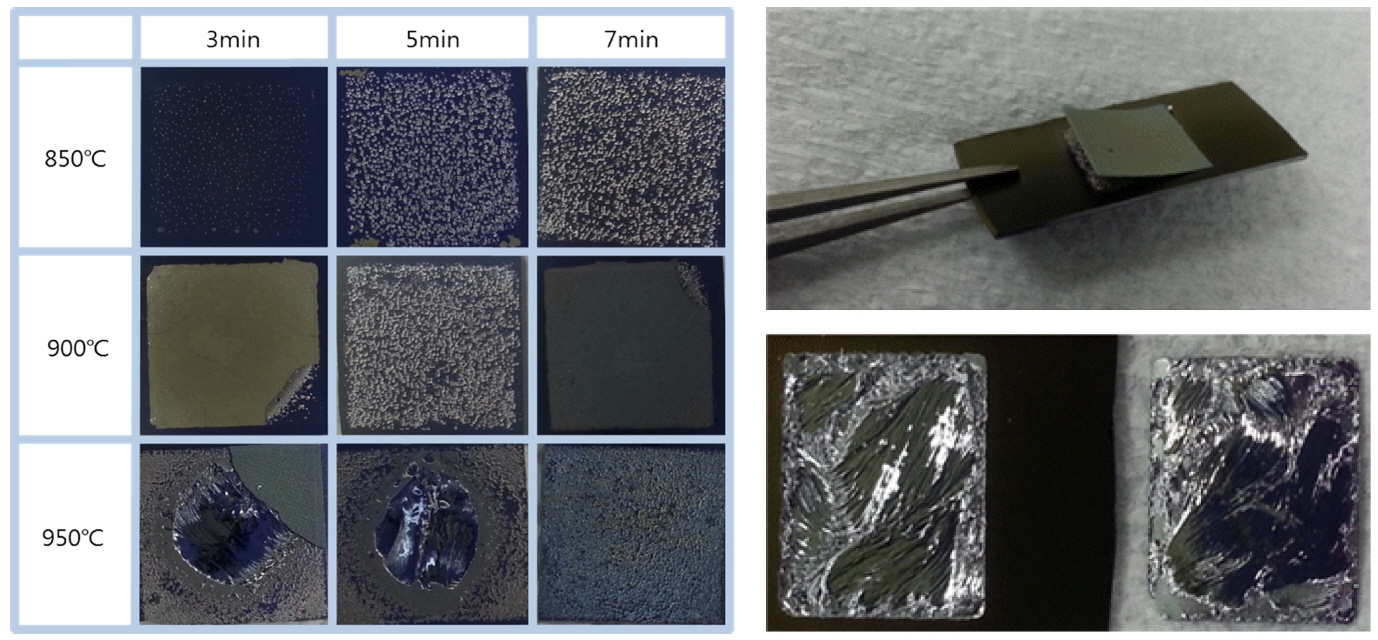

As shown in Fig 3, below 900 °C the Si was not exfoliated. However, Si was partially lifted-off at
950 °C. The lift-off of the Si foil was initiated by the difference in coefficient
of thermal expansion (CTE) of the Si mother wafer and the Al SIL under rapid temperature
change. The difference in the CTE of the Al paste and the Si is quite advantageous
to the stress-induced lift off.
To improve the adhesion of the Al paste layer to the Si mother wafer and to prevent
the Al paste layer from diffusing into the Si mother wafer, a SiNx layer was deposited using a plasma enhanced chemical vapor deposition (PECVD), to
a thickness of approximately 60 nm. While the lift-off was only partially enabled
by the Al paste layer as shown in Fig 3 (left), the Al paste layer and the SiNx enabled the lift-off entirely, as shown in Fig 3 (right). The Si foil thickness was measured to be approximately 58 to 69 μm; it was
not uniform. Although the Al paste layer was enabled lift-off of the Si, the thickness
of the Si foil was not uniform, and the Si foil was fragmented after etching the Al
paste layer. Lift-off did not occur with a Al paste layer thickness of less than 60
μm or an annealing temperature below 950 °C.
The Al paste layer was approximately 50 μm thick per one screen printing, and the
exfoliated Si layer was approximately 60 μm. As the Al paste layer thickness increased,
the thickness of the exfoliated Si increased. After lift-off, 85% H3PO4 solution was used to remove the Al paste layer at 200 °C for 3 h 30 min. After being
dipped into the H3PO4 solution, the Al paste layer and SiNx was removed, and the Si foil was fragmented. As a result, the Al paste layer and
SiNx enabled the Si lift-off entirely on the 10 mm × 10 mm foil but the thickness of the
Si foil was not uniform. After etching the Al paste layer, the Si foil was fragmented.

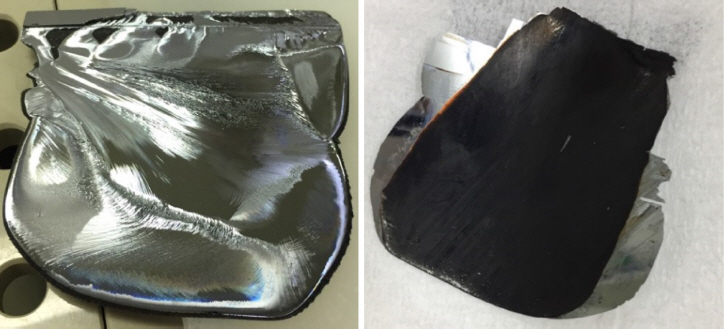

As shown in Fig 4, the epoxy layer with a notch on top were applied to the 5 cm × 5 cm substrate, and
the Si foil was exfoliated. After the lift-off, the epoxy layer was etched using piranha
solution. The Si foil was not uniform in thickness and was fragmented after etching
the epoxy layer. In addition, the epoxy layer was not completely removed.

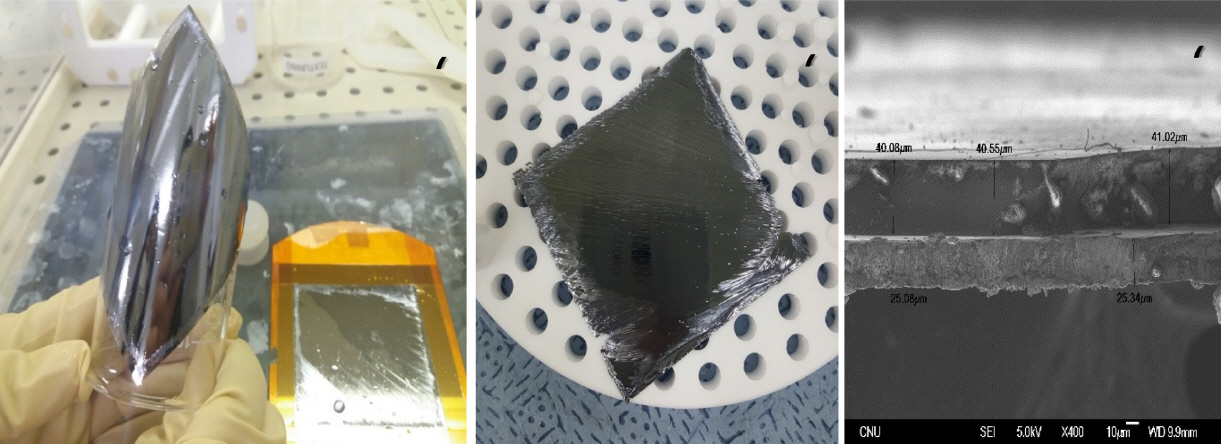

As shown in Fig 5, the Si foil was exfoliated by the electroplated Ni layer and was 10 cm × 10 cm in
size. After the lift-off, the electroplated Ni layer was etched using an HCl and H2O2 solution; the Si foil thickness was approximately 40 μm. The spalled Si was uniform
in thickness and the SIL was removed easily after the lift-off as compared to the
Al paste layer and the epoxy layer.
Thus far, the Al paste, epoxy, and electroplated Ni layer have been compared as the
SIM and all three materials had the ability to induce Si lift-off. The Al paste was
difficult to apply to a large area, and the Si foil was fragmented after the etching
process. The epoxy layer exfoliated the Si foil with an area of 5 cm × 5 cm. However,
the Si foil’s thickness was not uniform; it was also fragmented after the etching
process. The Ni layer was electroplated onto a Ti/Ni seed layer, and the Si foil was
exfoliated with an area of 10 cm × 10 cm and 40 µm thickness. As shown in Fig 6, after the inductively coupled plasma (ICP) texturing for the exfoliated Si wafer
with the epoxy layer was completed, the reflection decreased to 3%, ranging approximately
400 to 1000 nm. The ICP texturing was conducted through international collaborative
research at Fraunhofer-Center für Silizium Photovoltaik (CSP).

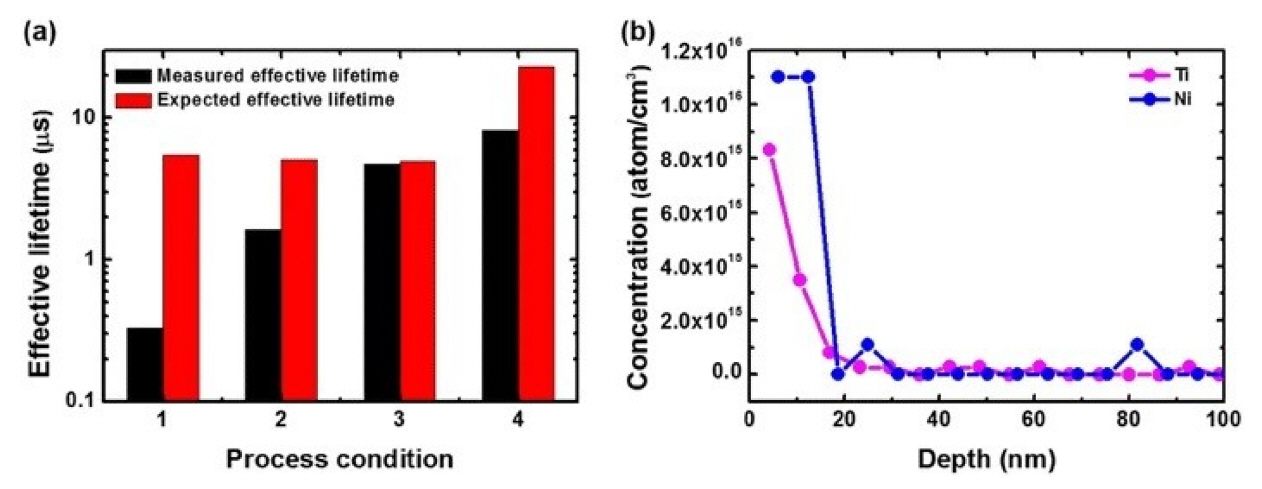

Fig 7 (a) shows that the minority carrier lifetime increased from process conditions 1 to 4.
Process condition 1 was the spalled Si with a thickness of 50 µm, and its effective
lifetime was 0.33 μs. Process condition 2 was the 4 µm etching of the fractured surface
of the spalled Si wafer using a KOH solution before metal removal and the Al2O3 passivation. Its effective lifetime increased to 1.65 μs. Process condition 3 was
approximately 500 nm etching using additional chemical etching and its effective lifetime
was 4.71 μs. Process condition 4 was the post-annealing step of the Al2O3-passivated spalled Si after defect removal and its effective lifetime increased to
8.17 µs. Although the effective lifetime increased from process conditions 1 through
4, the measured effective lifetime was lower than the expected effective lifetime
for each process conditions. It is possible that the slightly lower measured effective
lifetime may have originated from a mechanical defect, Ti and Ni impurities (as shown
in Fig 7 (b)), surface roughness, or the regeneration of micro/nano-cracks in the spalled thin
Si wafers [18].
4. Conclusion
In this study, we investigated Si lift-off methods using Al paste, epoxy, and electroplated
Ni layers. Although the Al paste layer and epoxy layers were successful for the lift-off
of Si foil, the resulting exfoliated Si was not uniform and was easily fragmented
after etching the SIL. Additionally, the Al paste layer and epoxy layers were difficult
to apply to a large area. This study showed that the Al paste layer was completely
removed but the epoxy layer was partially removed. However, the electroplated Ni layer
expanded the spalled area to 100 mm × 100 mm. The thickness of spalled Si was uniform
and the SIL layer of Ti/Ni was completely removed by etching solution. The spalled
Si with a 50 µm thickness was passivated by Al2O3, and its lifetime was increased to 8.17 µs by the Al2O3 passivation and annealing process.
Acknowledgements
This work was supported by Korea Institute of Energy Technology Evaluation and Planning
(KETEP) grant funded by the Korea government (MOTIE) (20183010013880)
REFERENCES
Beesley J. G., Schönholzer U, Slicing 80 micrometer wafers–process parameters in the
lower dimensions,Proc. 22nd Eur. PVSEC, 956-962, (2007)
Van Mierlo F., Jonczyk R., Qian V., Energy Procedia,130, 2 (2017)
M. Fischer, International Technology Roadmap for Photovoltaic (ITRPV) - Results 2018,
pp.1–38, Itrpv. http://www.itrpv.net/, (2019)
Lee H., Kim K., Song O., Korean J. Met. Mater,58, 59 (2019)
Song B. -K., Jung J. -Y., Cho Y. -R., Rha J. -J., Kim J. W., Kim Y. -K., Korean J.
Met. Mater,58, 201 (2020)
Dross F., Milhe A., Robbelein J., Gordon I., Bouchard P. -O., Beaucarne G, Poortmans
J., Stress-Induced Lift-Off Method for kerf-loss-free wafering of ultra-thin (~50
um) crystalline Si wafers,2008 33rd IEEE Photovolatic Spec. Conf, 10.1109/PVSC.2008.4922741,
1-5, (2008)
Mizushima I., Sato T., Taniguchi S., Tsunashima Y., Appl. Phys. Lett,77, 3290 (2000)
Gordon I., Carnel L., Van Gestel D., Beaucarne G., Poortmans J., Prog. Photovoltaics
Res. Appl,15, 575 (2007)
Nast O., Wenham S.R., J. Appl. Phys,88, 124 (2000)
Van Gestel D., Romero M. J., Gordon I., Carnel L., D’Haen J., Beaucarne G., Al-Jassim
M., Poortmans J., Appl. Phys. Lett,90, 92103 (2007)
Henley F., Kang S., Liu Z., Tian L., Wang J., Chow Y. L., Beam-induced wafering technology
for kerf-free thin PV manufacturing, Conf. Rec. IEEE Photovolt. Spec. Conf, 10.1109/PVSC.2009.5411435,
(2009)
Henley F. J., Kerf-free wafering: Technology overview and challenges for thin PV manufacturing,
2010 35th IEEE Photovolt. Spec. Conf. IEEE, 10.1109/PVSC.2010.5614096, (2010)
Masolin A., Vaes J., Dross F., Poortmans J., Mertens R., Thermal curing of crystallographic
defects on a slim-cut silicon foil, Conf. Rec. IEEE Photovolt. Spec. Conf, 10.1109/PVSC.2010.5614096,
2180-2183, (2010)
Bellanger P., Brito M. C., Pera D. M., Costa I., Gaspar G., Martini R., Debucquoy
M., Serra J. M., IEEE J. Photovoltaics,4, 1228 (2014)
Bedell S. W., Shahrjerdi D., Hekmatshoar B., Fogel K., Lauro P. A., Ott J. A., Sosa
N., Sadana D., IEEE J. Photovoltaics,2, 141 (2012)
Niepelt R., Hensena J., Knorr A., Steckenreiter V., Kajari-Schoder S., Brendel R.,
Energy Procedia,55, 570 (2014)
Gordon I., Dross F., Depauw V., Masolin A., Qiu Y., Vaes J., Van Gestel D., Poortmans
J., Sol. Energy Mater. Sol. Cells,95, S2 (2011)
Lee Y. H., Cha H., Choi S., Chang H. S., Jang B., Oh J., Electron. Mater. Lett,14,
363 (2018)
Figures and Table
Fig. 1.
Schematics of Si lift-off process by epoxy.
Fig. 2.
LASER scribing machine (left), SEM image of notches made by laser line scribing for
1000 times and maximum power (10W) (center), and the notch being scribed at the side
of Si.
Fig. 3.
the images of Si lift-off surface with Al paste as the annealing temperature and time
increase.(left) and Si lift-off using Al metal paste/PECVD-SiNx/Si (right)
Fig. 4.
The image after Si lift-off by epoxy (left) and after etching (right).
Fig. 5.
Si lift-off using Ni electroplating. (a) exfoliated Si and mother substrate, (b) Si
after Ni removal, (c) SEM image of Si (~40 um) and Ni (~25um) layer after lift-off.
Fig. 6.
Textured samples using inductively coupled plasma and reflectivity graphs
Fig. 7.
(a) Measured and expected (calculated) effective minority carrier lifetimes of the
fabricated kerf-less Si wafer with Al2O3 passivation, and (b) dynamic SIMS profile of the metal stressor layer removed from
the side of the fabricated kerf-less Si wafer. Reproduced with permission from Reference
[18].
Table 1.
Si lift-off processes for Al paste, epoxy, and electroplated Ni layers.
|
|
Al metal paste
|
Epoxy
|
Ni electroplating
|
|
1
|
Substrate cutting |
Substrate cutting |
Substrate cutting |
|
- 10 mm × 10 mm
|
- 50 mm × 50 mm
|
- 100 mm × 100 mm
|
|
2
|
cleaning |
cleaning |
Ti(20nm/Ni(100nm) seed layer |
|
- HF dip
|
- Piranha solution
|
- e-beam
|
|
3
|
Screen printing |
Stirring & curing |
Electrode |
|
- Al paste
|
- epoxy : hardener (2 : 1)
|
- Cu tape
|
|
4
|
Drying |
Laser |
Pre-cleaning |
|
- @ 150℃
|
- notch
|
- HCl 10% solution for 1min
|
|
5
|
Rapid Thermal Process(RTP) |
Applying epoxy and drying
|
Ni electroplating |
|
- 850 ~ 950℃
|
- Ni 20~30 µm
|
|
6
|
Air cooling & Lift-off
|
Lift-off in LN2 |
Lift-off in DI water
|
|
7
|
Al metal layer removal
|
Epoxy removal
|
Ni layer removal
|
